Transmission Shift Switch Circuit
Transmission Shift Switch CircuitCIRCUIT DESCRIPTION
When shifting the shift lever in M position, using the transmission shift switch, it is possible to shift in 2 - 5 positions.
Pressing "Up switch" once shifts up 1 position, "Down switch" once shifts down 1 position respectively.

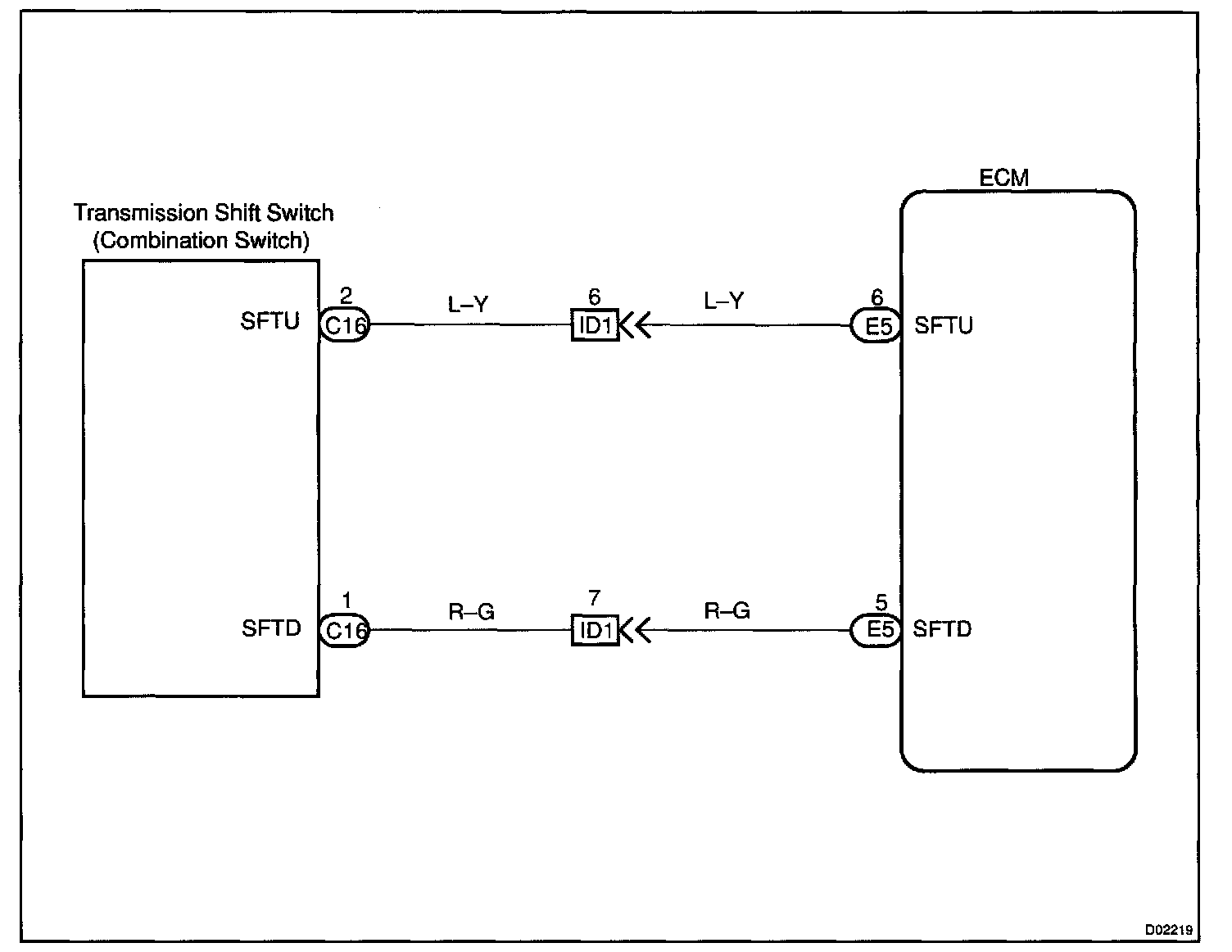

Wiring Diagram:
Step 1 - 2:
Step 3 - 4:
Step 5:

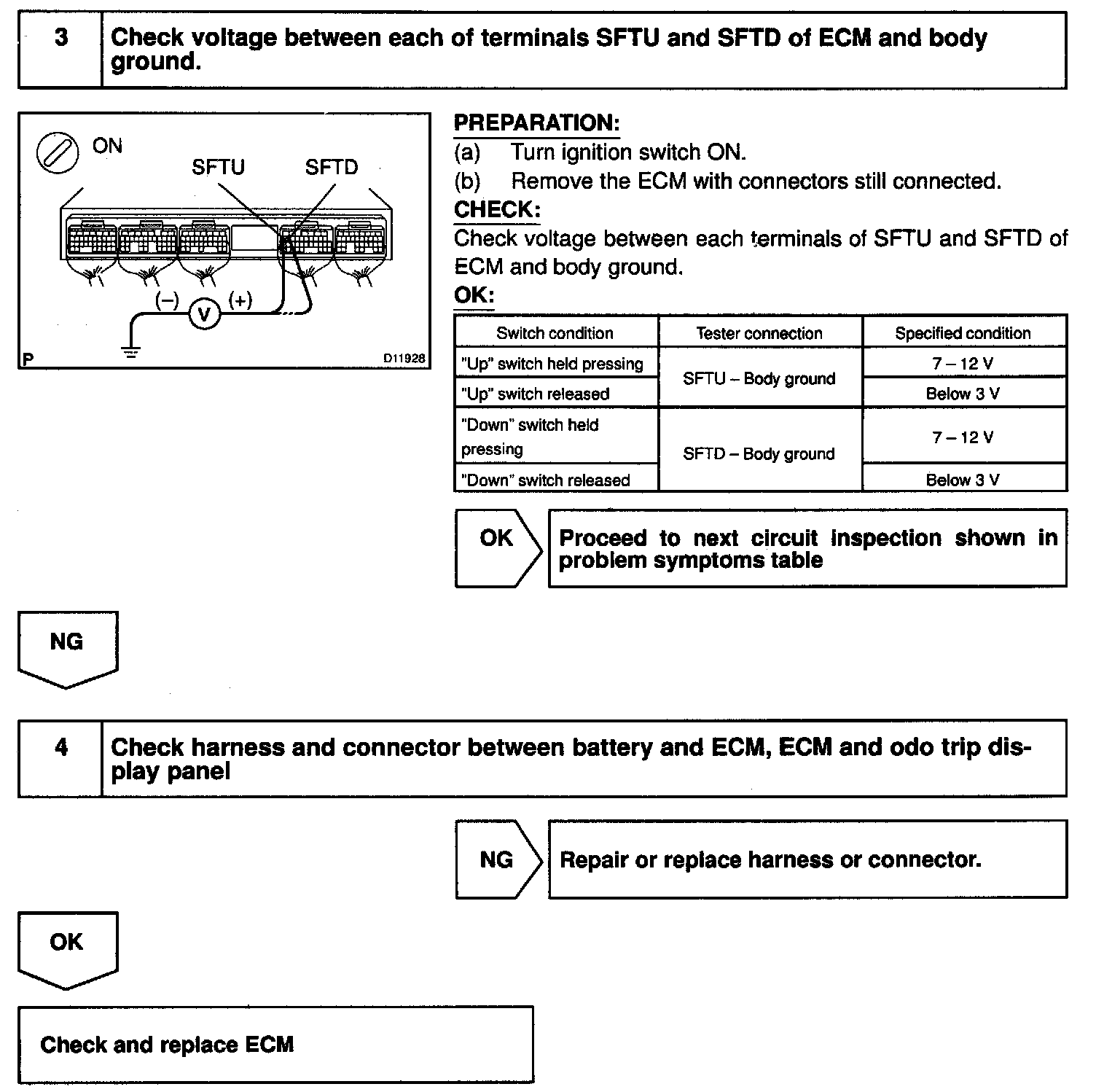

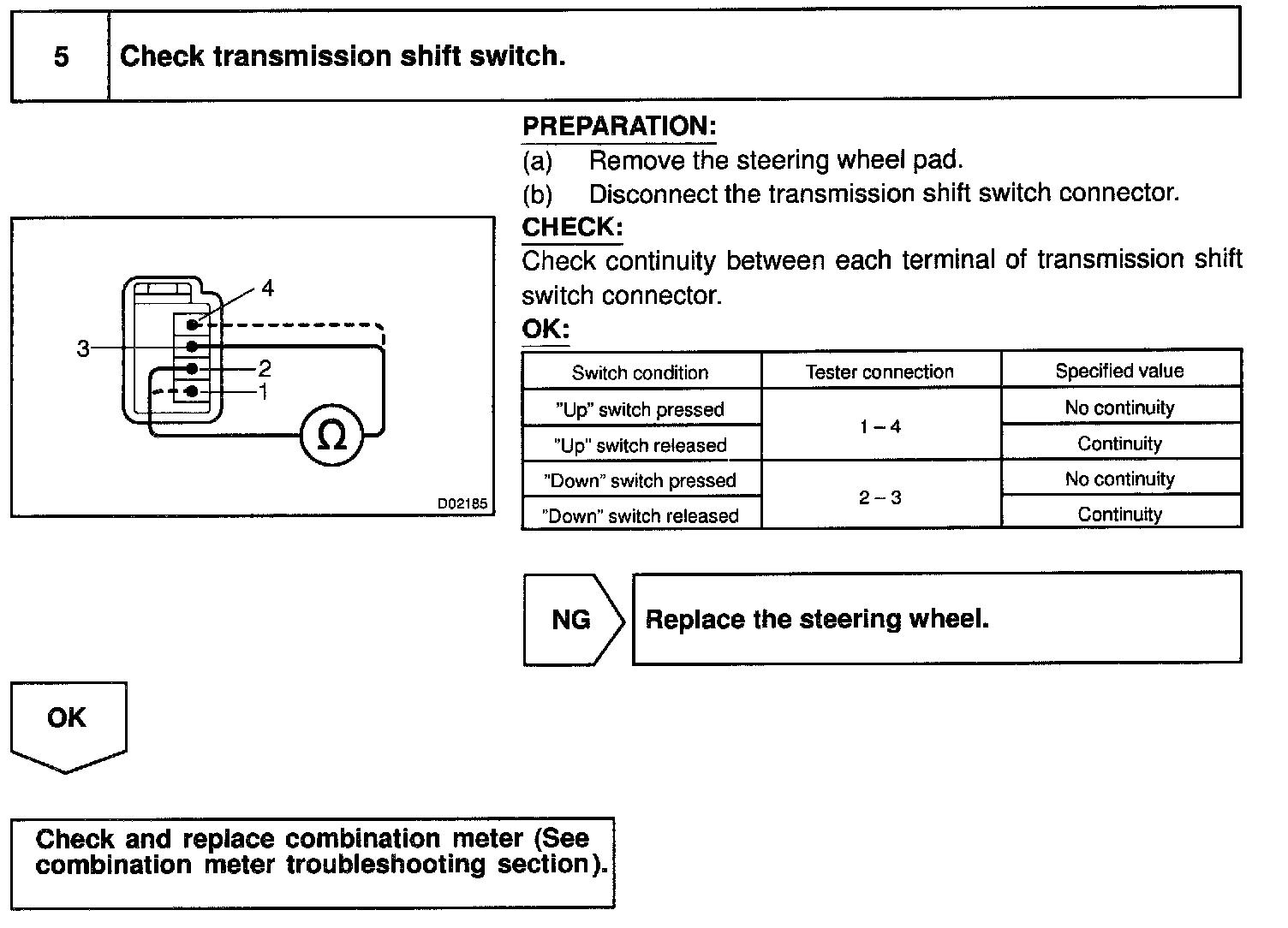

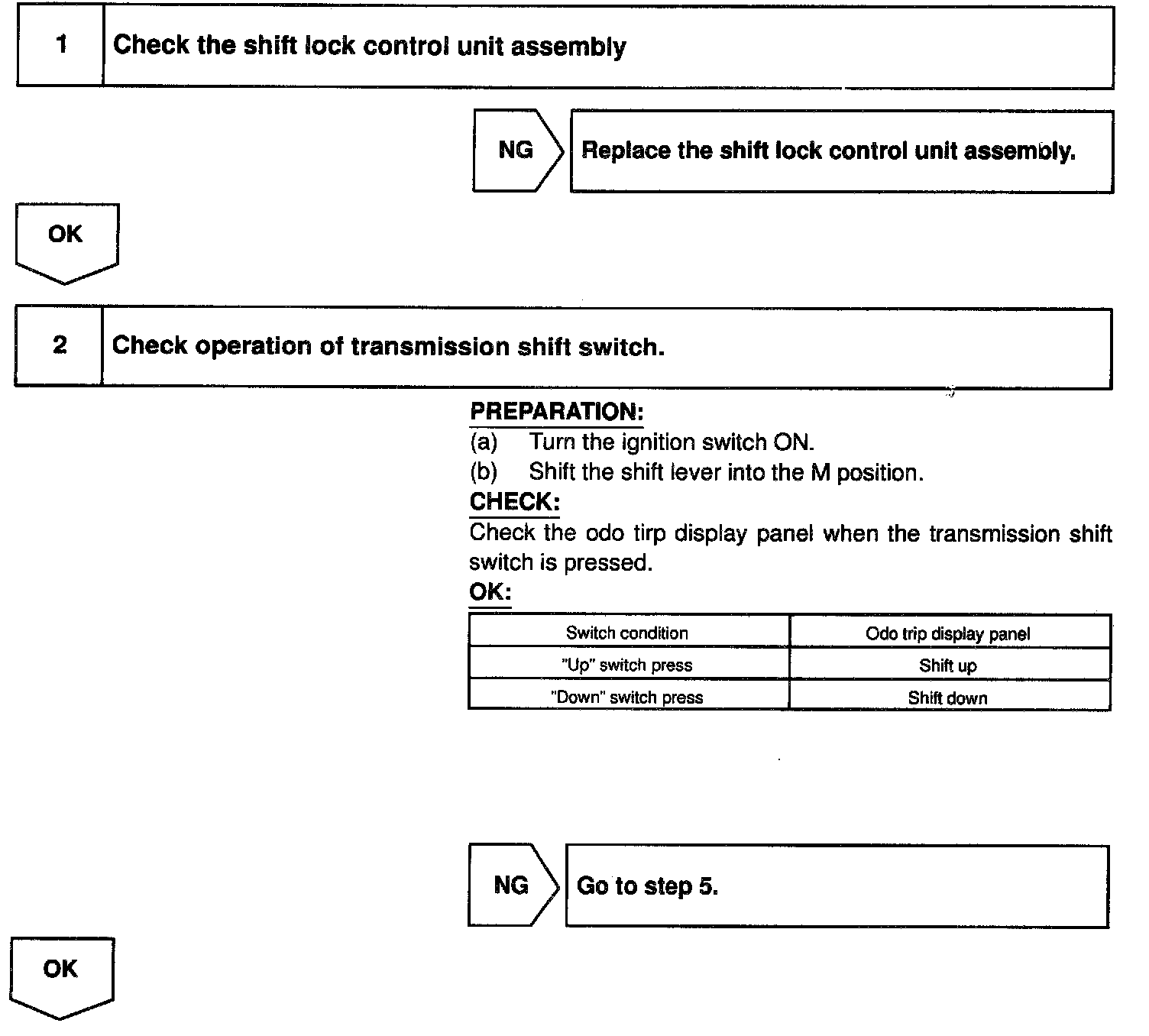

INSPECTION PROCEDURE
