Speed Sensor, Rear

REMOVAL
1. DISCONNECT SPEED SENSOR CONNECTOR
a. Remove the seat cushion and 2 headrests.
b. Remove the 4 bolts, 2 nuts and seatback.
Torque: 18 Nm (185 kgf-cm, 13 inch lbs.)

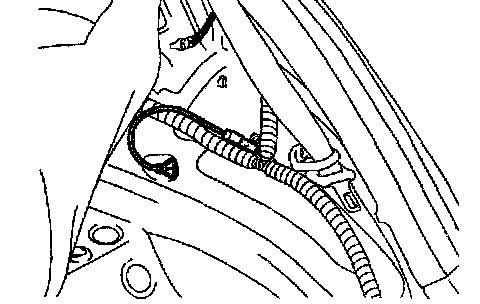

c. Disconnect the speed sensor connector and pull out the sensor wire harness with the grommet.
2. REMOVE SPEED SENSOR
a. Remove the clamp bolt holding the sensor wire harness to the suspension arm No. 1.
Torque: 5.0 Nm (51 kgf-cm, 44 inch lbs.)
b. Remove the clamp nut holding the sensor wire harness to the body.
Torque: 5.5 Nm (56 kgf-cm, 49 in. lbs.)

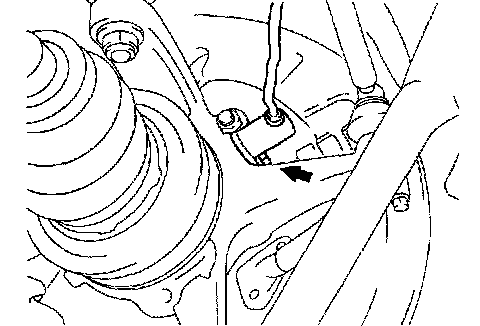

c. Remove the sensor installation bolt and speed sensor from the axle carrier.
Torque: 8.0 Nm (82 kgf-cm, 71 inch lbs.)

INSTALLATION
Installation is in the reverse order of removal. After installation, check speed sensor signal.
