Symptom Related Diagnostic Procedures

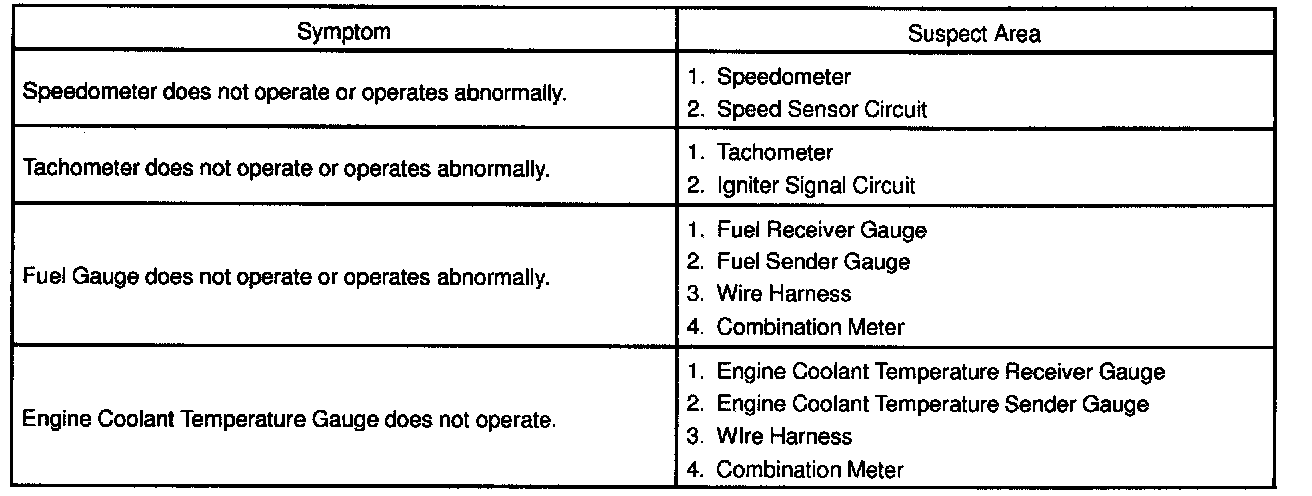

Problem Symptoms Table - Gauge:

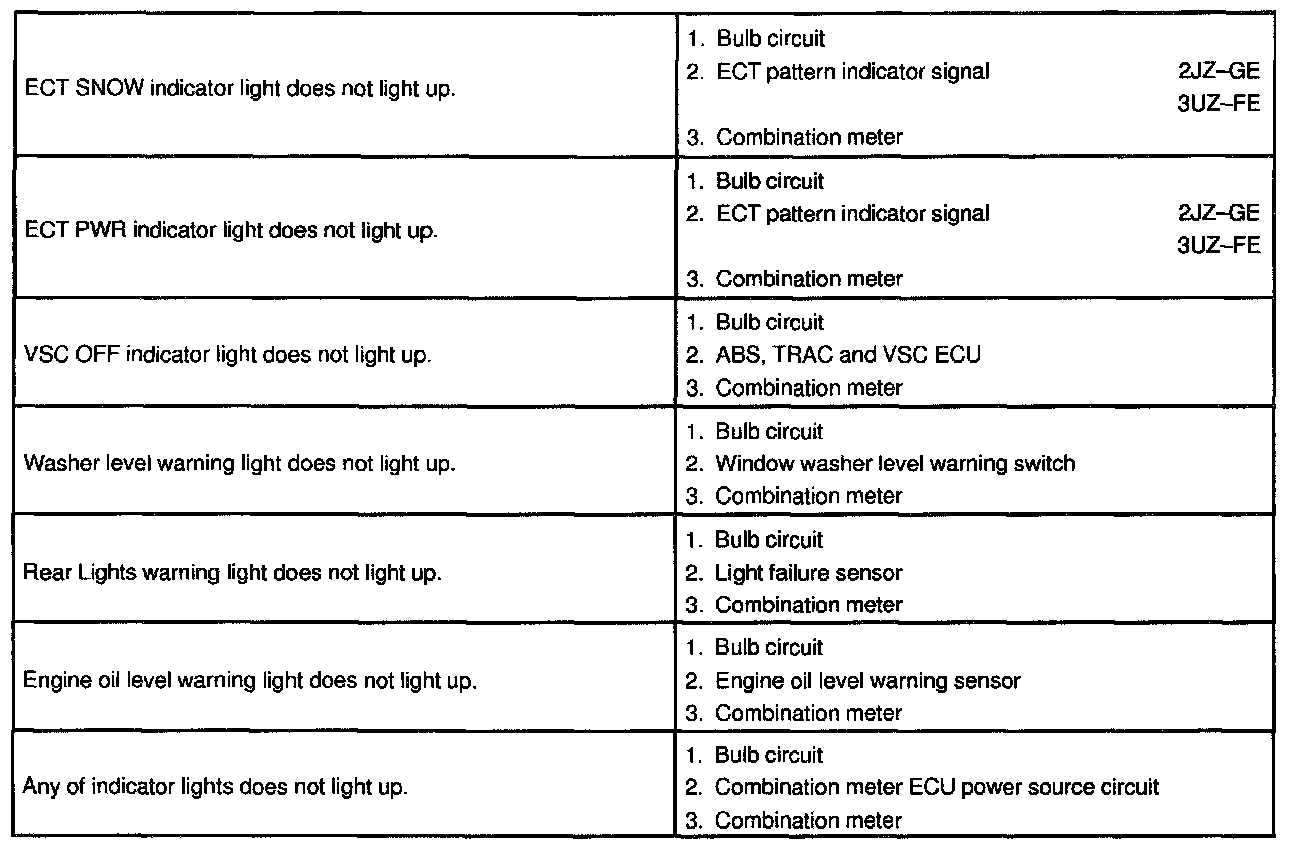

Problem Symptoms Table - Indicator Light And Warning Light Part 1:

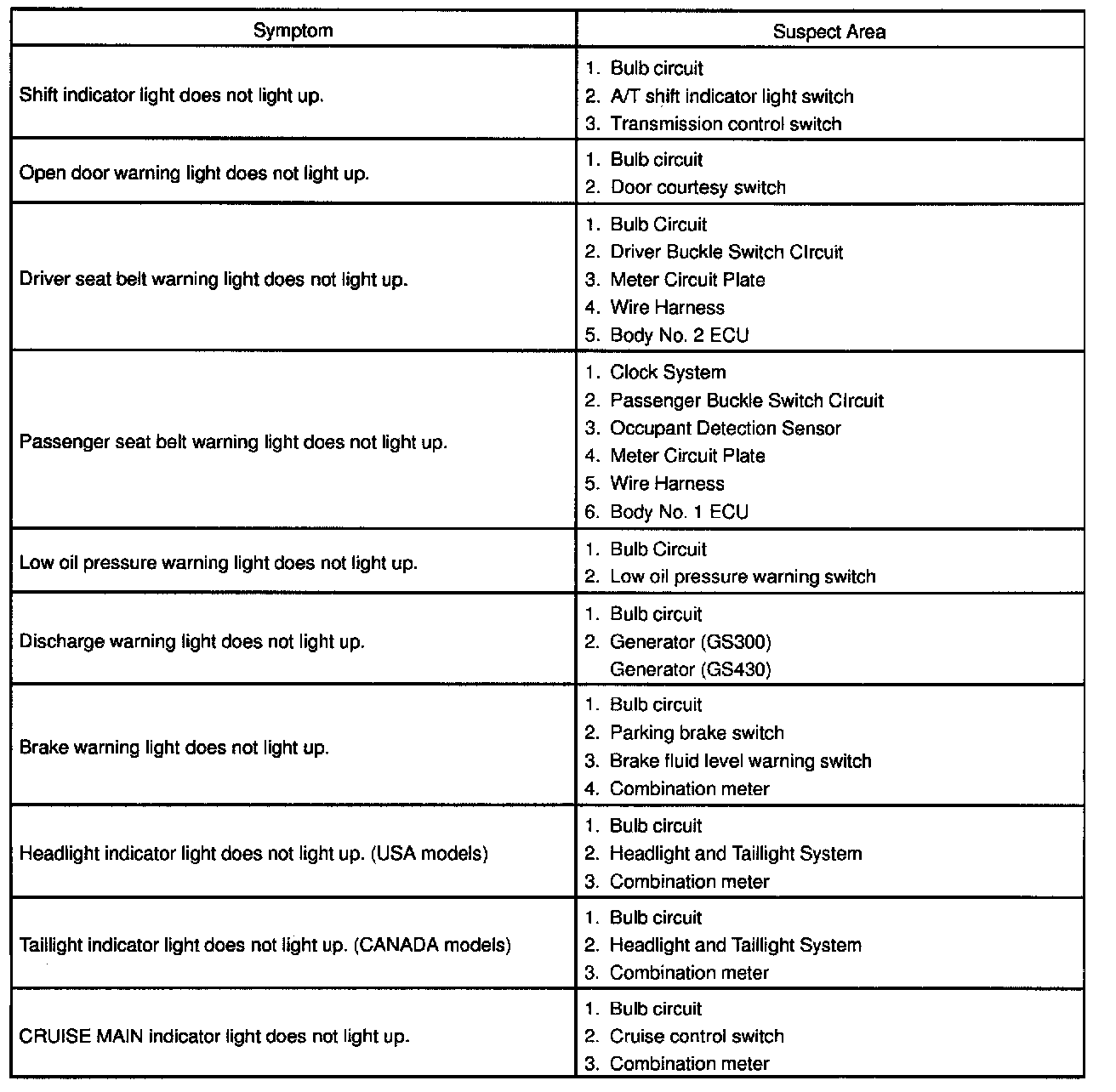

Problem Symptoms Table - Indicator Light And Warning Light Part 2:
