Fuel Gauge

Fuel gauge

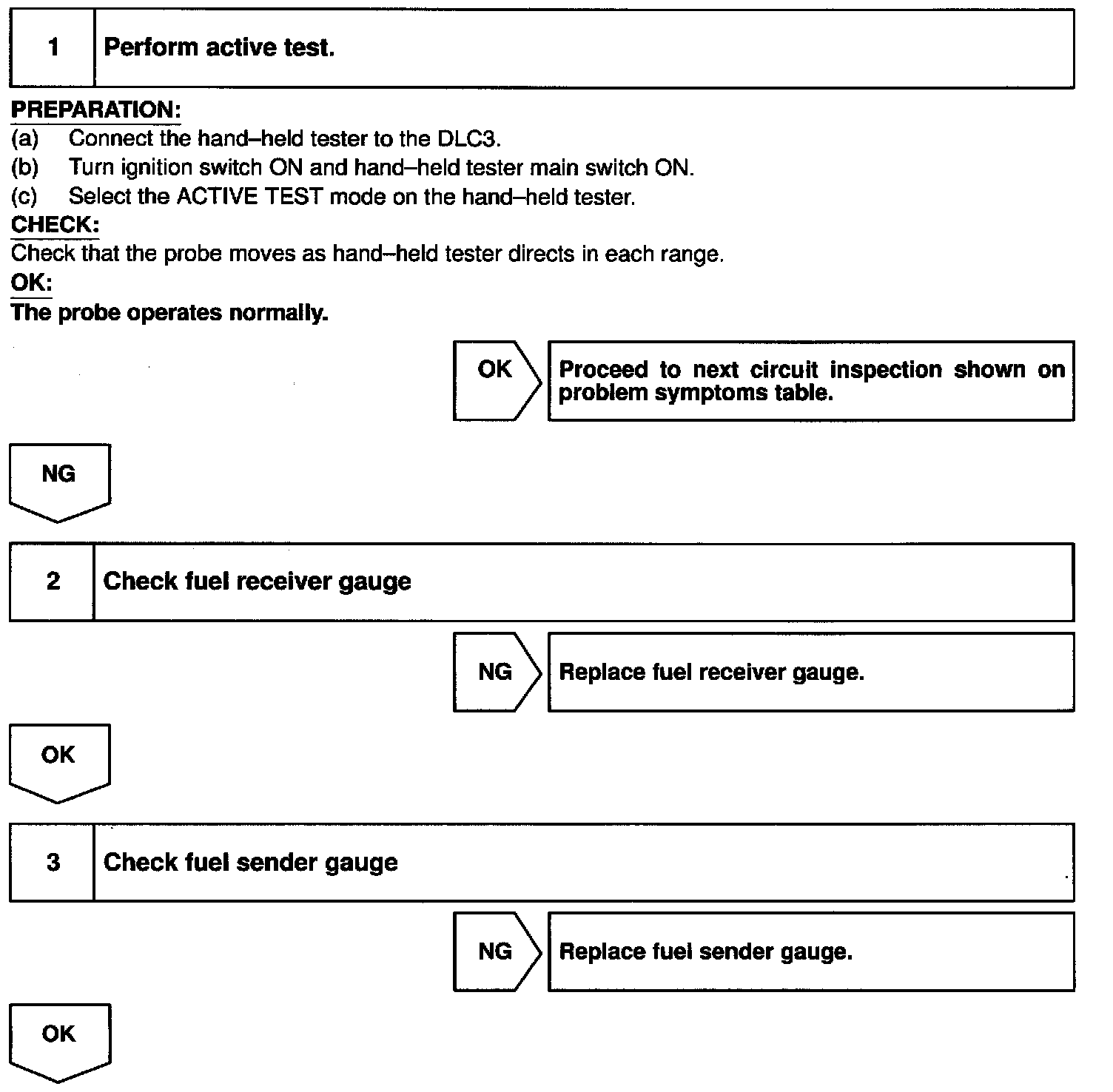

Step 1 - 3:

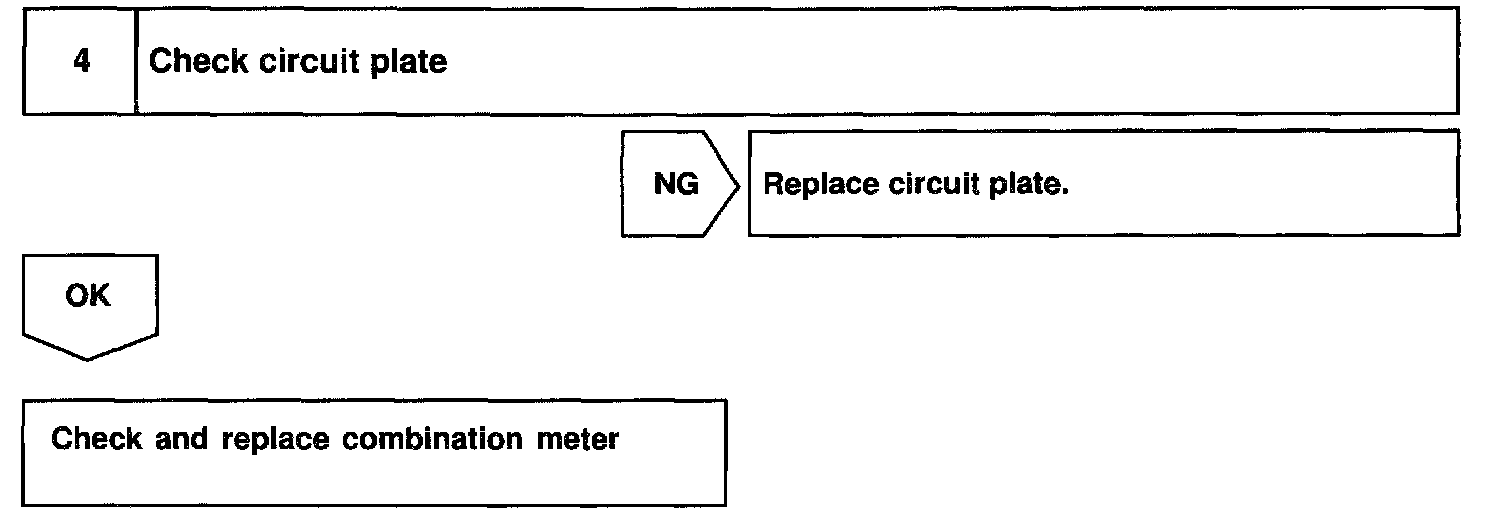

Step 4:




INSPECTION PROCEDURE

HINT: If the hand-held tester is not available, begin with STEP 2.
