Bulb Circuit

Bulb Circuit

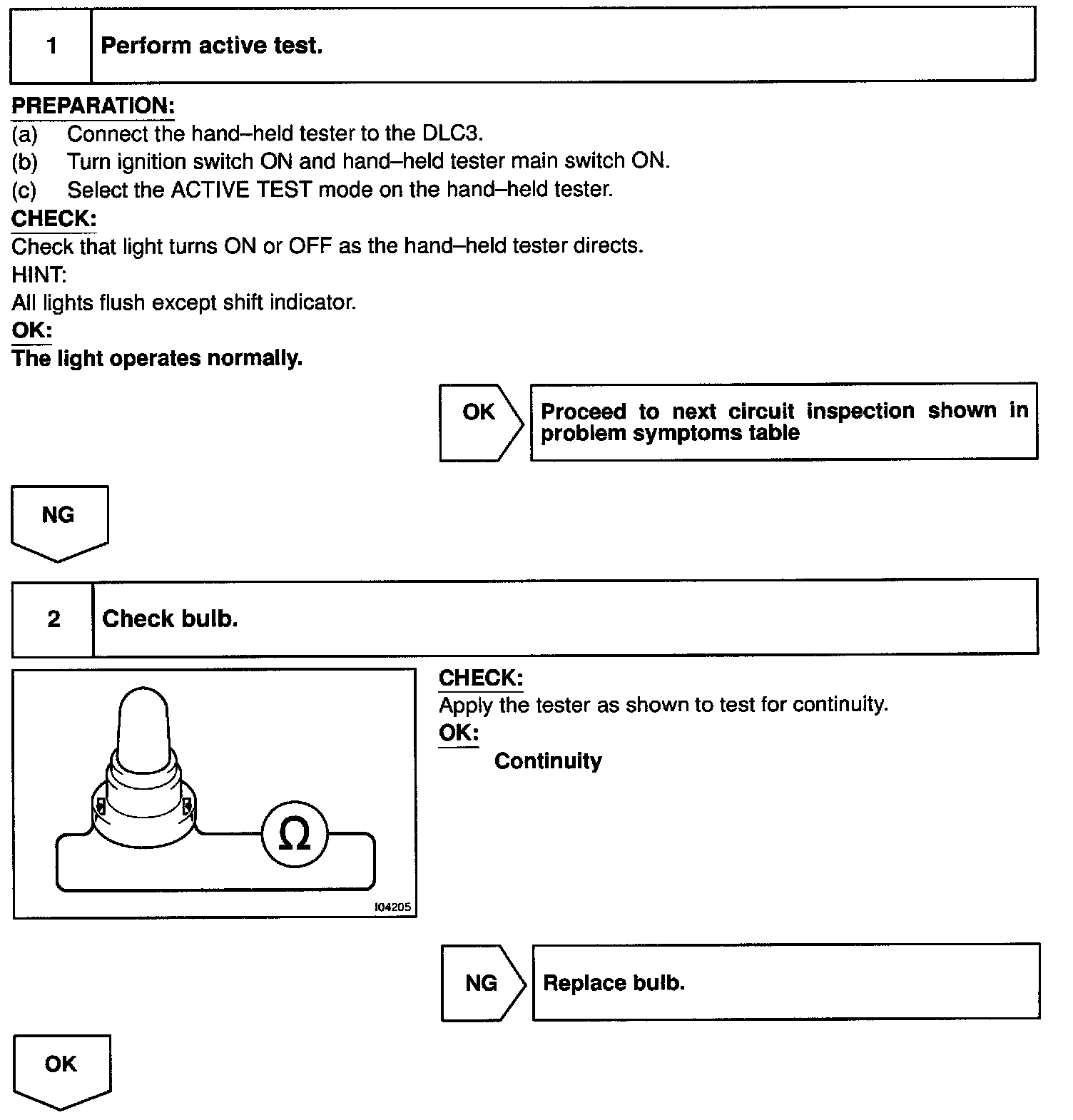

Step 1 - 2:

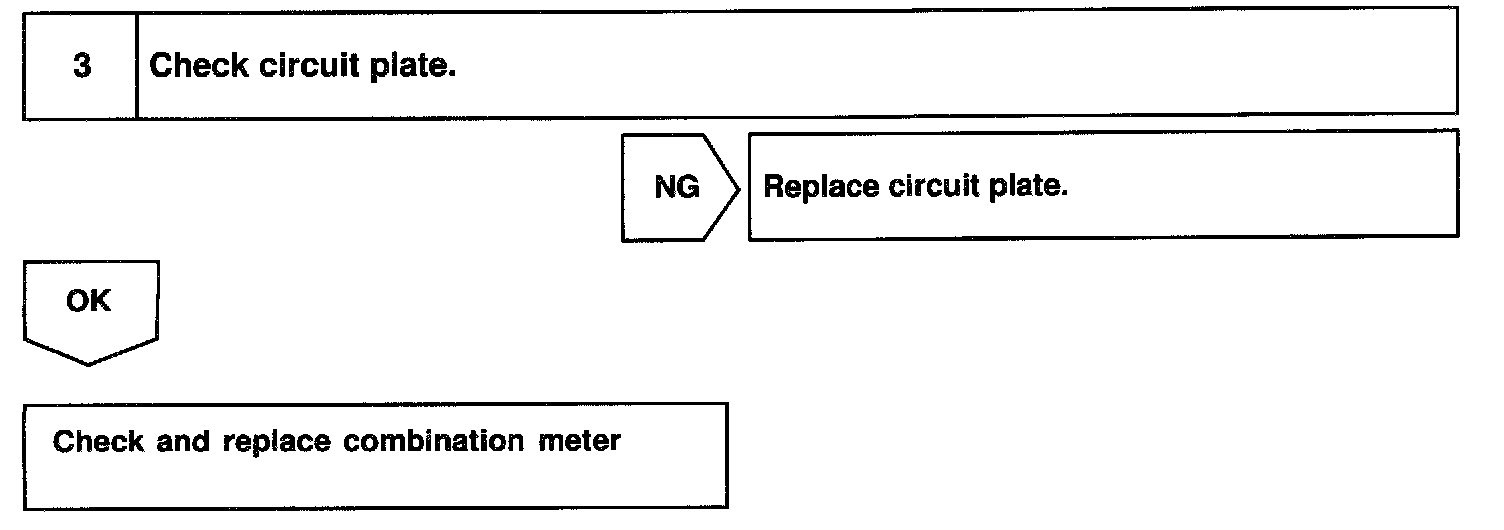

Step 3:

INSPECTION PROCEDURE

HINT: If there is not the hand-held tester, begin with STEP 2.
