Engine Compartment

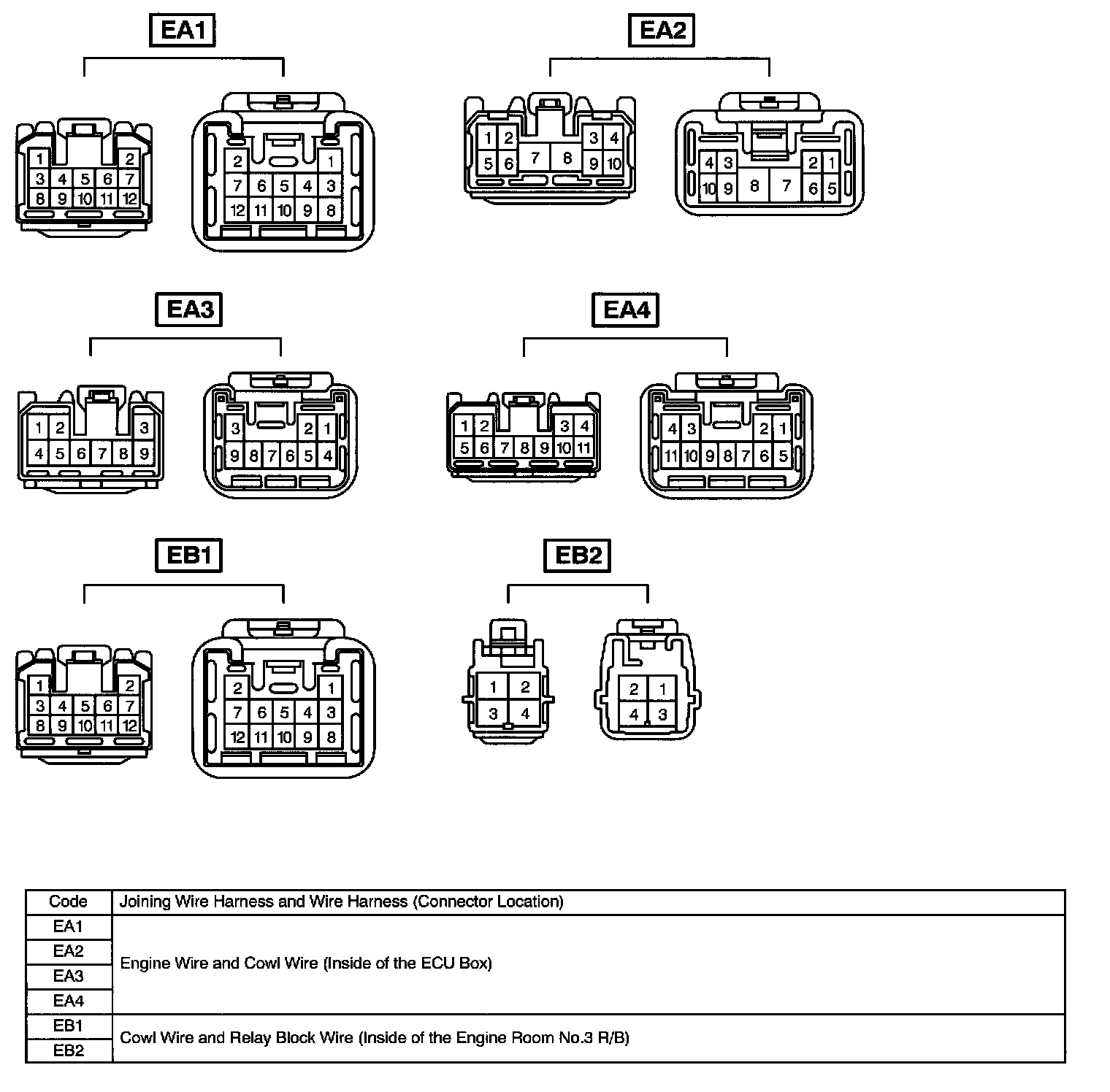

Under Hood Wire Harness To Wire Harness Connectors (EA1 - EA4, EB1 - EB2) (2JZ-GE):
