Instrument Panel / Center Console
Instrument Panel / Center Console

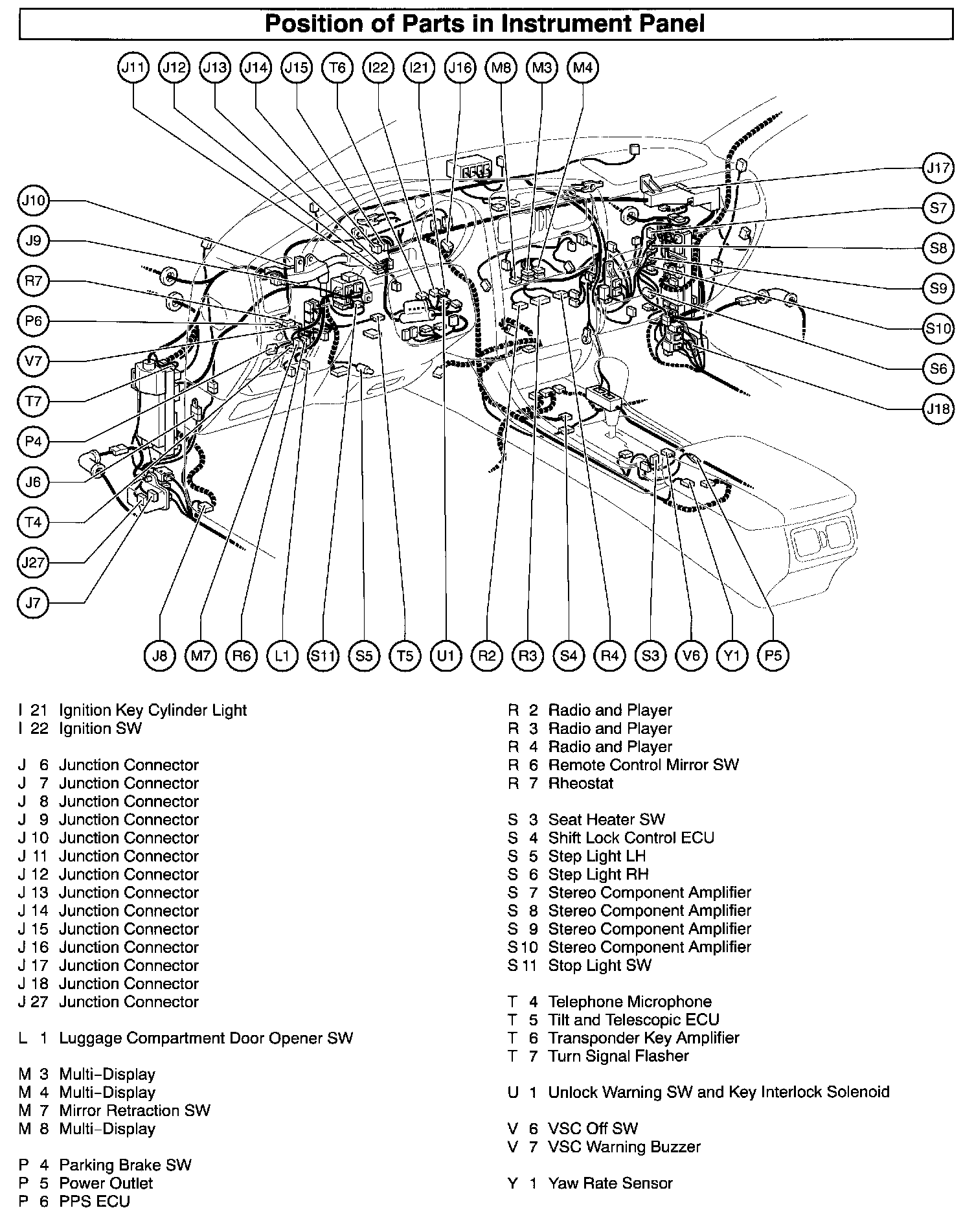

Position Of Parts In Instrument Panel Part 1:

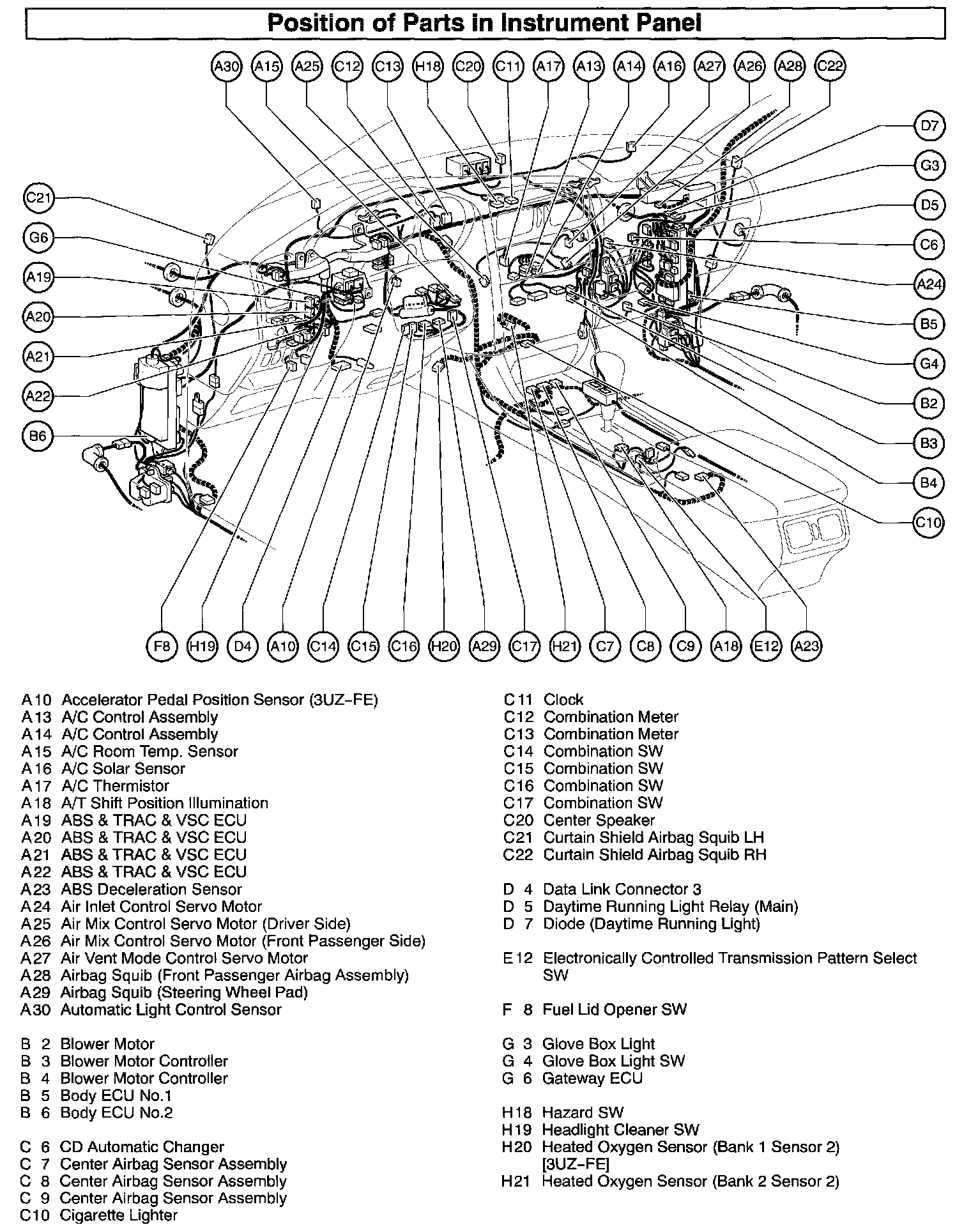

Position Of Parts In Instrument Panel Part 2:
