Removal and Installation

REMOVAL

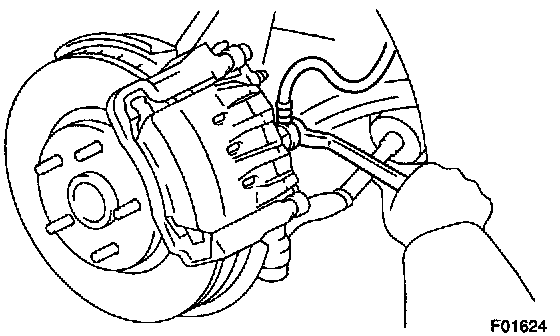

1. DISCONNECT FLEXIBLE HOSE
Remove the union bolt and 2 gaskets from the caliper, then disconnect the flexible hose from the caliper. Use a container to catch brake fluid as it drains out.
Torque: 30 Nm (310 kgf-cm, 22 ft. lbs.)

HINT: At the time of installation, install the flexible hose lock securely in the lock hole in the caliper.

2. REMOVE CALIPER
a. Hold the sliding pin and loosen the 2 installation bolts.
Torque: 34 Nm (350 kgf-cm, 25 ft. lbs.)
b. Remove the 2 installation bolts.
c. Remove the caliper from the torque plate.
3. REMOVE 2 ANTI-SQUEAL SPRINGS
4. REMOVE 2 BRAKE PADS WITH 4 ANTI-SQUEAL SHIMS
5. REMOVE 4 PAD SUPPORT PLATES

INSTALLATION
Installation is in the reverse order of removal.

HINT:
- After installation, fill the brake reservoir with brake fluid and bleed brake system.
- Check for leaks.
