Displaying & Reading Trouble Codes

NOTE: This is the only information provided by the manufacturer for reading diagnostic trouble codes for this system.

PRE-CHECK

1. DIAGNOSIS SYSTEM




a. Check the warning lights and buzzer.
1. Release parking brake pedal.

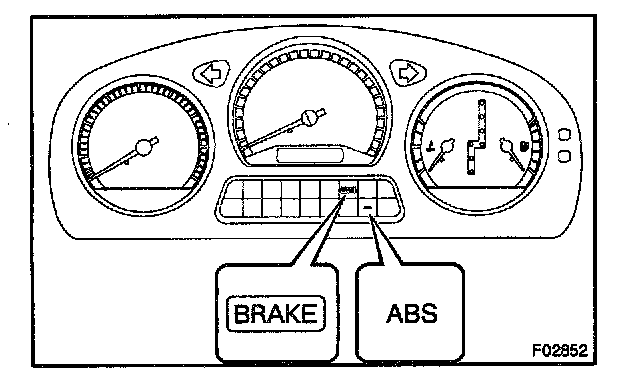

2. When the ignition switch is turned ON, check that the ABS and BRAKE warning lights goes on for 3 seconds.
3. When depressing the brake pedal repeatedly it may turn on the warning lights and buzzer.

HINT: If the indicator check result is not normal, proceed to troubleshooting for the ABS and BRAKE warning lights circuit.




b. In case of not using LEXUS hand-held tester:
Check the DTC.

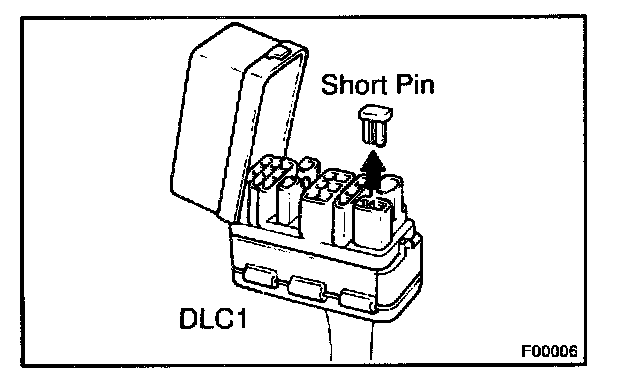

1. Disconnect the short pin from DLC1.

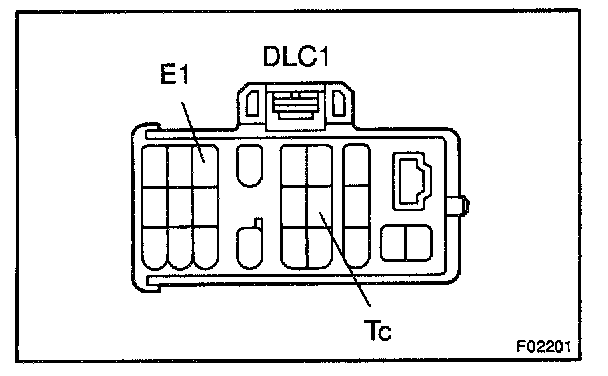

2. Using SST connect terminals Tc and E1 of DLC1.
SST 09843-18020
3. Turn the ignition switch ON.

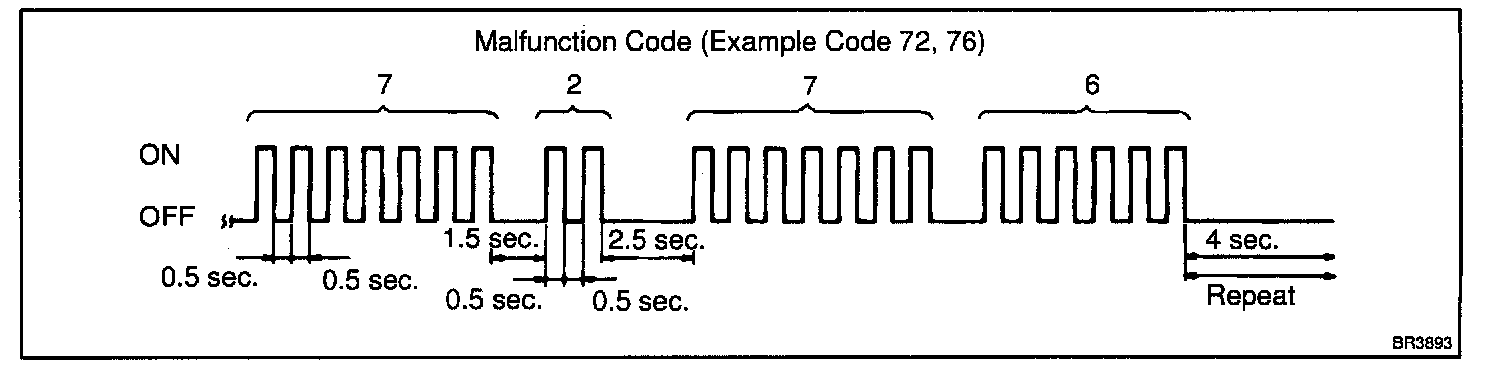

4. Read the DTC from the ABS warning light on the combination meter.

HINT:
- If no code appears, inspect the diagnostic circuit or ABS warning light circuit.

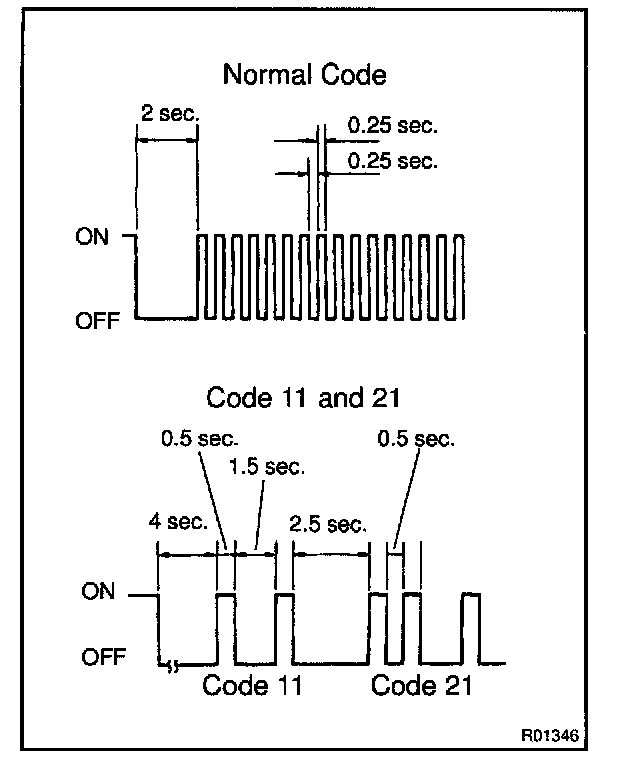

- As an example, the blinking patterns for normal code and codes 11 and 21 are shown on the left.

5. Codes are explained in the code table.
6. After completing the check, disconnect terminals Tc and E1 of DLC1 and turn off the display.
If 2 or more malfunctions are indicated at the same time the lowest numbered DTC will be displayed 1st.




c. In case of using LEXUS hand-held tester:
Check the DTC.

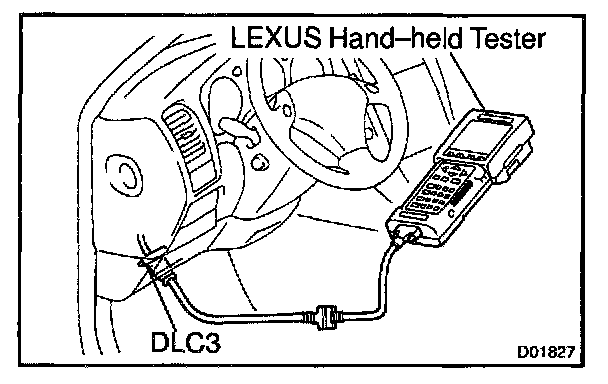

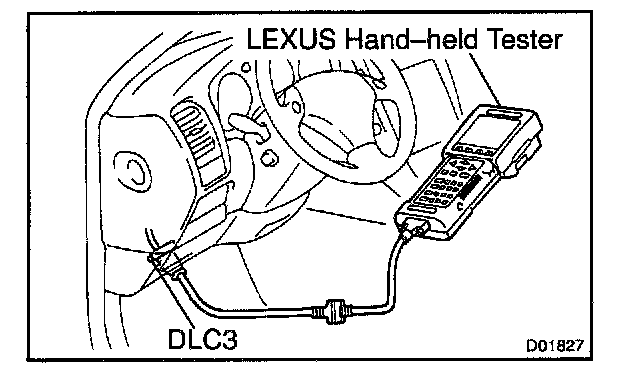

1. Hook up the LEXUS hand-held tester to the DLC3.
2. Read the DTC by following the prompts on the tester screen.

HINT: Please refer to the LEXUS hand-held tester operator's manual for further details.




d. In case of not using LEXUS hand-held tester:
Clear the DTC.
1. Using SST, connect terminals Tc and E1 of DLC1 and remove the short pin from DLC1.
SST 09843-18020
2. Turn the ignition switch ON.

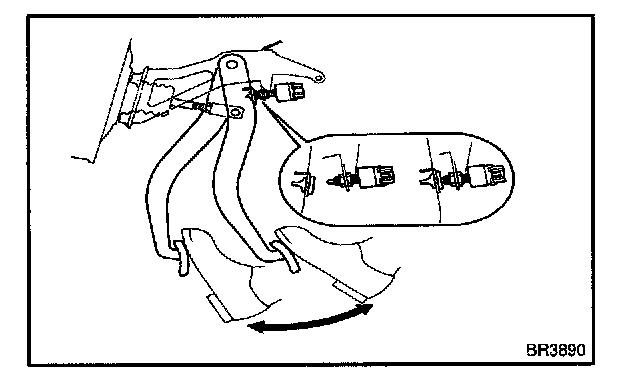

3. Clear the DTC stored in ECU by depressing the brake pedal 8 or more times within 5 seconds.
4. Check that the warning light shows the normal code.
5. Remove the SST from the terminals of DLC1.
SST 09843-18020

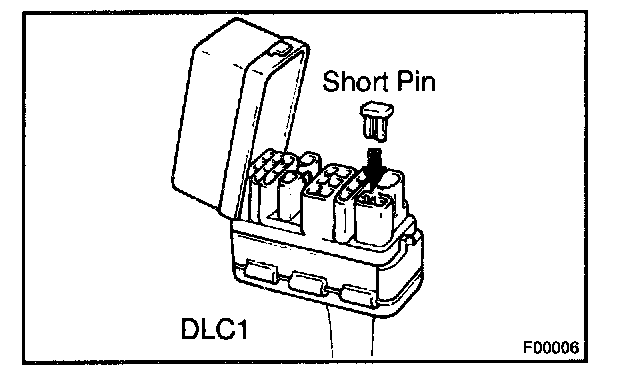

6. Connect the short pin to DLC1.

HINT: Disconnecting the battery cable during repairs will not erase the DTC in the ECU.




e. In case of using LEXUS hand-held tester:
Clear the DTC.

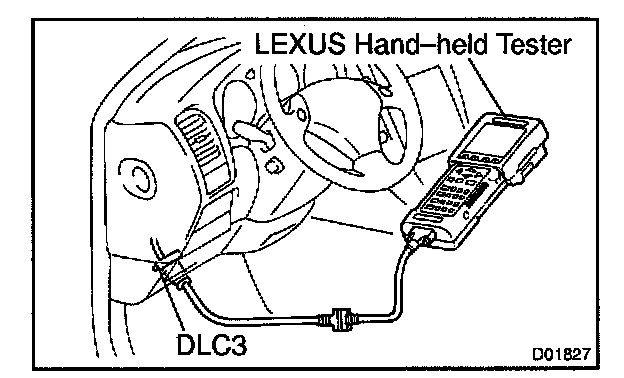

1. Hook up the LEXUS hand-held tester to the DLC3.
2. Turn the ignition switch ON.
3. Operate the LEXUS hand-held tester to erase the codes.




f. (Reference):

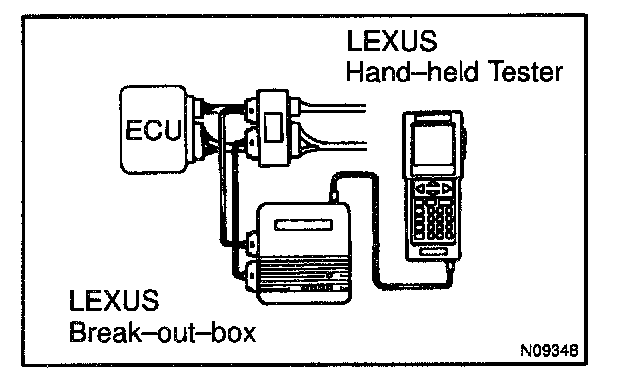

Using LEXUS break-out-box and LEXUS hand-held tester, measure the ECU terminal values.
1. Turn the ignition switch OFF.
2. Hook up the LEXUS break-out-box and LEXUS hand-held tester to the vehicle.
3. Turn the ignition switch ON.
4. Read the ECU input/output values by following the prompts on the tester screen.

HINT:
- LEXUS hand-held tester has a "Snapshot" function. This records the measured values and is effective in the diagnosis of intermittent problems.
- Please refer to the LEXUS hand-held tester/LEXUS break-out-box operator's manual for further details.




2. SENSOR SIGNAL CHECK (TEST MODE)

HINT: If the ignition switch is turned from ON to ACC or LOCK during test mode, DTC will be erased.

a. In case of not using LEXUS hand-held tester:
Check the sensor signal.
1. Turn the ignition switch OFF.

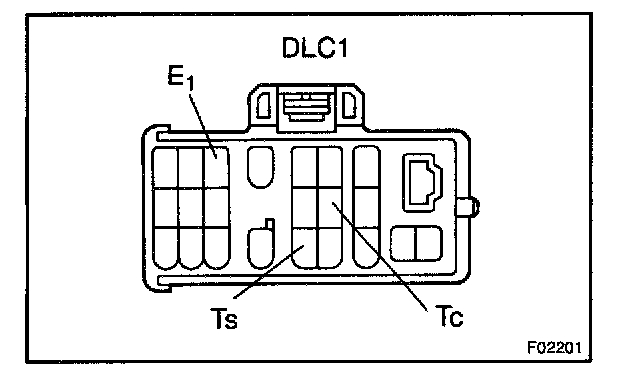

2. Using SST, connect terminals Ts and E1 of DLC1.
SST 09843-18020
3. Start the engine.




4. Check that the ABS warning light blinks.

HINT: If the ABS warning light does not blink, inspect the ABS warning light circuit and Ts circuit.

5. Keep the vehicle in the stationary condition on the flat place for 1 sec. or more.
6. Leaving the vehicle in the stationary condition and the brake pedal in free condition for 1 sec. or more, continue to depress the brake pedal with 98 N (10 kgf, 22 lbf) of force or more for 1 sec. or more.
7. Leaving the vehicle in the stationary condition, depress the brake pedal with 980 N (100 kgf, 221 lbf) of force or more quickly.

HINT: At this time, the ABS warning light comes on for 3 sec.

8. Drive vehicle straight forward.
When driving the vehicle with the speed faster than 45 km/h (28 mph) for several seconds, check that the ABS warning light comes off.

HINT: There is a case that the sensor check is not completed if the vehicle has its rear wheels spun or its steering wheel steered during this check.

9. Stop the vehicle.
10. Using SST, connect terminals Tc and E1 of DLC1.
SST 09843-1802
11. Read the number of blinks of the ABS warning light.

HINT:
- See the list of DTC on step (C).

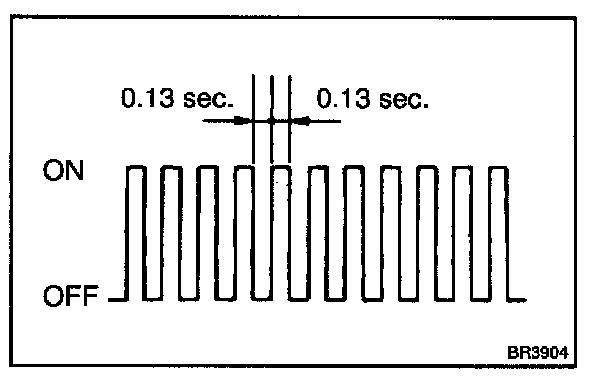

- If every sensor is normal, a normal code is output (A cycle of 0.25 sec. ON and 0.25 sec. OFF is repeated).
- If 2 or more malfunctions are indicated at the same time, the lowest numbered code will be displayed 1st.




12. After doing the check, disconnect terminals of DLC1 and turn the ignition switch OFF.




b. In case of using LEXUS hand-held tester:
Check the sensor signal.
1. Hook up the LEXUS hand-held tester to the DLC3.
2. Do step (3) to (9).
3. Read the DTC by following the prompts on the tester screen.

HINT: Please refer to the LEXUS hand-held tester operator's manual for further details.

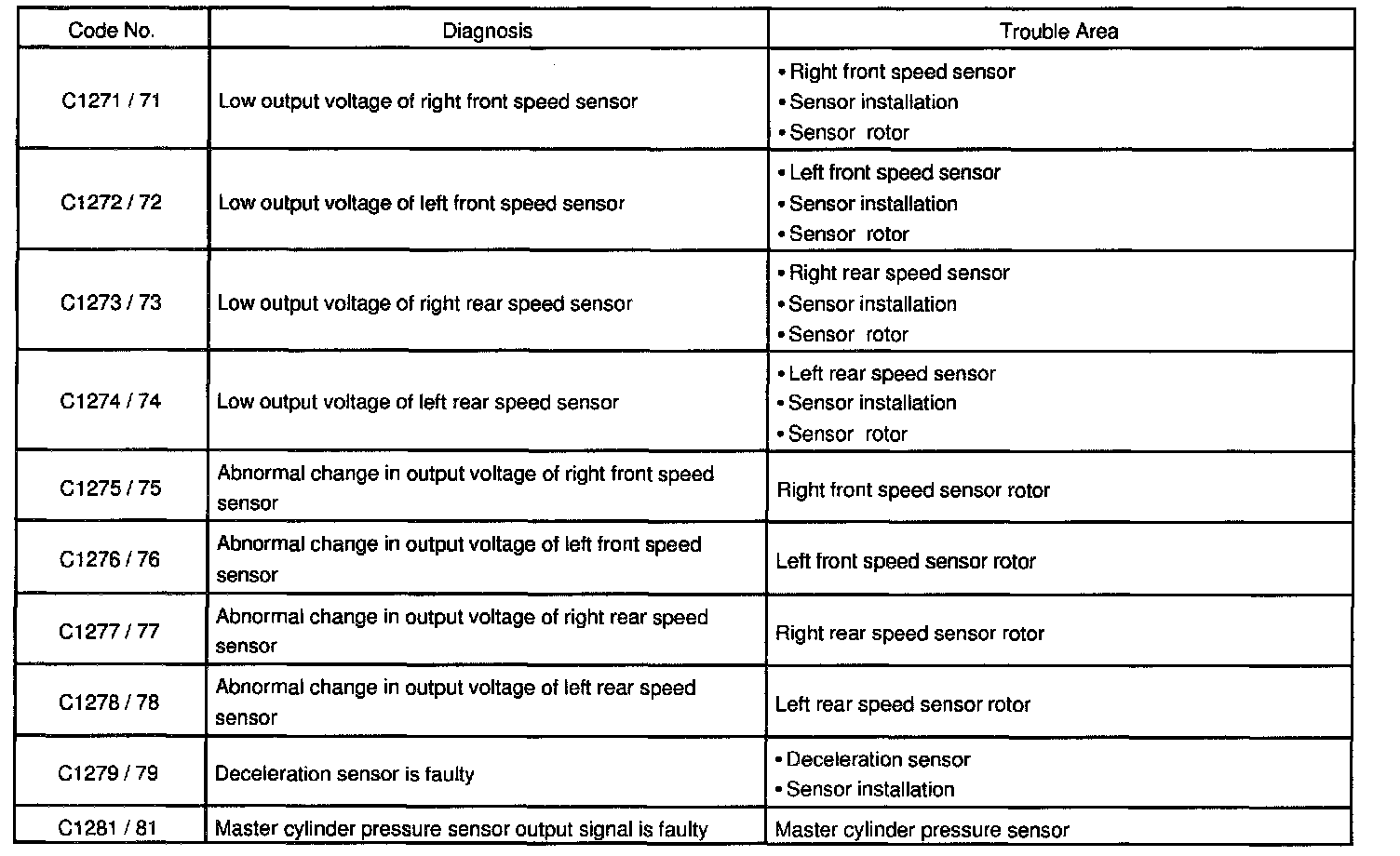

C1271 - C1281:

c. Check the DTC of the sensor function.

3. DECELERATION SENSOR OPERATION DIAGNOSIS SYSTEM

CAUTION: While checking the deceleration sensor operating diagnosis system, ABS does not work and brake system works as a conventional brake system.




4. DECELERATION SENSOR CHECK
a. Connect 3 dry batteries of 1.5 V in series.
b. Connect VGS terminal to the batteries' positive (+) terminal, and GGND terminal to the batteries' negative (-) terminal, apply about 4.5 V between VGS and GGND terminals.

NOTE: Do not apply voltage of 6 V or more to terminals VGS and GGND.




c. Check the output voltage of GL1 and GL2 terminals.

HINT:
- If the sensor is tilted too much it may show the wrong value.
- If dropped, the sensor should be replaced with a new one.
- The sensor removed from the vehicle should not be placed upside down.
