Brake Warning Buzzer Circuit

BRAKE Warning Buzzer Circuit

CIRCUIT DESCRIPTION
The BRAKE warning buzzer sounds while the accumulator pressure is abnormally low, an abnormality causing low fluid pressure occurs or VSC is activated.

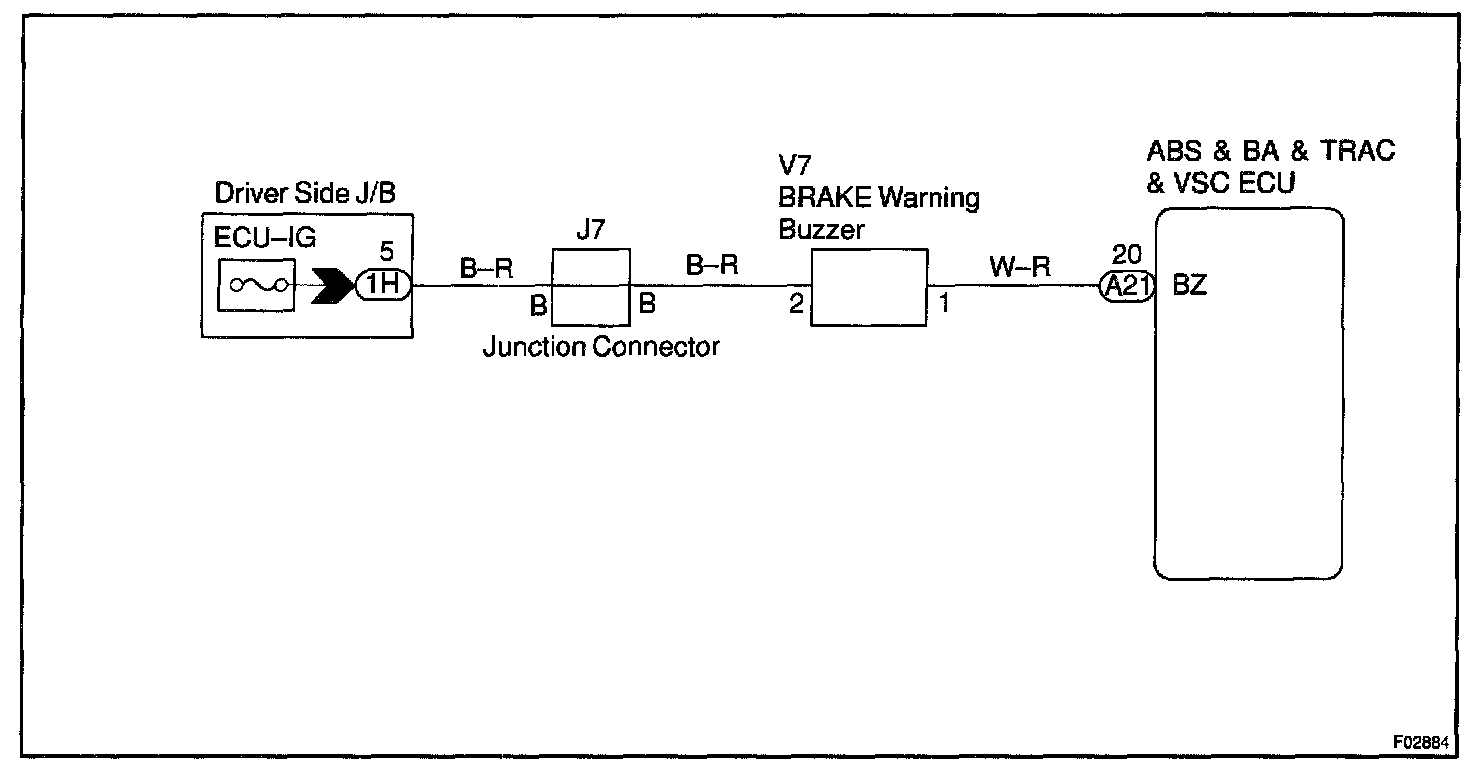

Wiring Diagram:

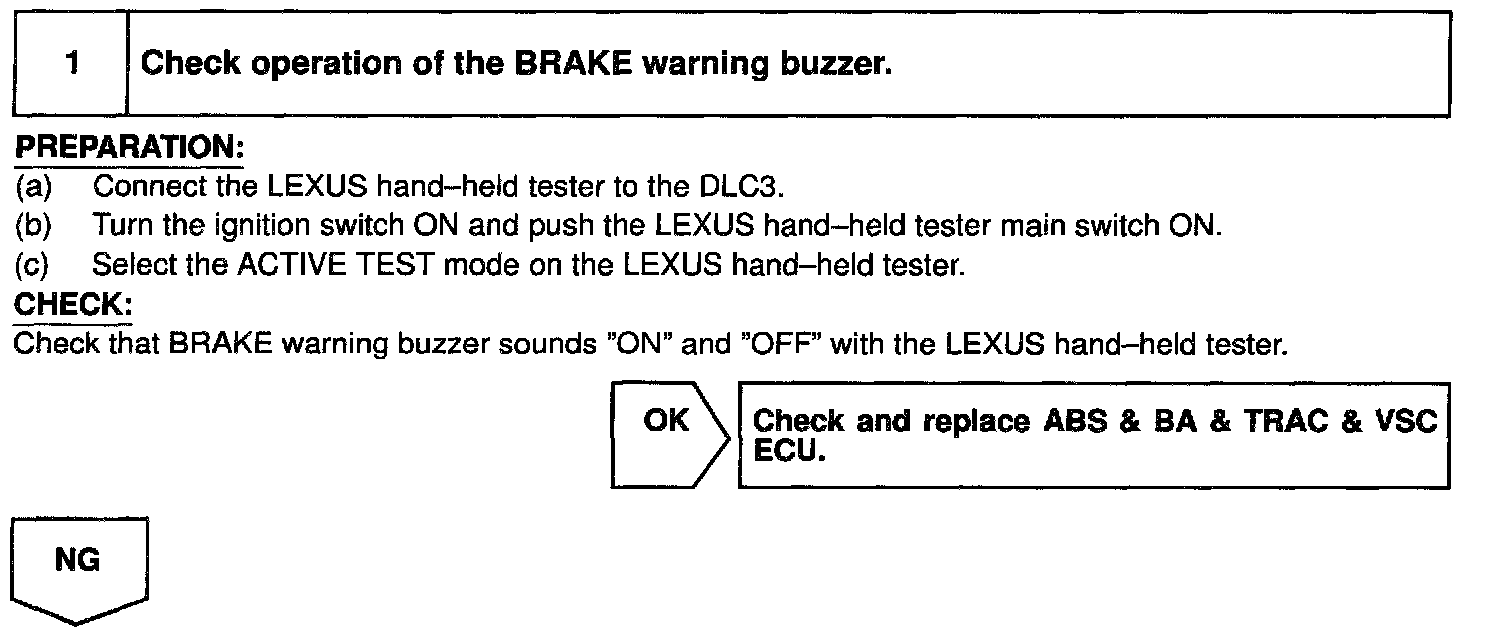

Step 1:

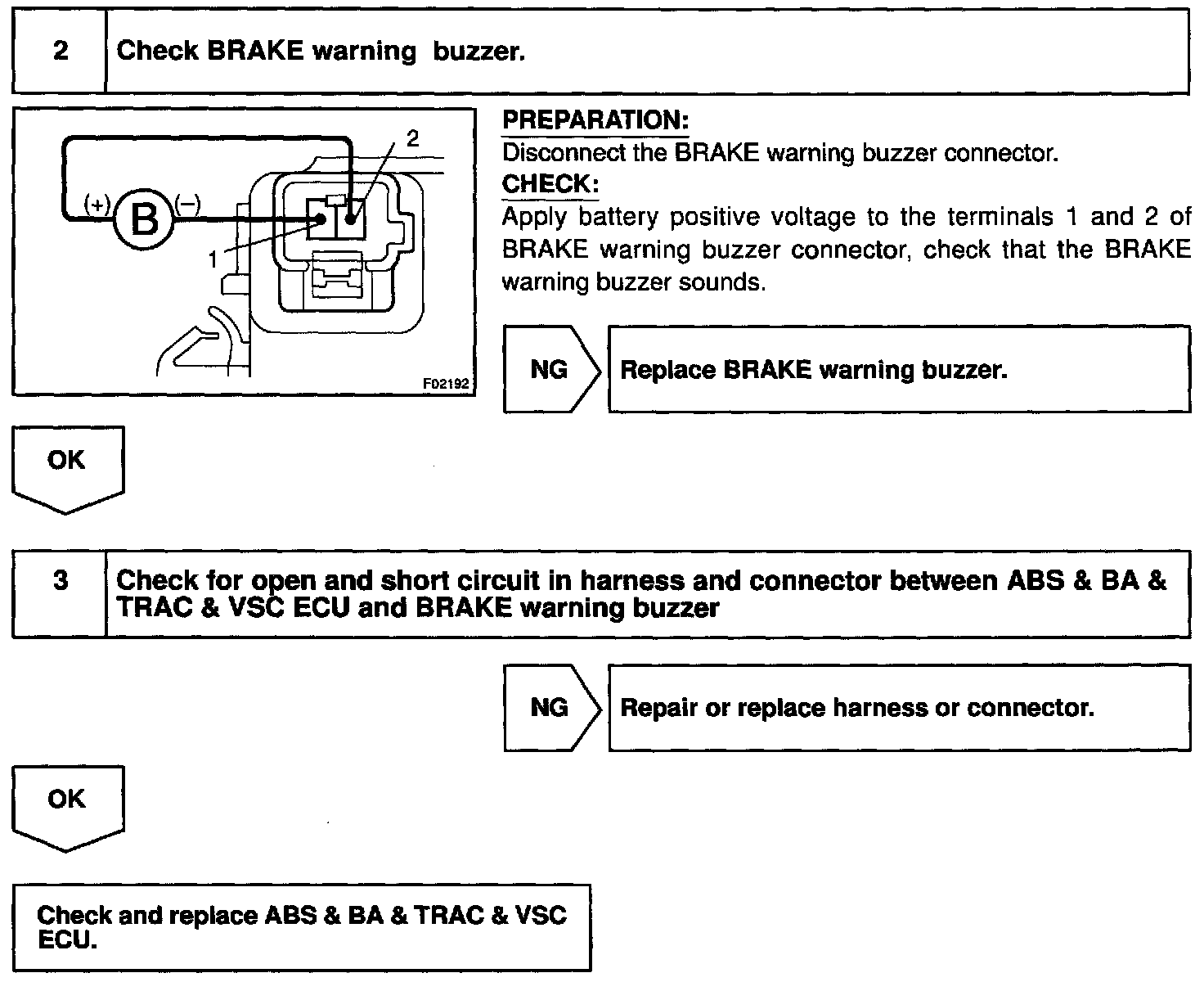

Step 2 - 3:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 in case of using the LEXUS hand-held tester and start from step 2 in case of not using the LEXUS hand-held tester.
