M1, M2 Set Switch Circuit

M1, M2 SET Switch Circuit

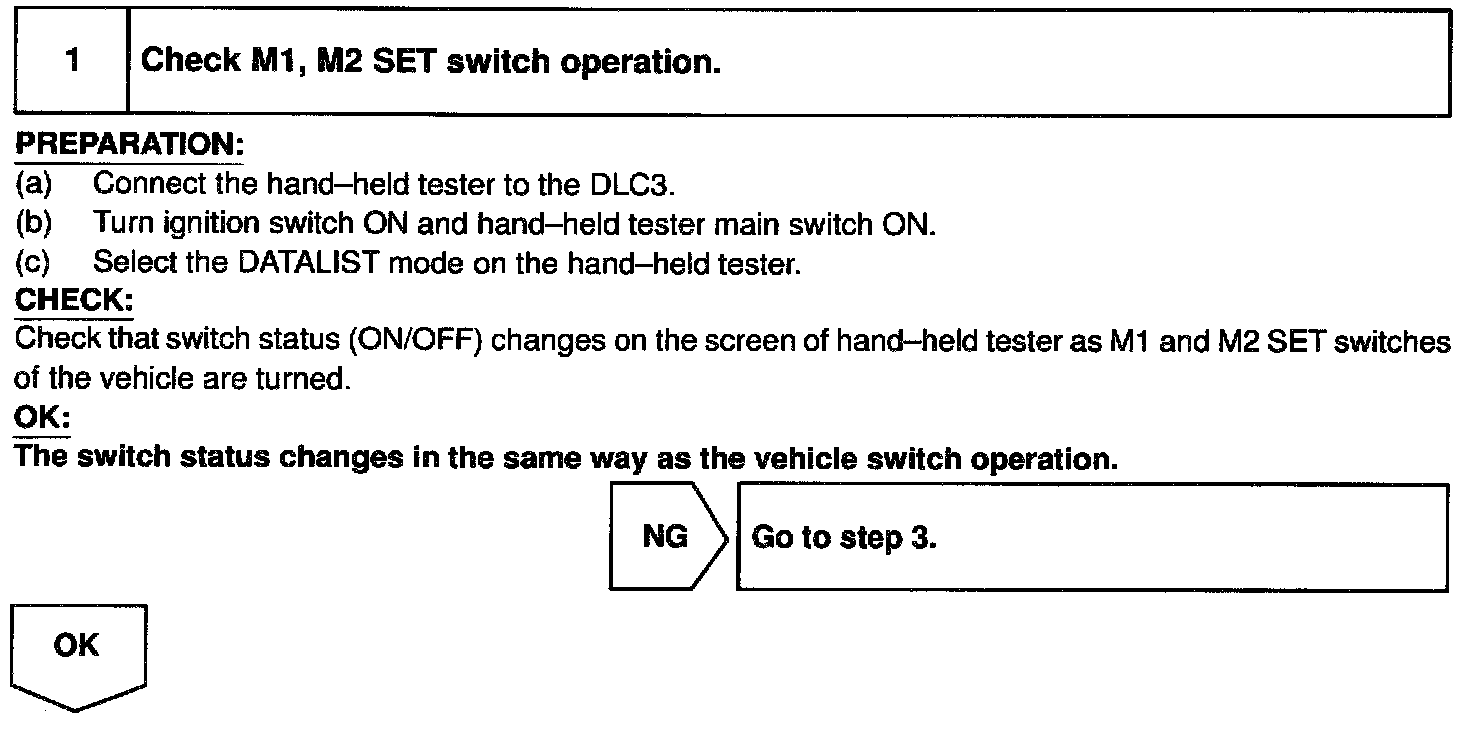

Step 1:

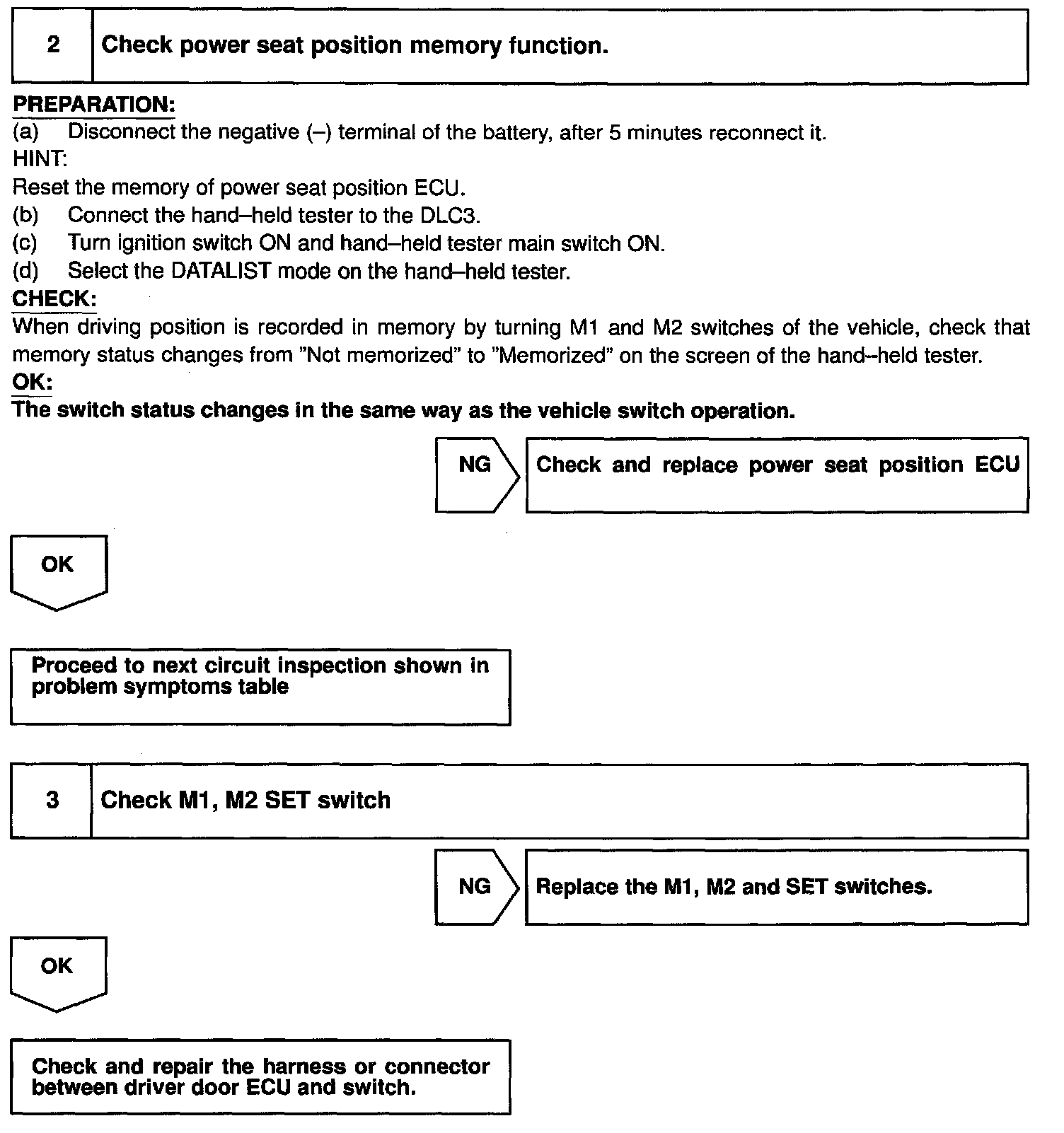

Step 2 - 3:




INSPECTION PROCEDURE

HINT: If there is not the hand-held tester, begin with STEP 3.
