Body No. 2 Control System
Body No. 2 Control System

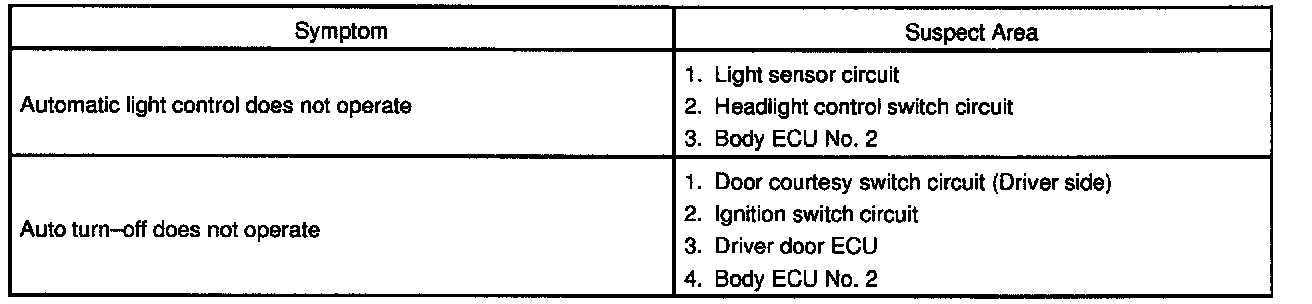

Problem Symptoms Table - Light Control:

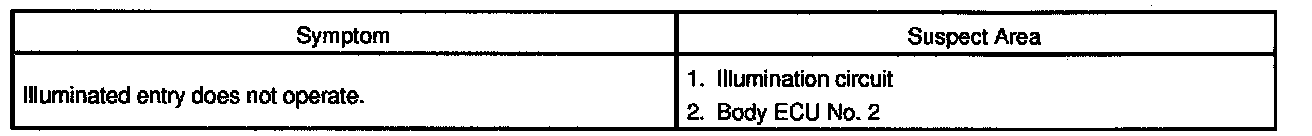

Problem Symptoms Table - Illuminated Entry:

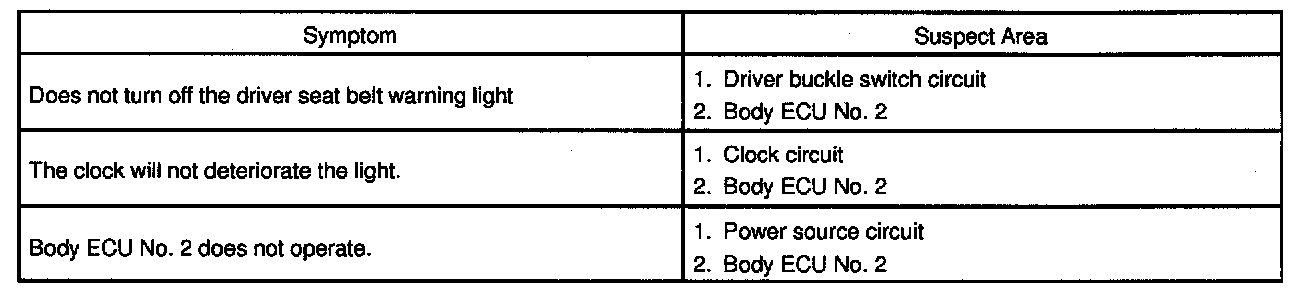

Problem Symptoms Table - Others:
