Home >> Lexus >> 2002 >> GS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Body and Frame >> Body Control Systems >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Passenger Door Control System

Passenger Door Control System

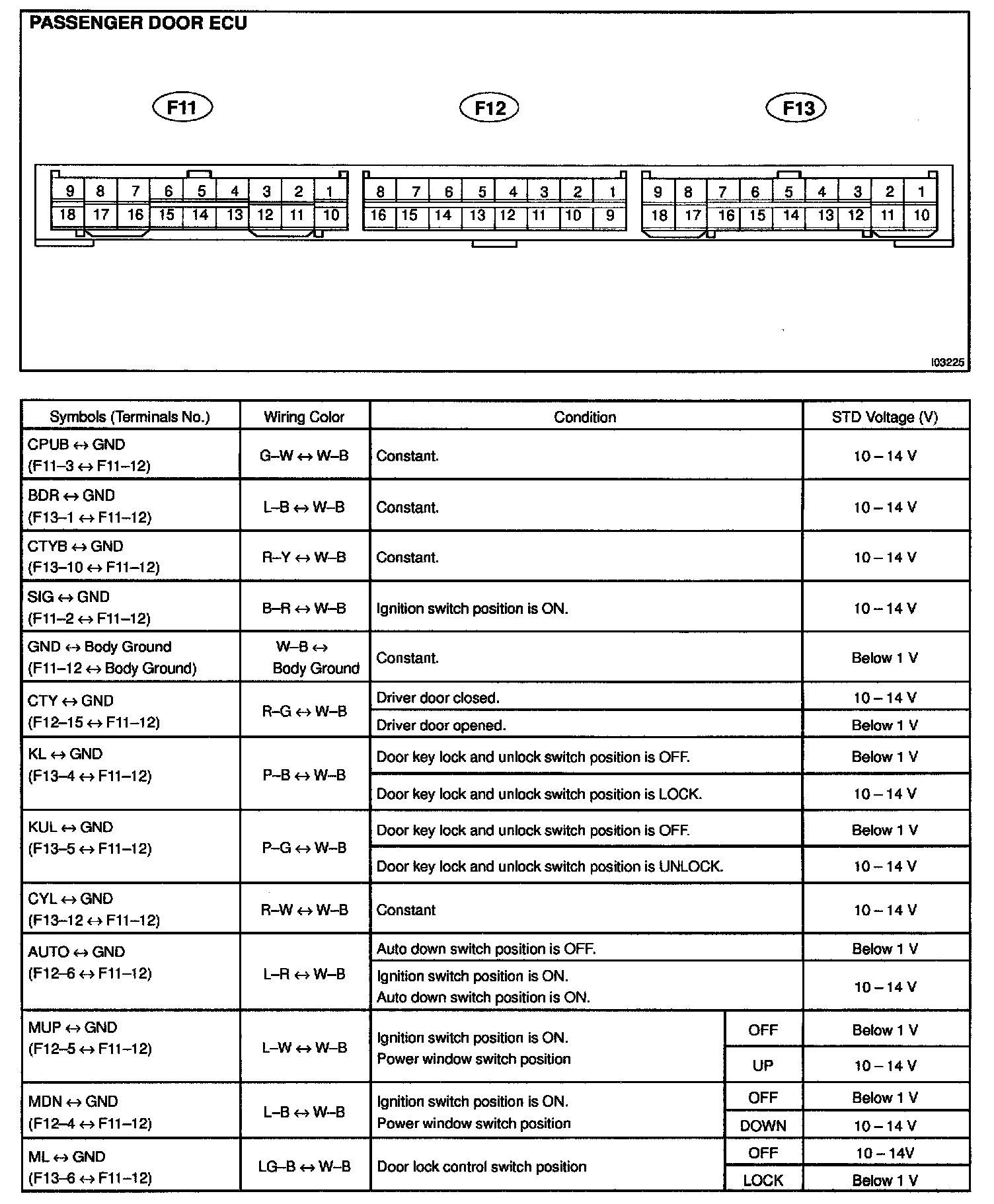

Terminals Of ECU/Pinouts:

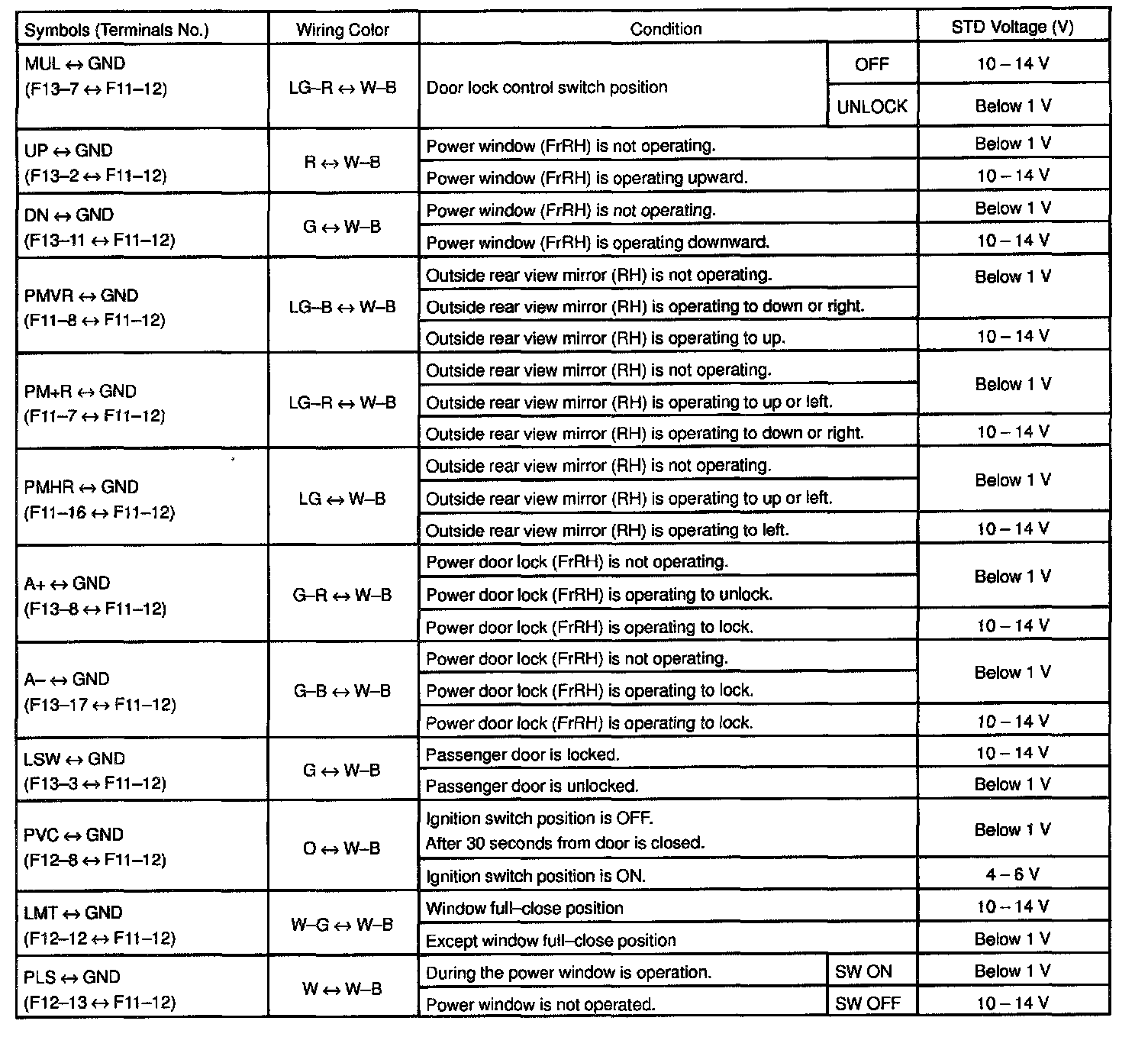

Pinouts Part 2:
