Theft Deterrent Horn Circuit

Theft deterrent horn circuit

CIRCUIT DESCRIPTION
During warning of the theft deterrent system, the Body ECU No.1 activates the theft deterrent horn.

Wiring Diagram:

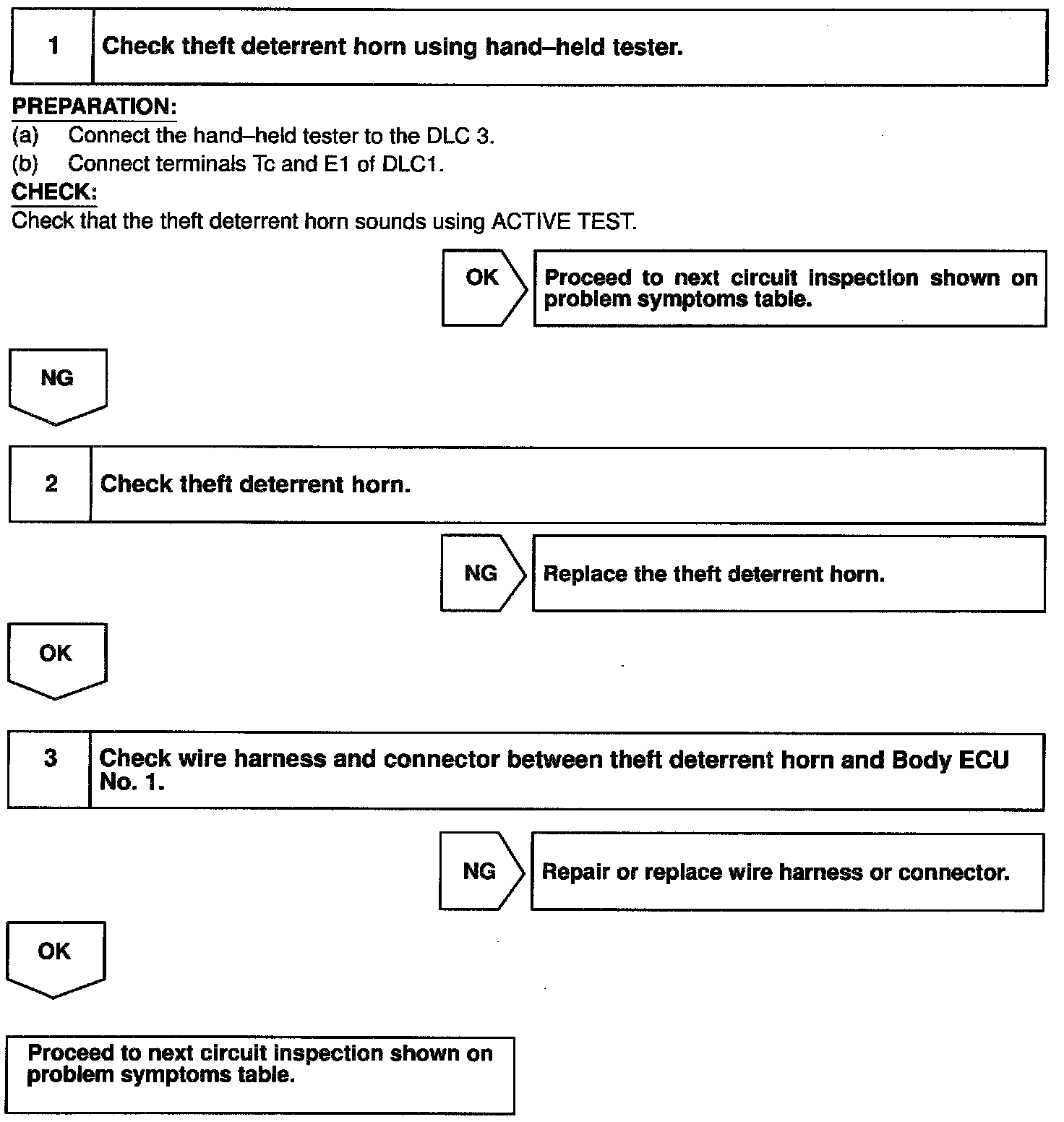

Step 1 - 3:

INSPECTION PROCEDURE

HINT: In case of using the hand-held tester, start the inspection from step 1 and in case of not using the hand-held tester, start from step 2
