Horn Circuit

Horn circuit

CIRCUIT DESCRIPTION
The horn is connected to the Body ECU No.1 and activated by the Body ECU No.1 during warning of the theft deterrent system.

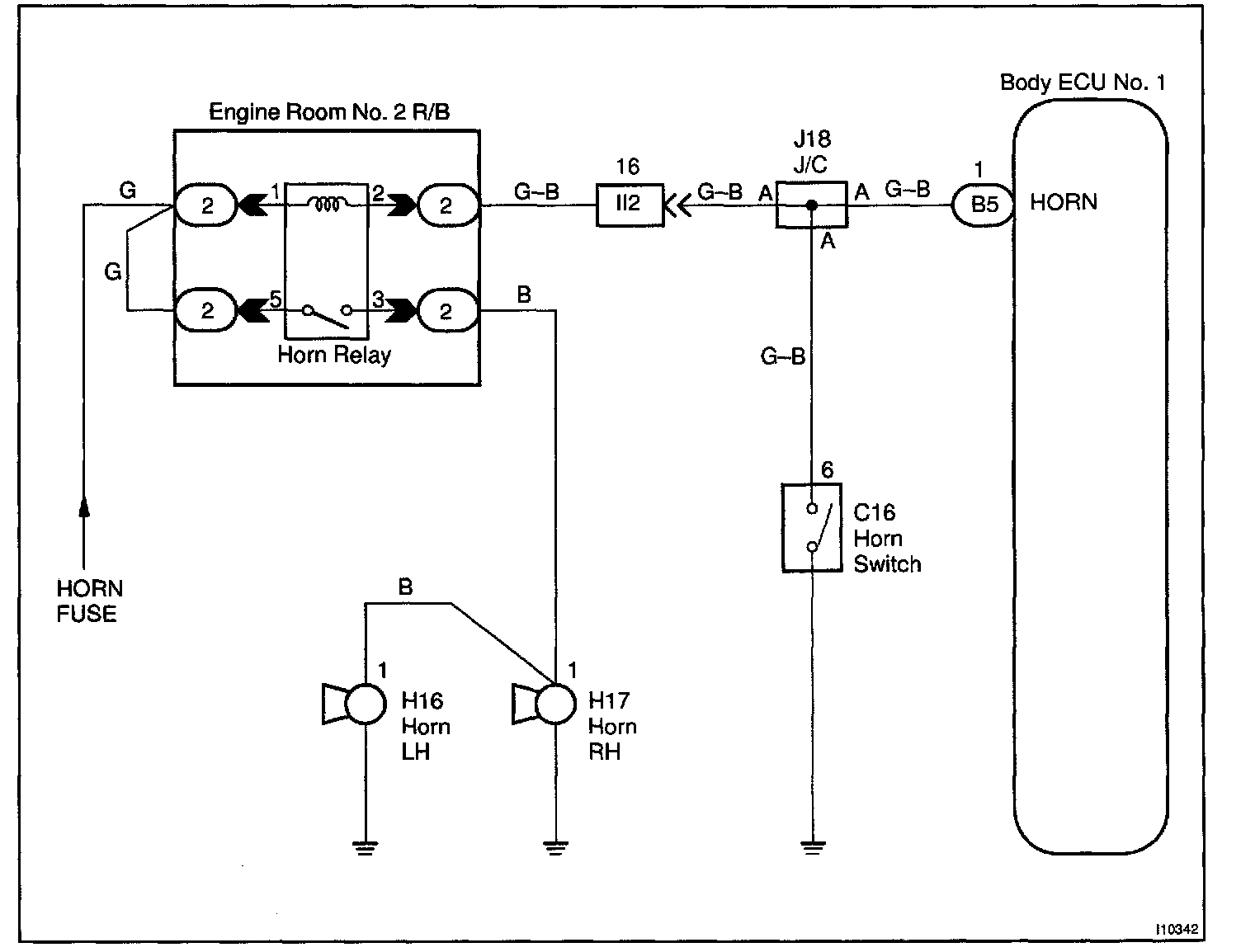

Wiring Diagram:






Step 1 - 2:

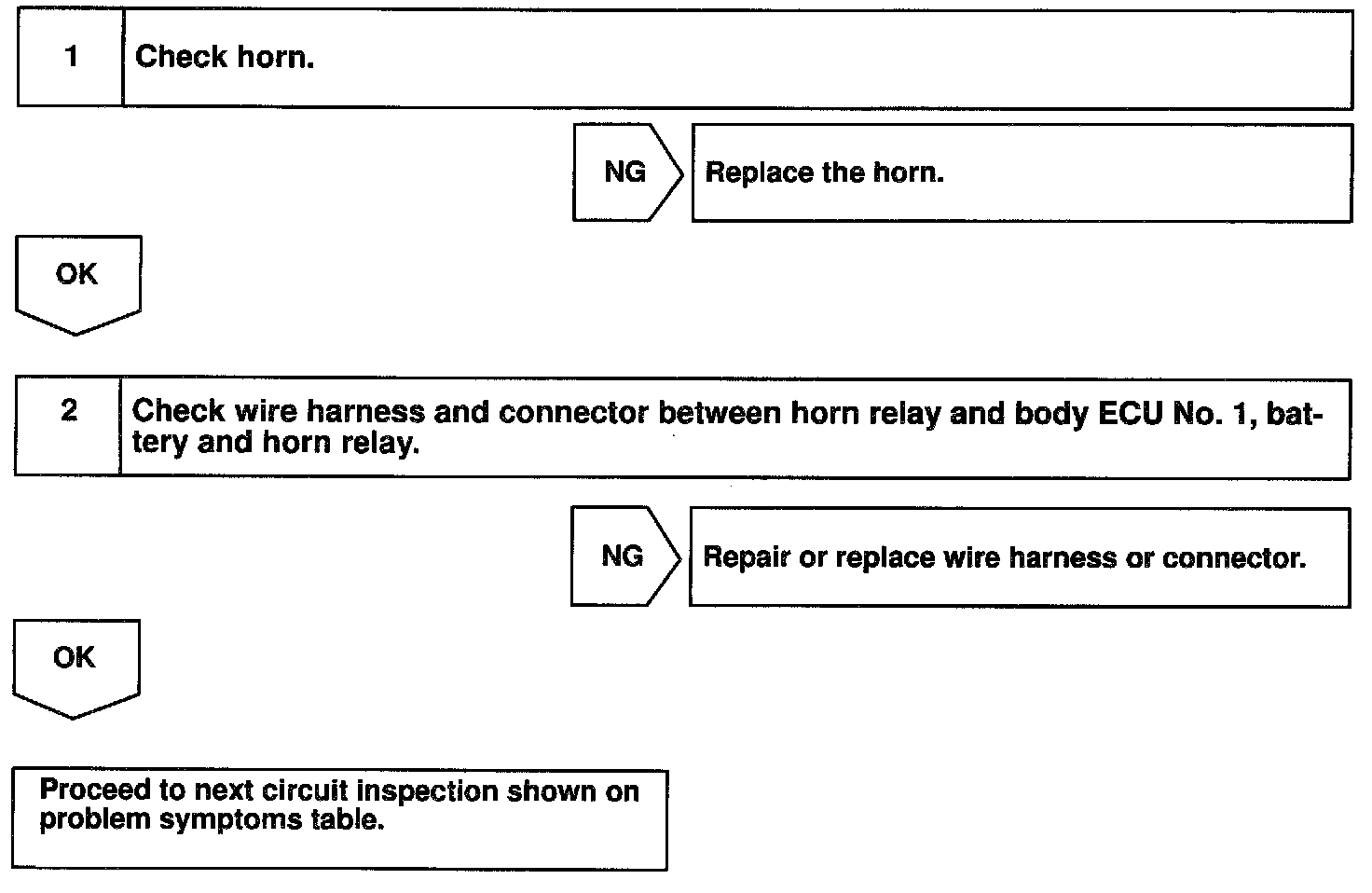

INSPECTION PROCEDURE
