29 - CD Cannot Be Inserted

29. CD MAGAZINE CANNOT BE INSERTED

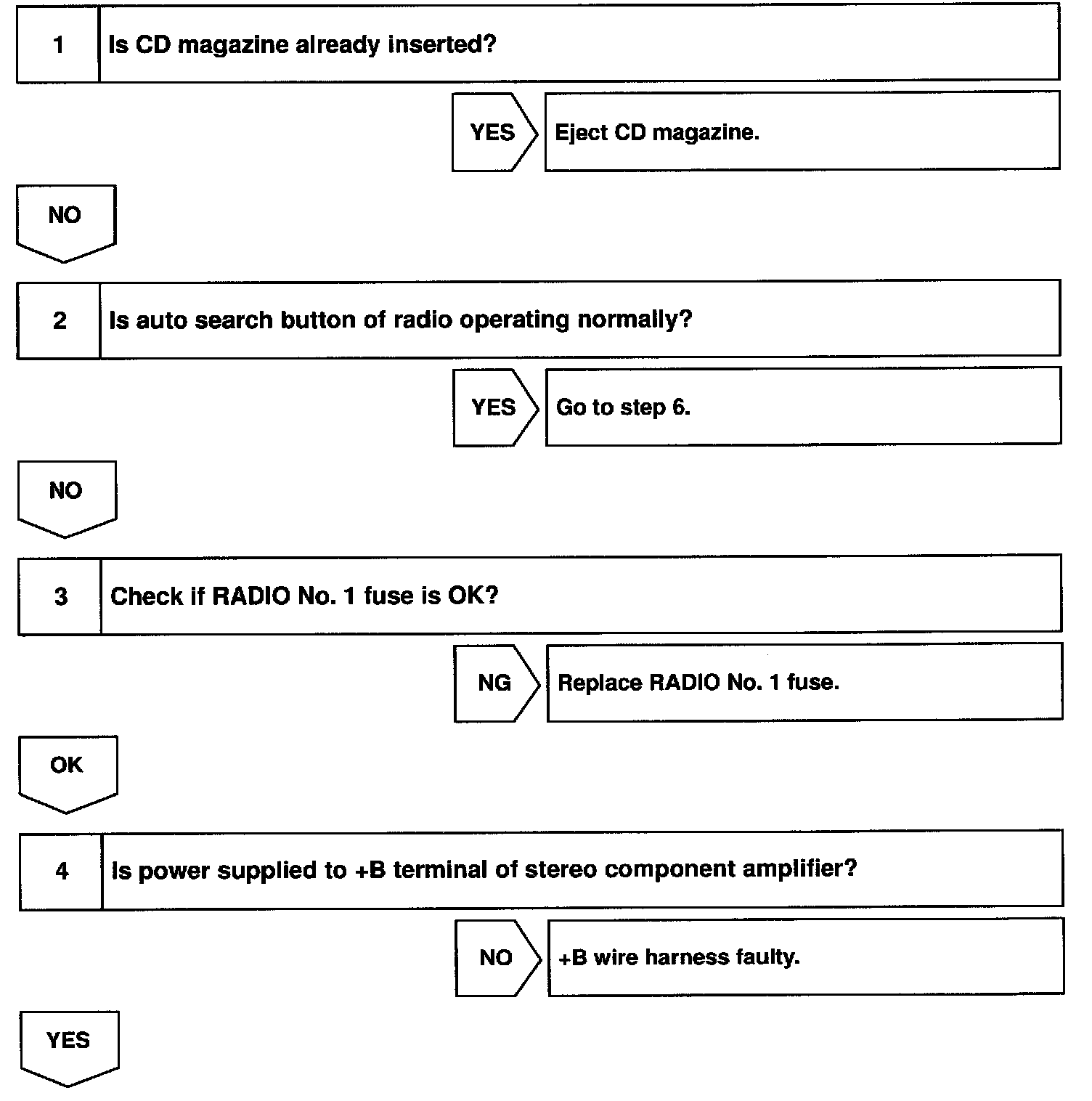

Step 1 - 4:

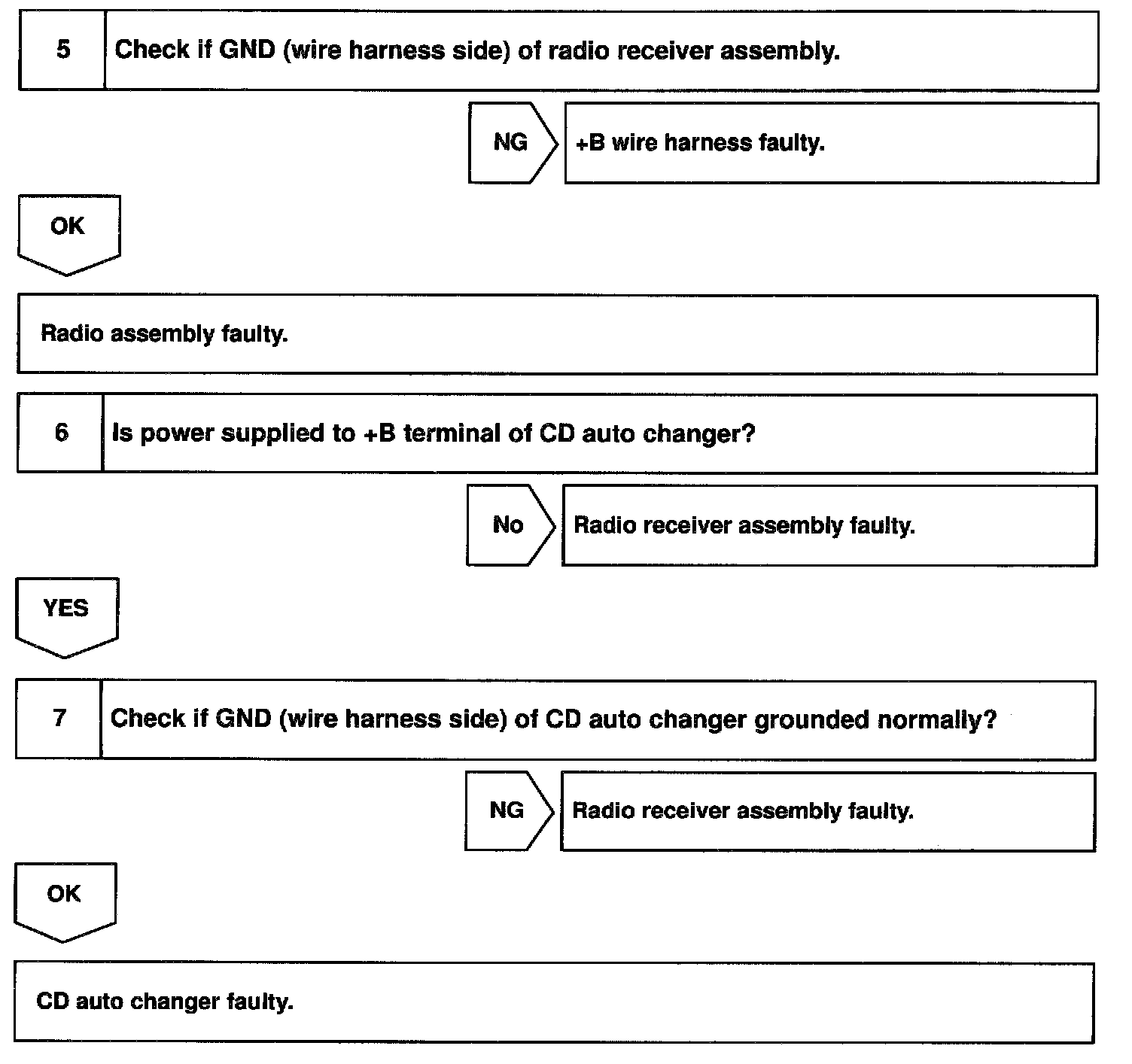

Step 5 - 7:




INSPECTION PROCEDURE
