14. MAP is Displayed in White or Blue Screen. (Switches and Vehicle Position Mark Is Displayed)

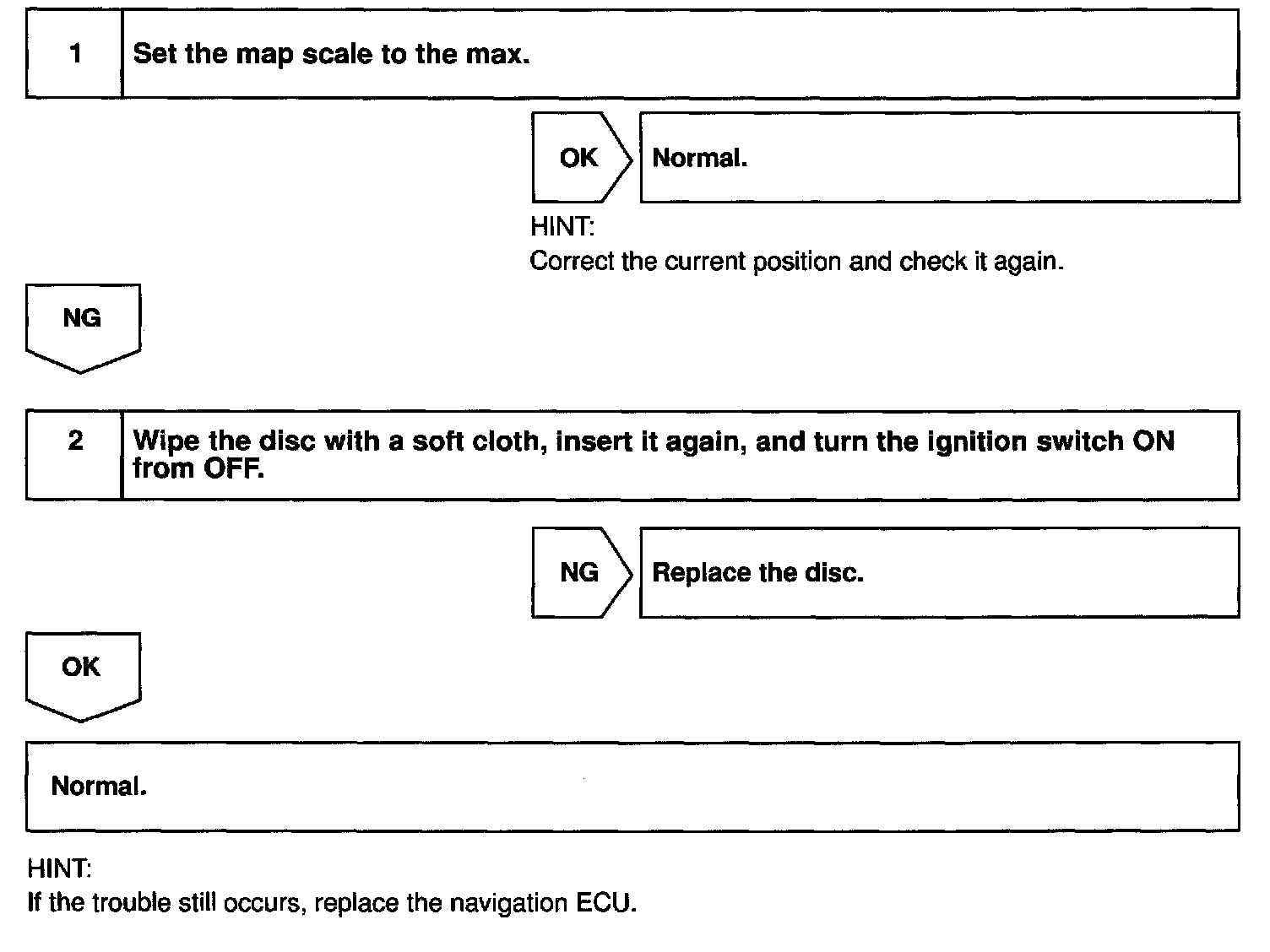

Step 1 - 2:
INSPECTION PROCEDURE
