Home >> Lexus >> 2002 >> GS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnostic Procedures >> 12 - MAP Disc Cannot Be Inserted

12 - MAP Disc Cannot Be Inserted

12. Map DISC cannot be inserted

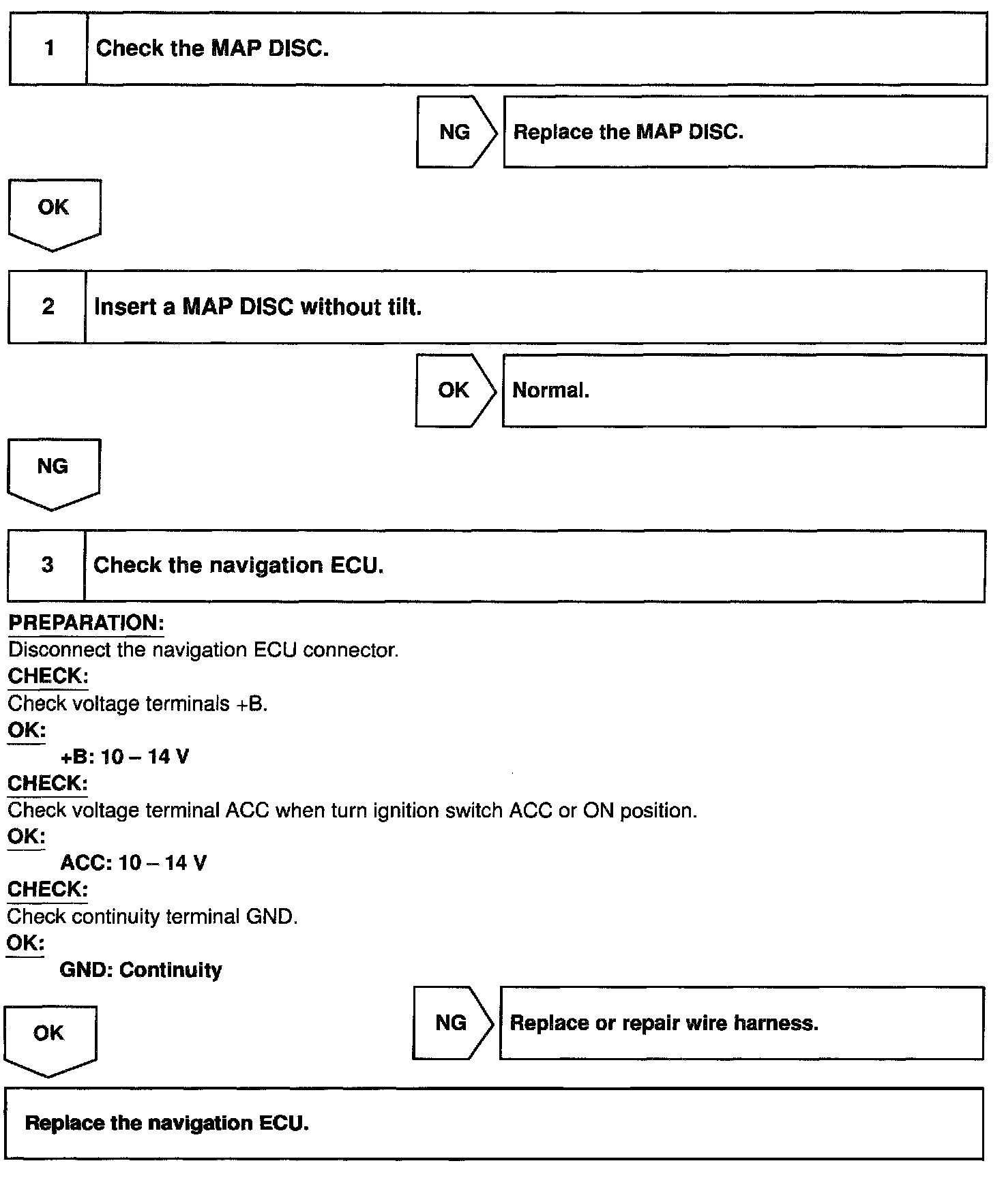

Step 1 - 3:




INSPECTION PROCEDURE
