11 - No Sound / Driver Side Door Speaker
11 - No Sound / Driver Side Door Speaker
11. No sound (radio, cassette tape, CD) can be heard from driver side door speaker only

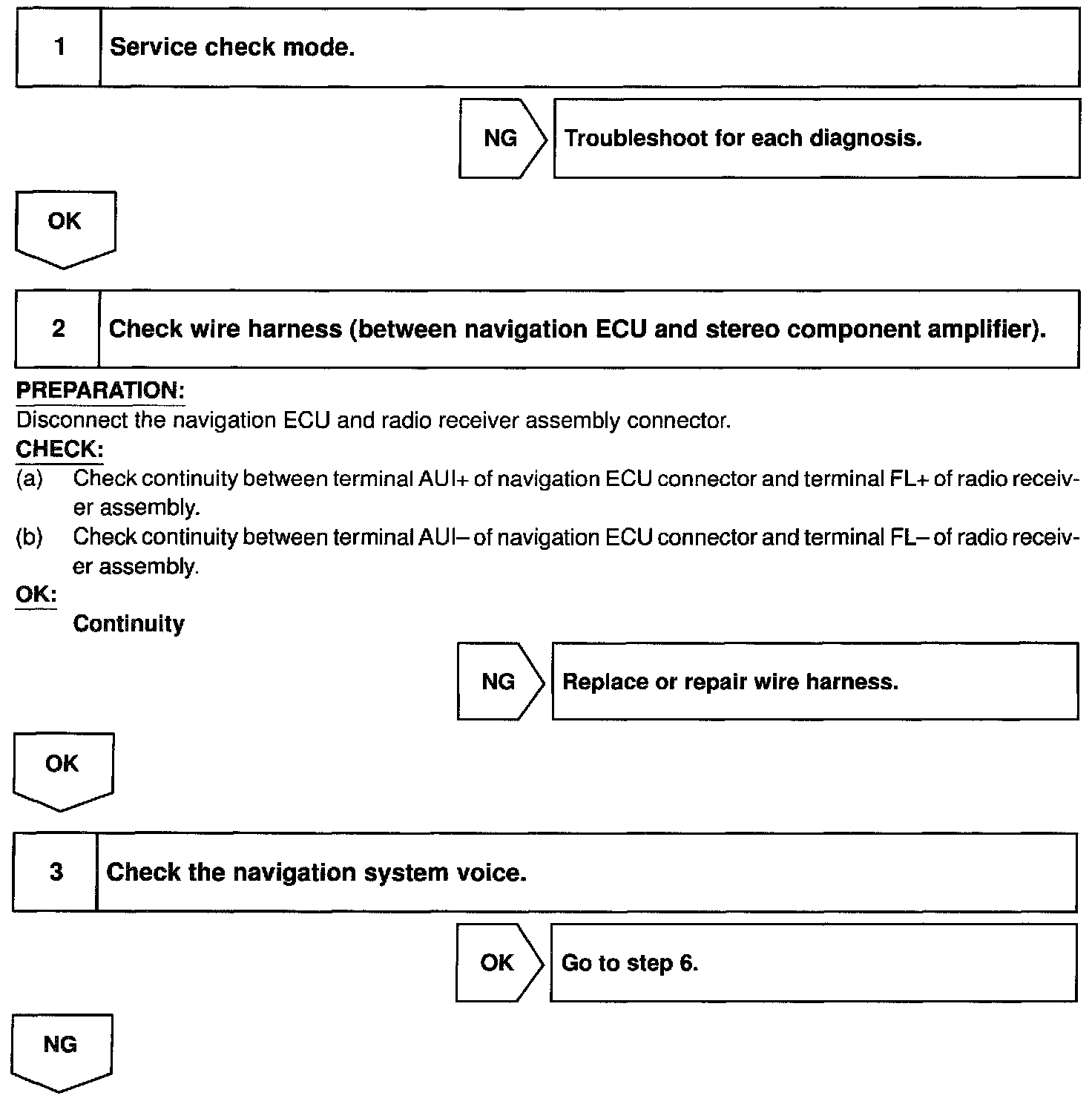

Step 1 - 3:

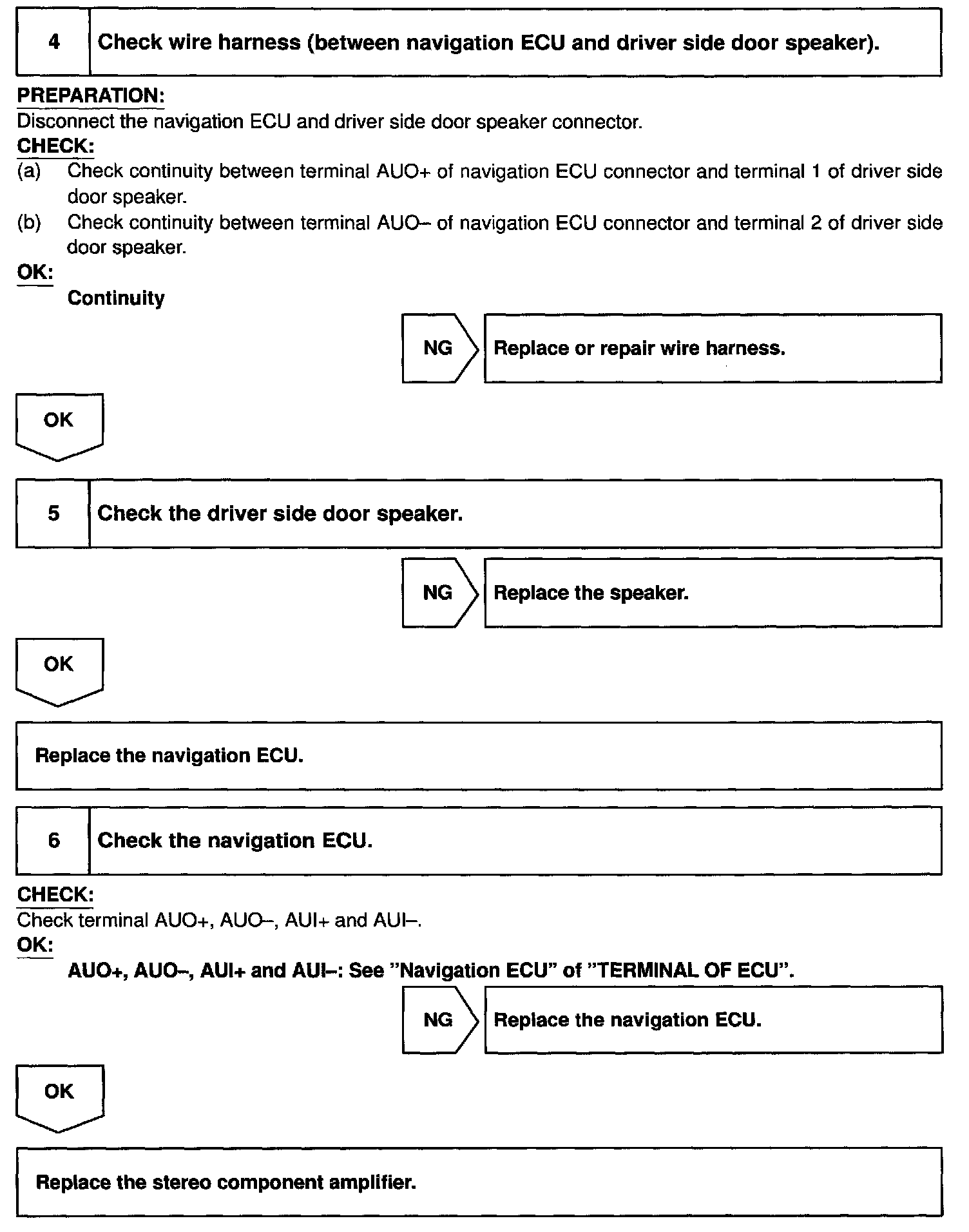

Step 4 - 6:
INSPECTION PROCEDURE
