Home >> Lexus >> 2002 >> GS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnostic Procedures >> 09 - Black Screen When MAP, MENU or DEST Switch Pressed

09 - Black Screen When MAP, MENU or DEST Switch Pressed

9. Black screen appears when "MAP", "MENU" or DESTINATION" switch pressed

Step 1:

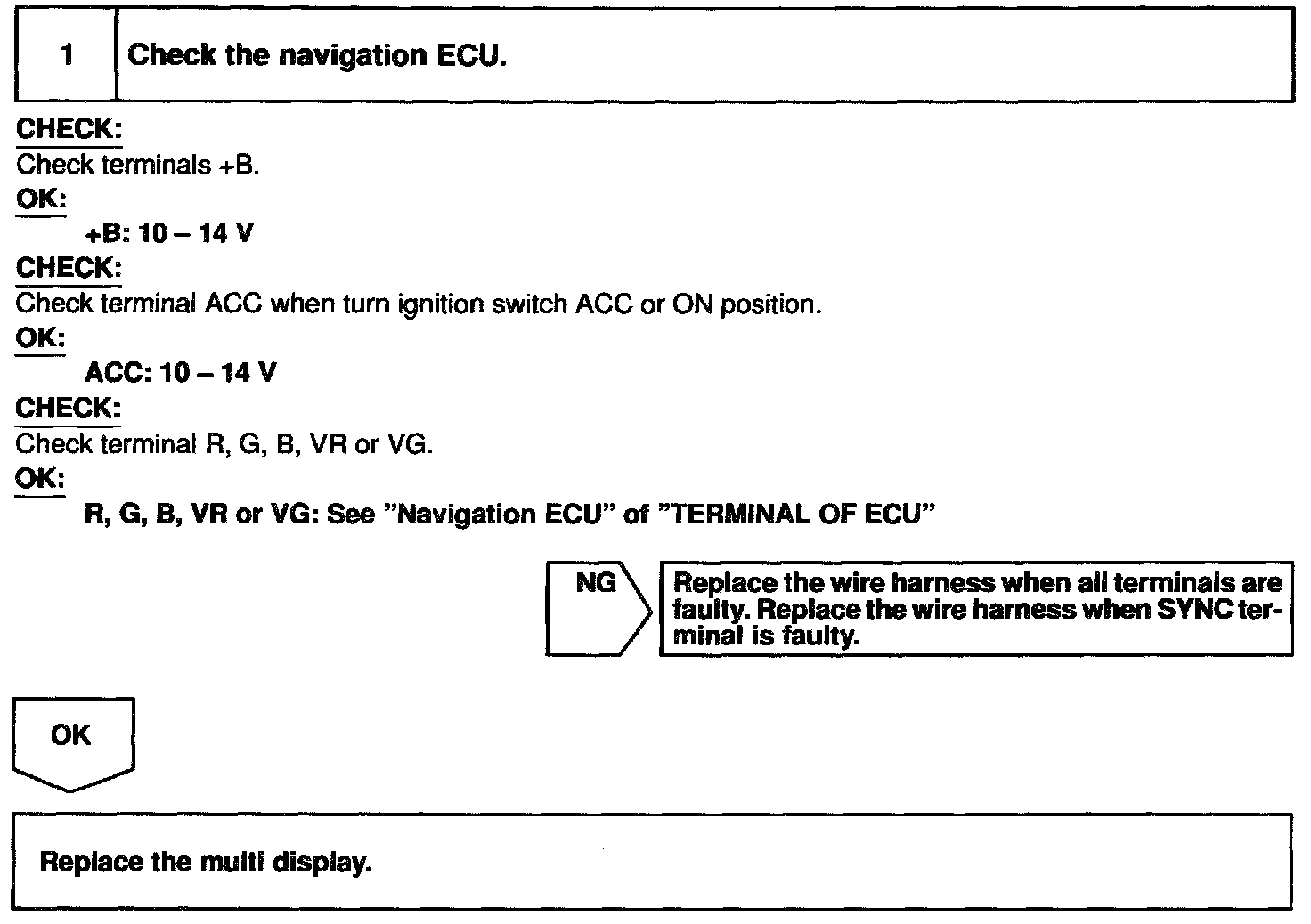

INSPECTION PROCEDURE
