05 - No Navigation Displayed AUDIO OFF on Screen & No Audio
05 - No Navigation Displayed AUDIO OFF on Screen & No Audio
5. No navigation displayed, "Audio OFF" on audio screen and no audio sound.
Step 1 - 3:

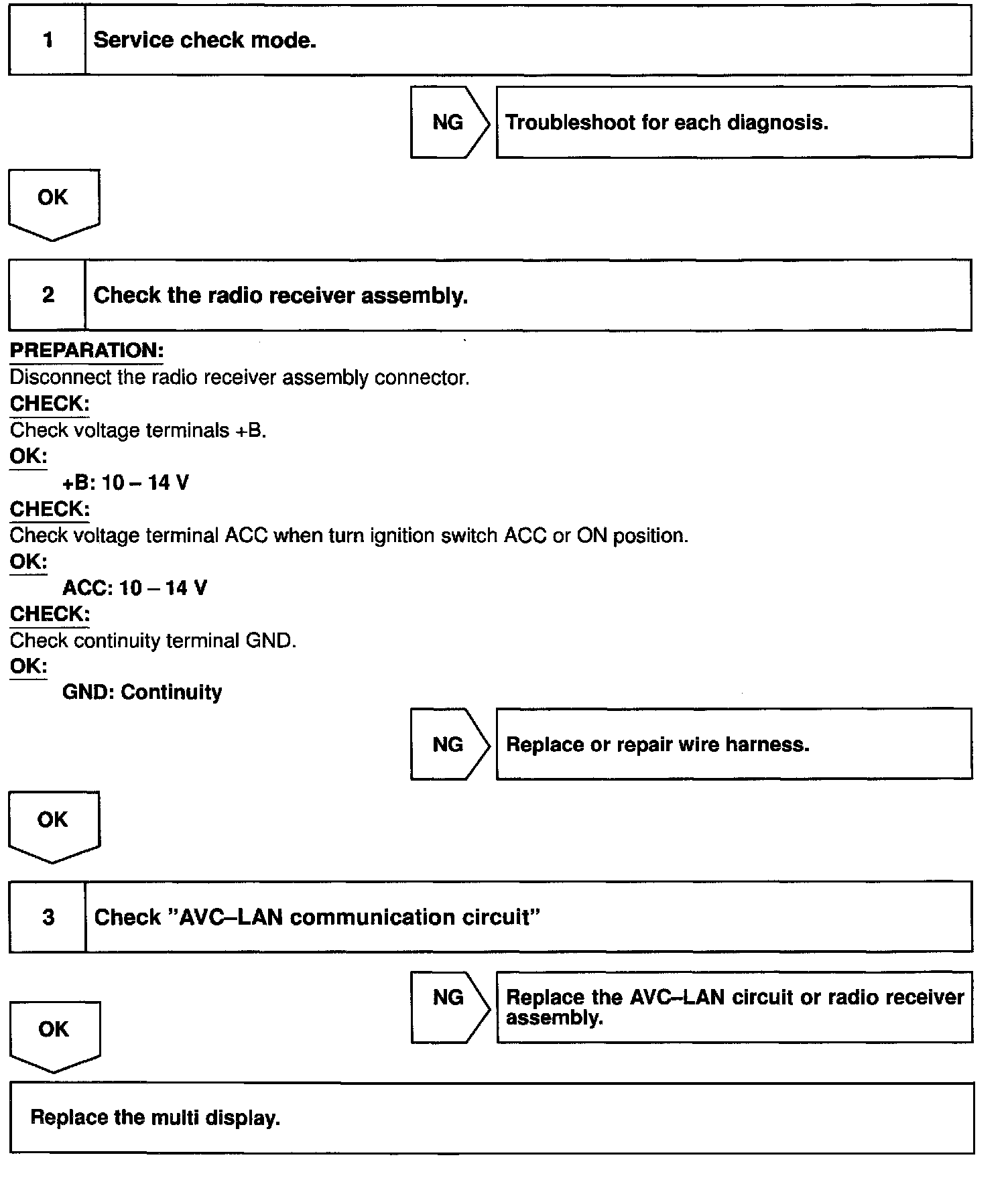

INSPECTION PROCEDURE
