Home >> Lexus >> 2002 >> GS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnostic Procedures >> 03 - No Navigation Screen Displayed MAP, MENU, or DEST Pressed

03 - No Navigation Screen Displayed MAP, MENU, or DEST Pressed

3. No navigation screen displayed when "MAP", "Menu", or "DEST" switch pressed. (Screen cannot be switched.)

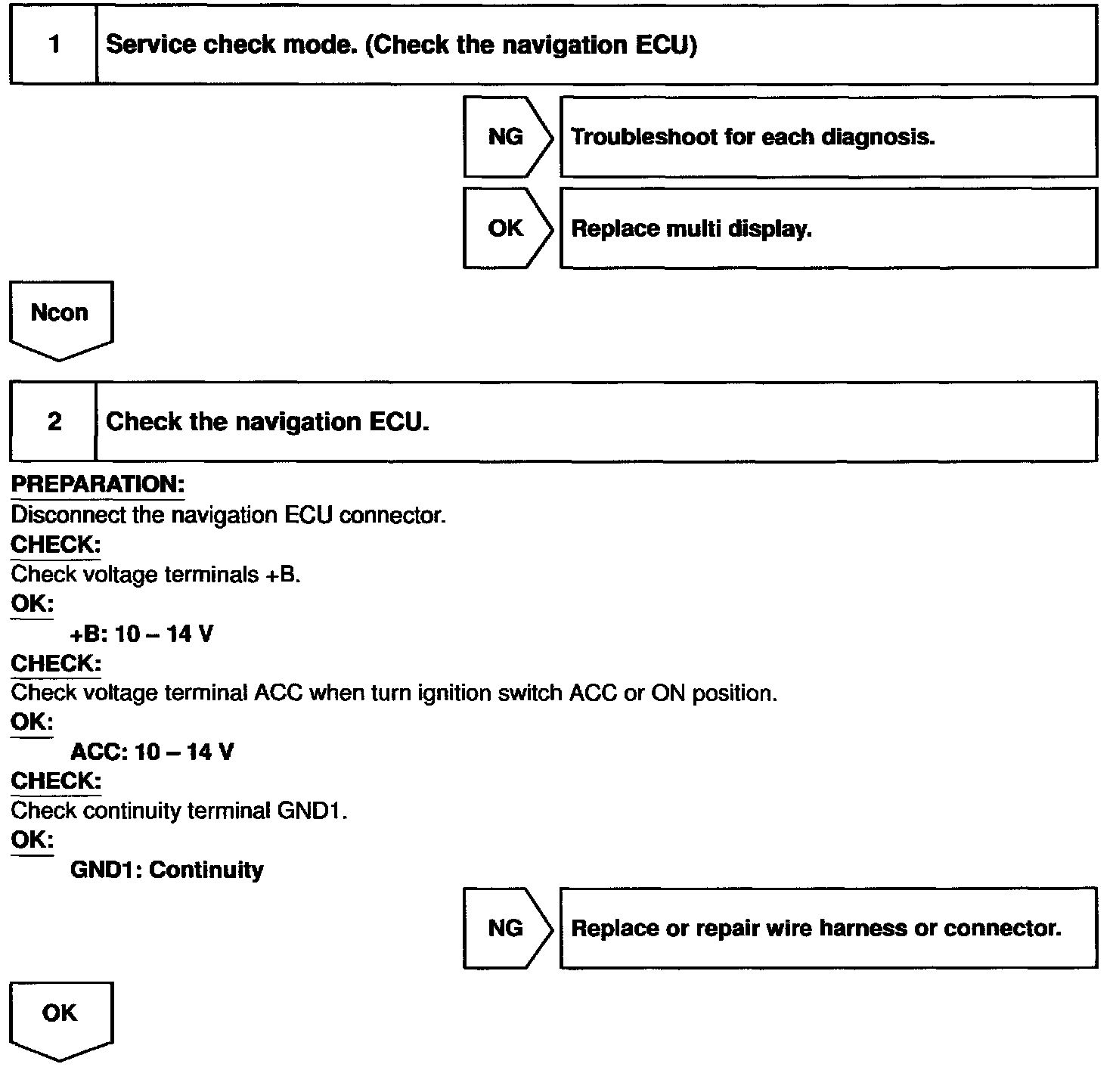

Step 1 - 2:

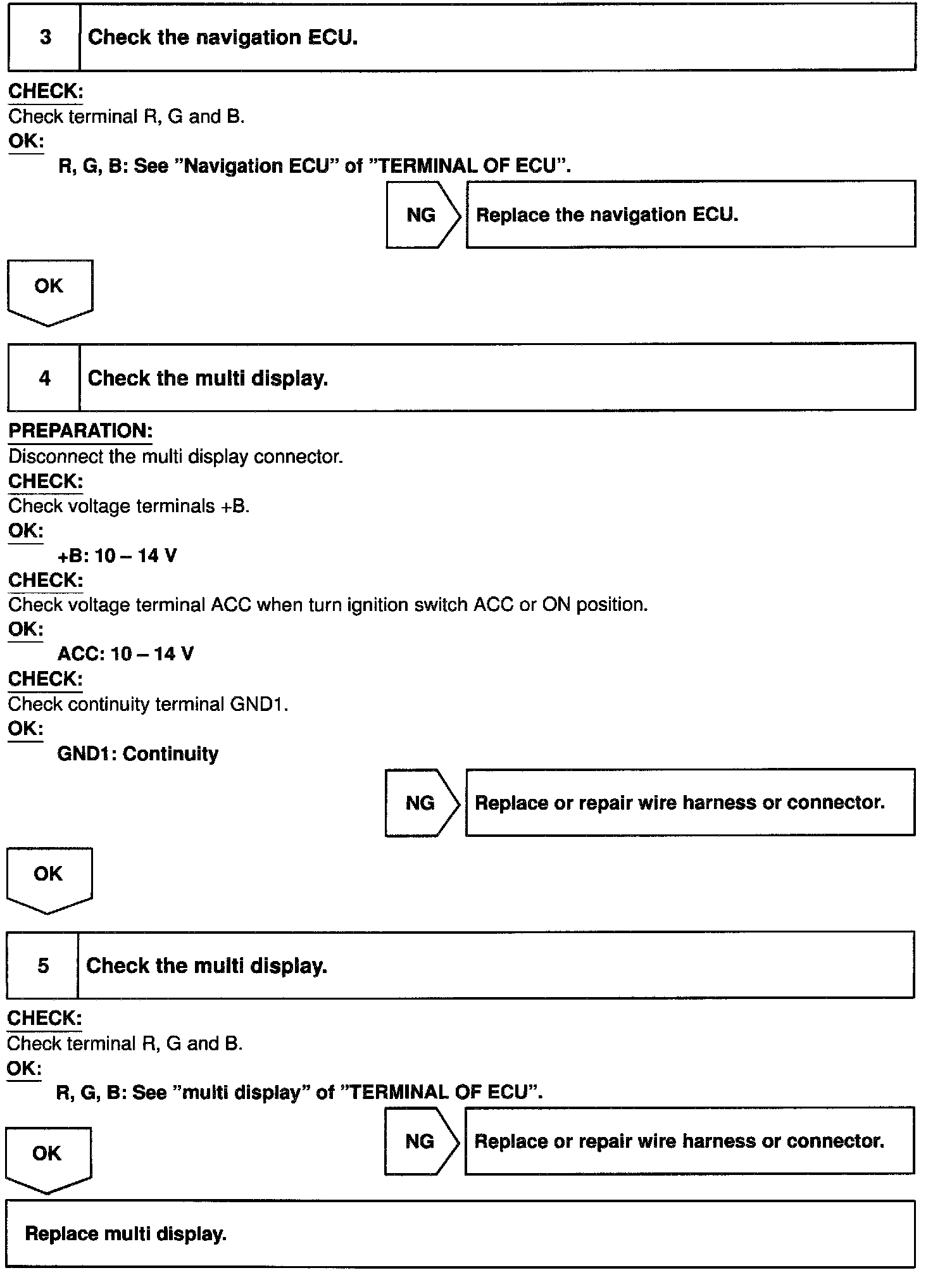

Step 3 - 5:




INSPECTION PROCEDURE
