P1645

P1645 - Body ECU Malfunction

CIRCUIT DESCRIPTION

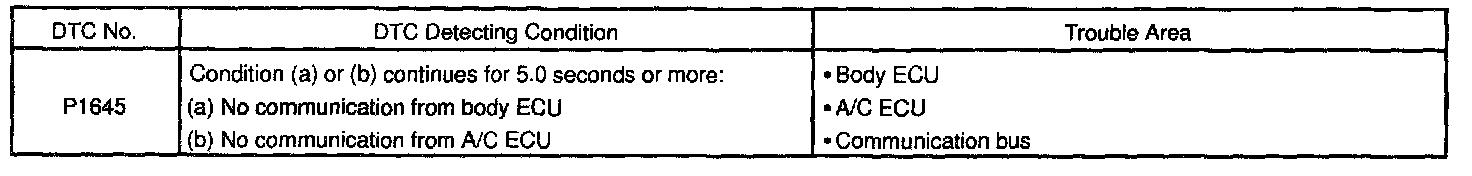

DTC Detecting Condition:

ECM receives a signal of the operating condition (ON/OFF) of A/C from A/C ECU and it also receives the electrical load information from the body ECU.
ECM uses these information to control the engine (idle up, etc.)


INSPECTION PROCEDURE
Troubleshoot the Multiplex Communication System.

HINT: Read freeze frame data using LEXUS hand-held tester or OBD II scan tool. Because freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, it is useful for determining whether the vehicle was running or stopped, the engine was warmed up or not, the air-fuel ratio was lean or rich, etc. at the time of the malfunction.
