P1566

P1566 - Input signal circuit abnormal

CIRCUIT DESCRIPTION

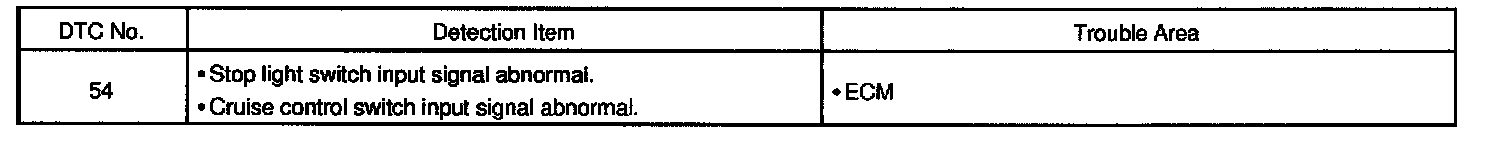

Detection Item:

This circuit carries the SET/COAST, RESUME/ACCEL and CANCEL signals (each voltage) to the ECM.

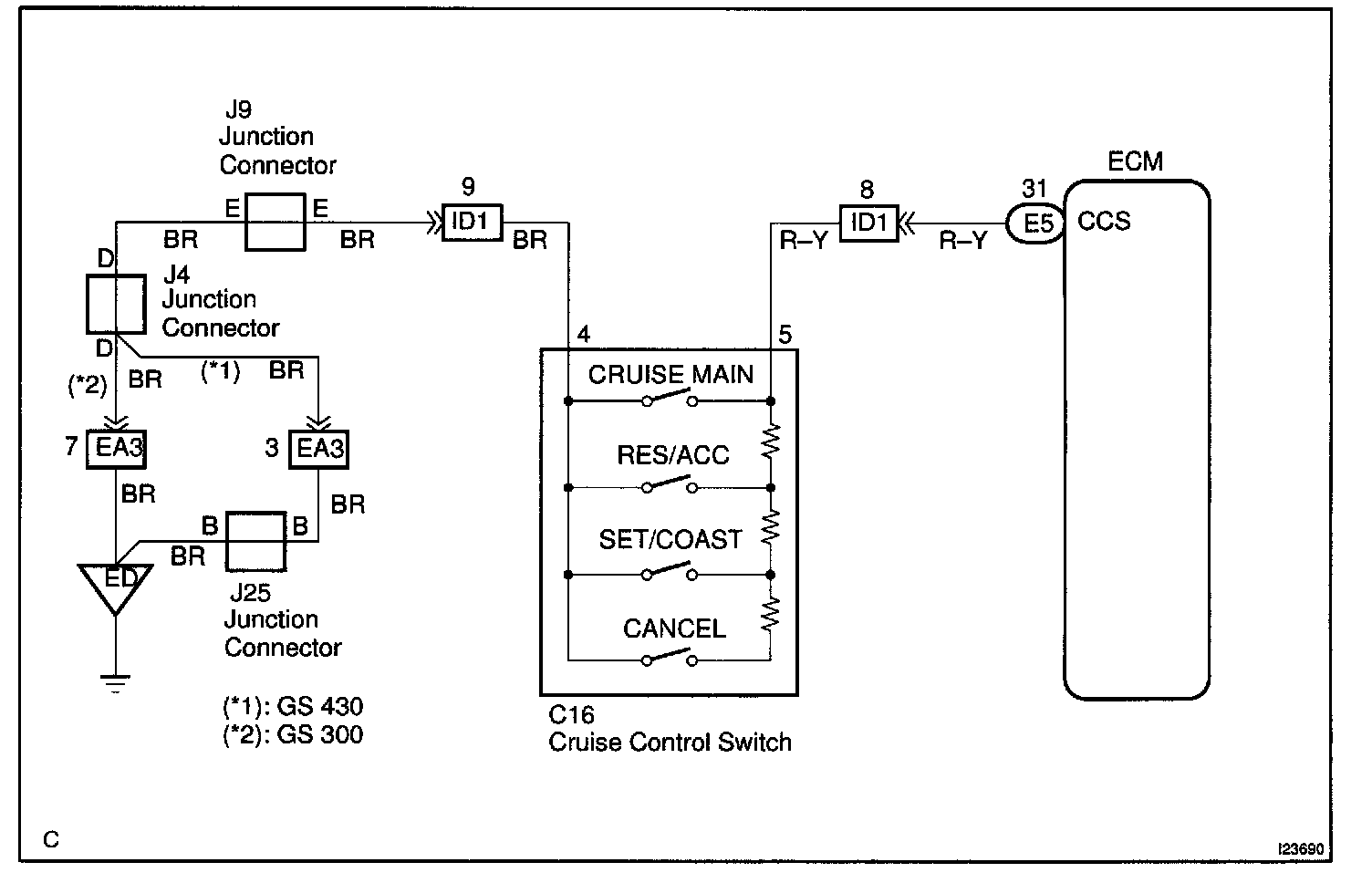

Wiring Diagram:

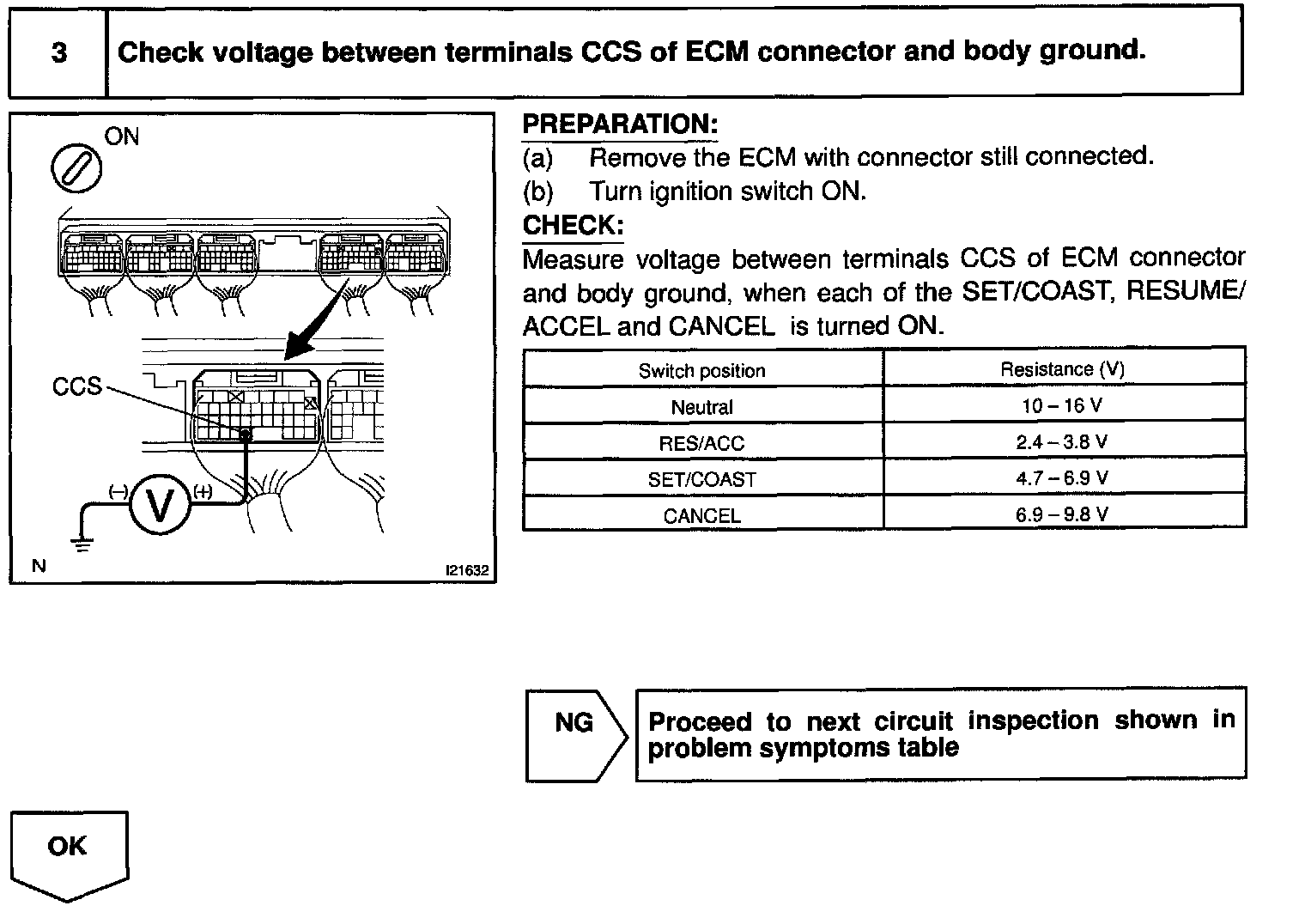

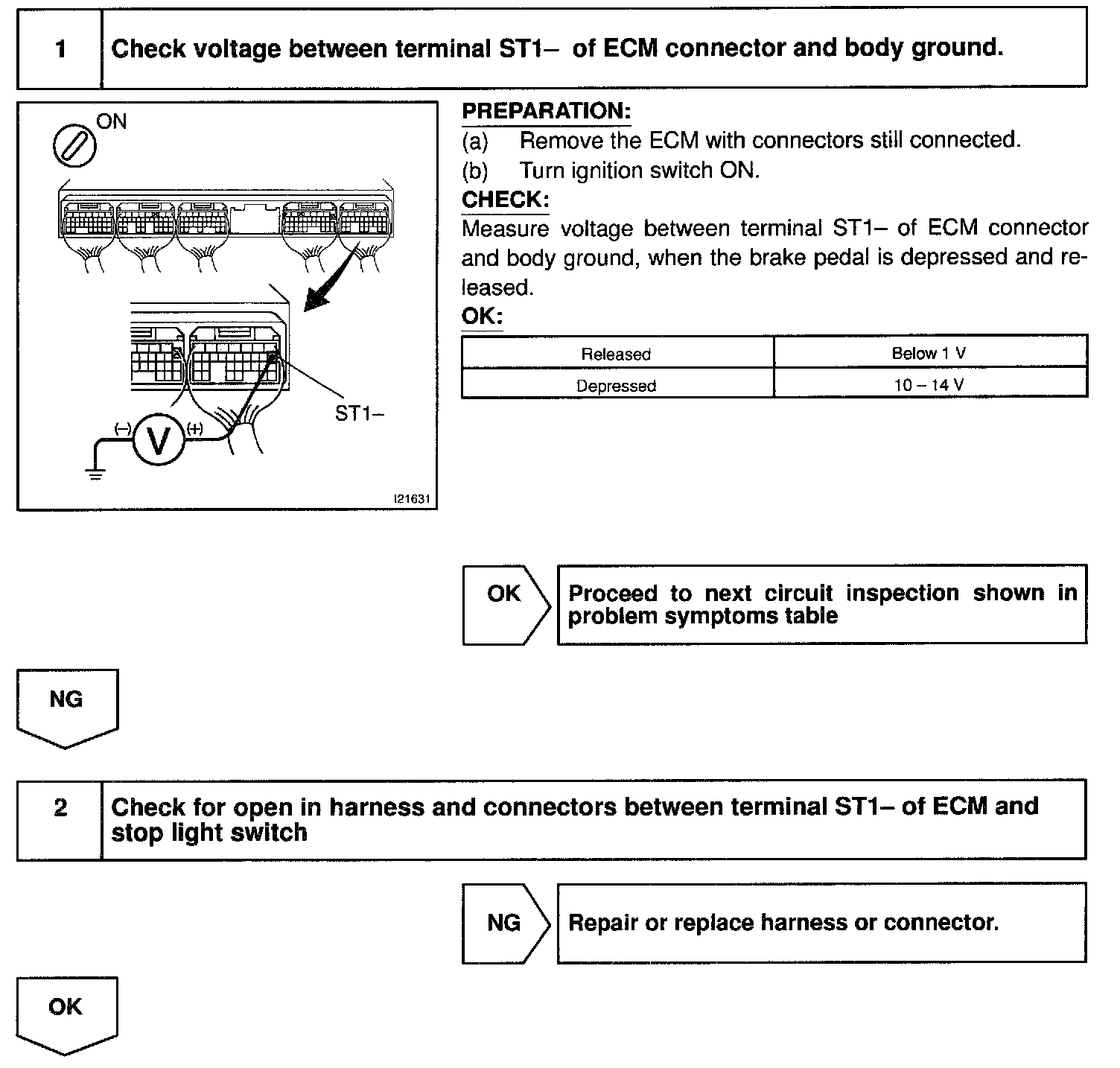

Step 1 - 2:

Step 3:

Step 4 - 5:

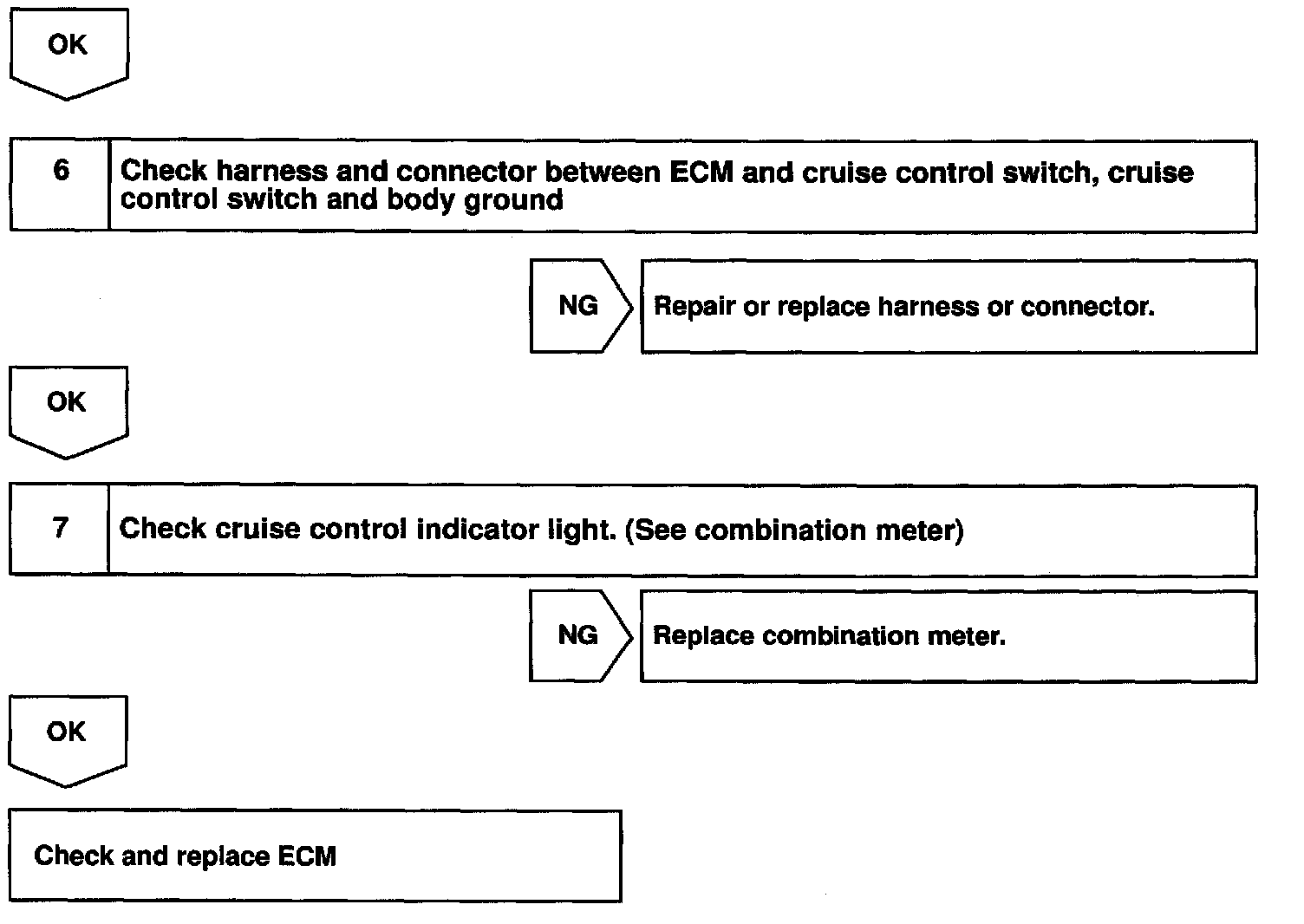

Step 5 (Continued) - 7:

INSPECTION PROCEDURE
