Engine Control System

P1520 - Stop Light Switch Signal Malfunction

CIRCUIT DESCRIPTION

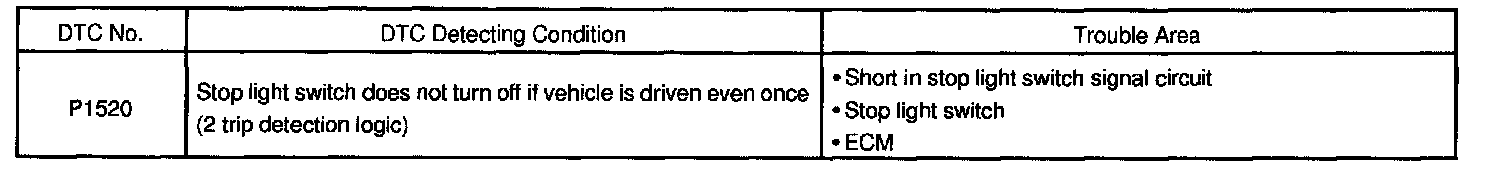

DTC Detecting Condition:

This signal is used to detect when the brakes have been applied. The STP signal voltage is the same as the voltage supplied to the stop lights.
The STP signal is used mainly to control the fuel cut-off engine speed. (The fuel cut-off engine speed is reduced slightly while the vehicle is braking.)

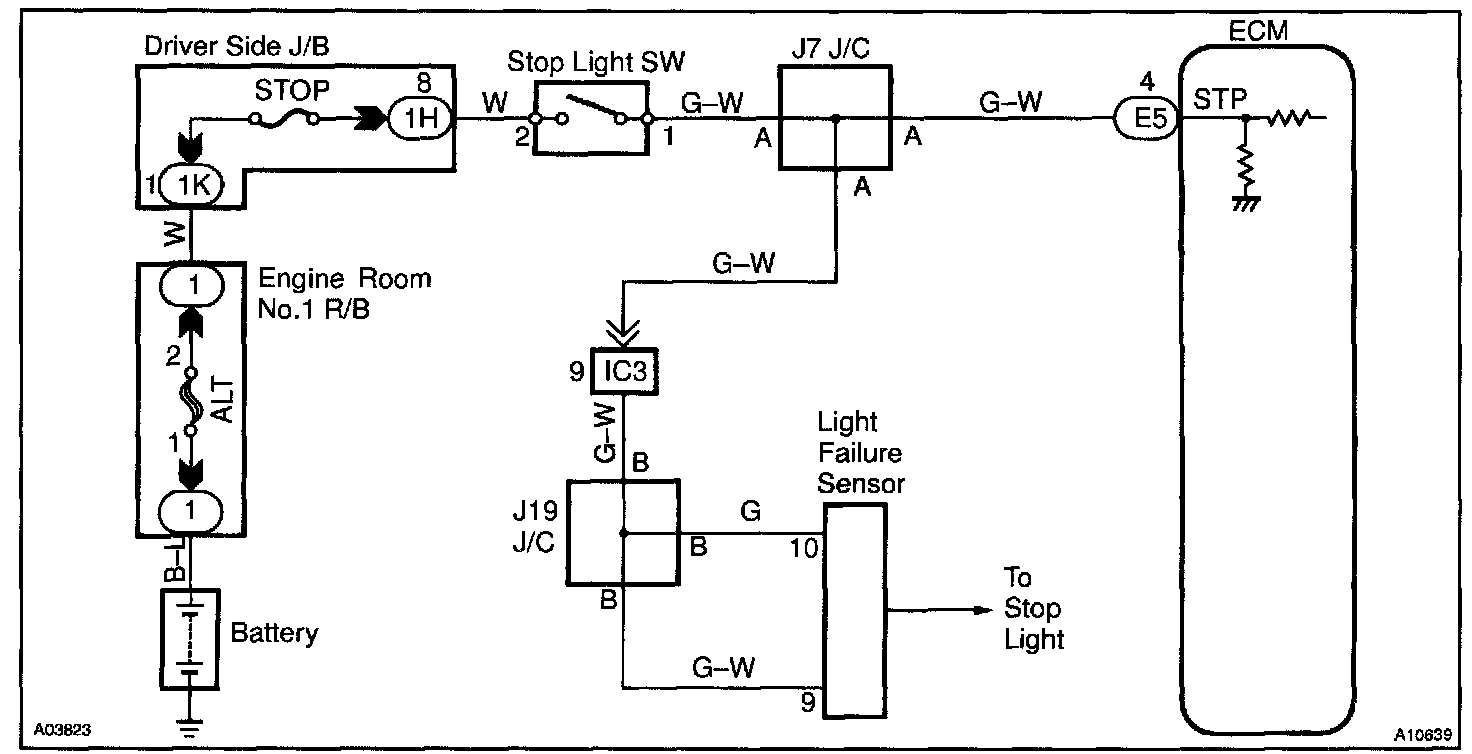

Wiring Diagram:

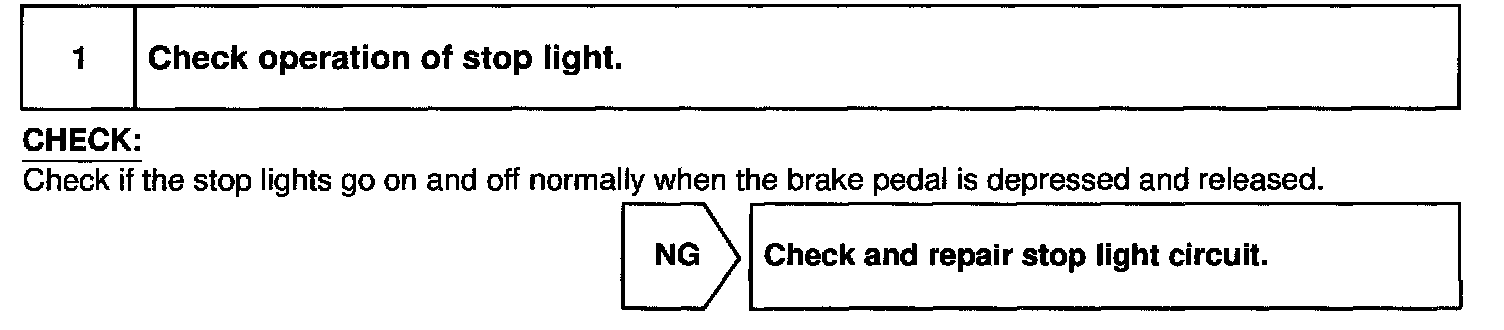

Step 1:

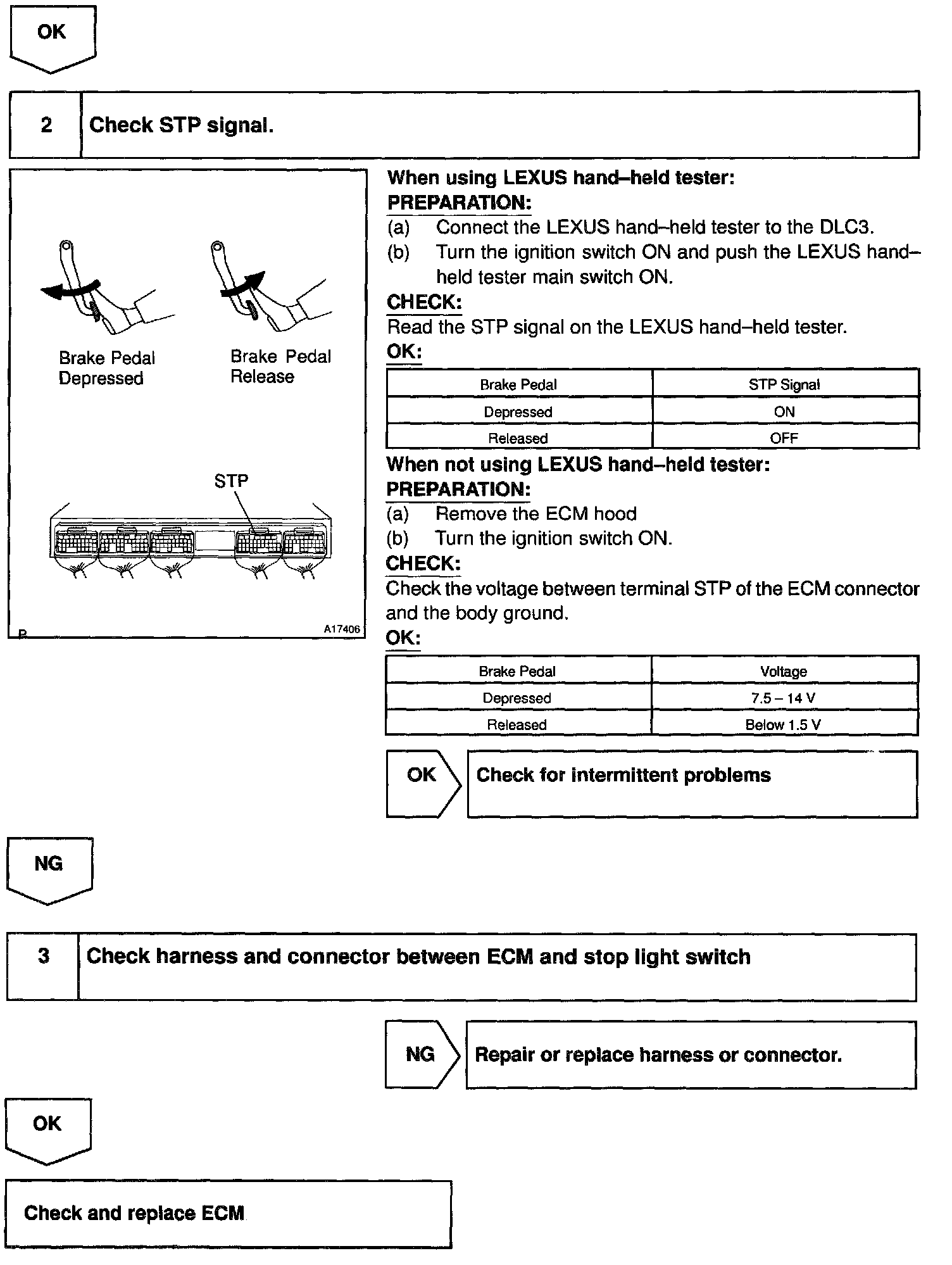

Step 1 (Continued) - 3:

INSPECTION PROCEDURE

HINT: Read freeze frame data using LEXUS hand-held tester or OBD II scan tool. Because freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, it is useful for determining whether the vehicle was running or stopped, the engine was warmed up or not, the air-fuel ratio was lean or rich, etc. at the time of the malfunction.
