P1127 - ETCS Actuator Power Source Circuit Malfunction

CIRCUIT DESCRIPTION

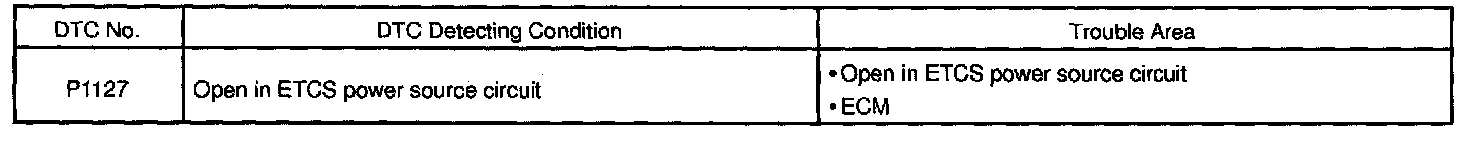

DTC Detecting Condition:

Battery positive voltage is supplied to terminal BM of the ECM even once when the ignition switch is turn OFF.
If this DTC is stored, the ECM shuts down the power for the throttle motor and the electromagnetic clutch, and the throttle valve is fully closed by the return spring.
However, the opening angle of the throttle valve can be controlled by the accelerator pedal through the throttle cable.

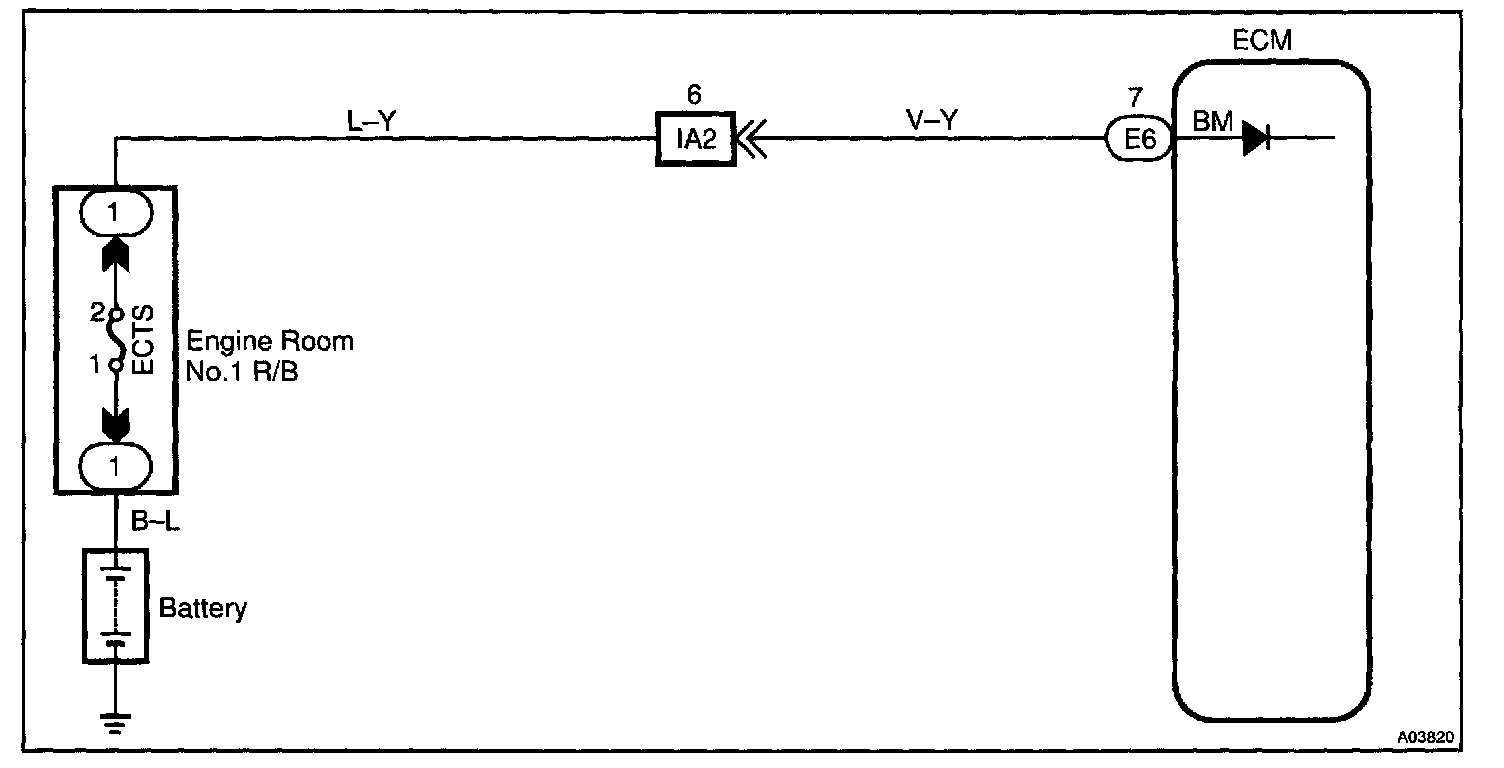

Wiring Diagram:

Step 1 - 2:

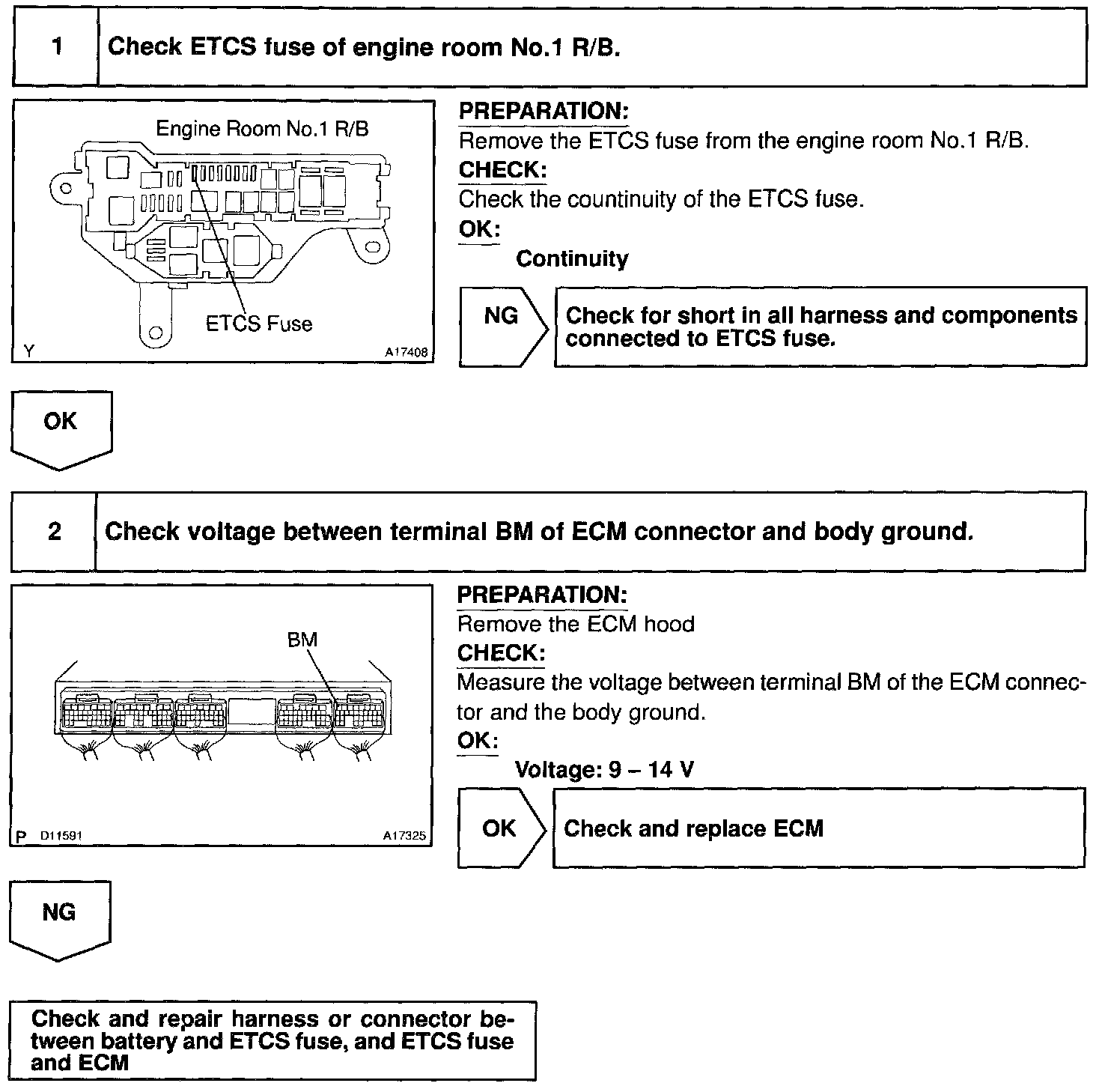

INSPECTION PROCEDURE
