Manufacturer Controlled Trouble Codes

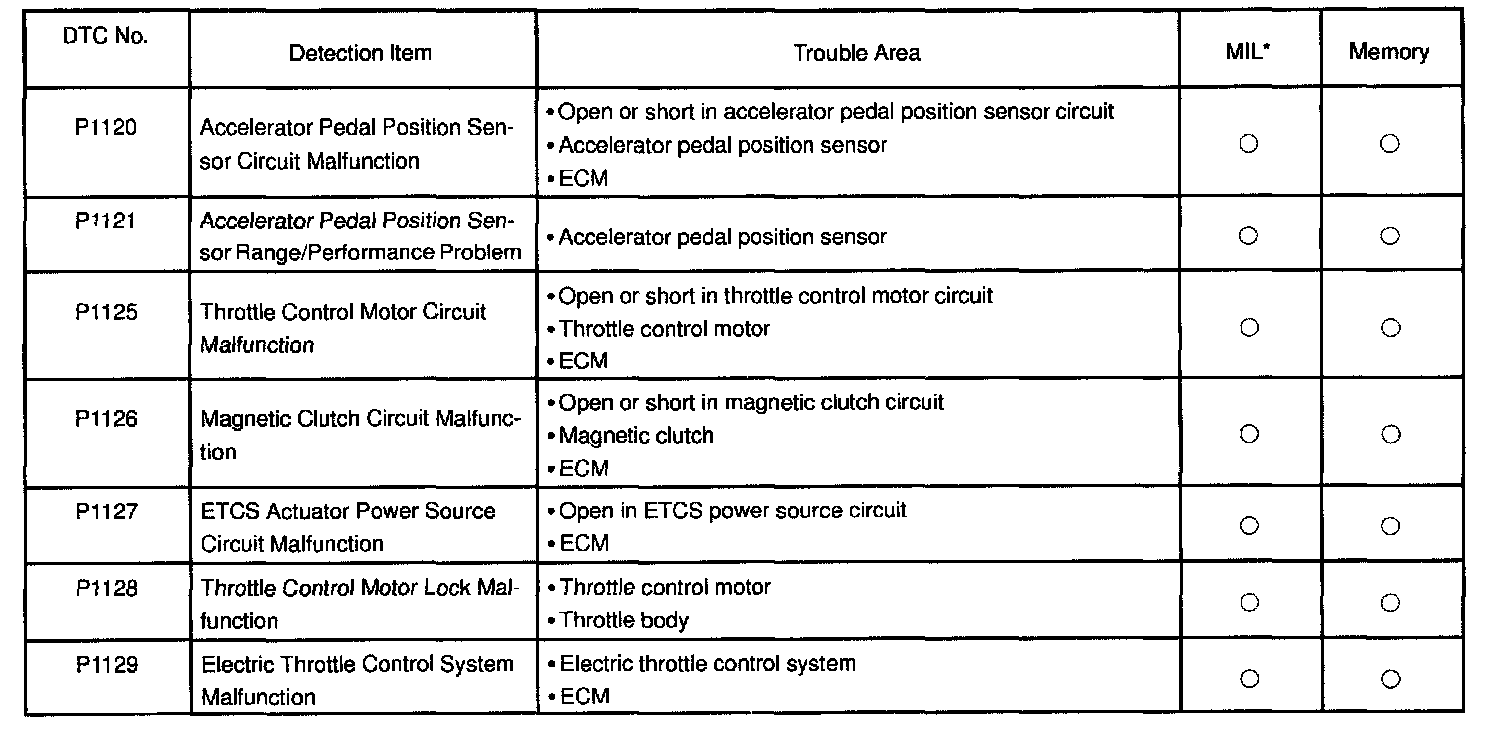

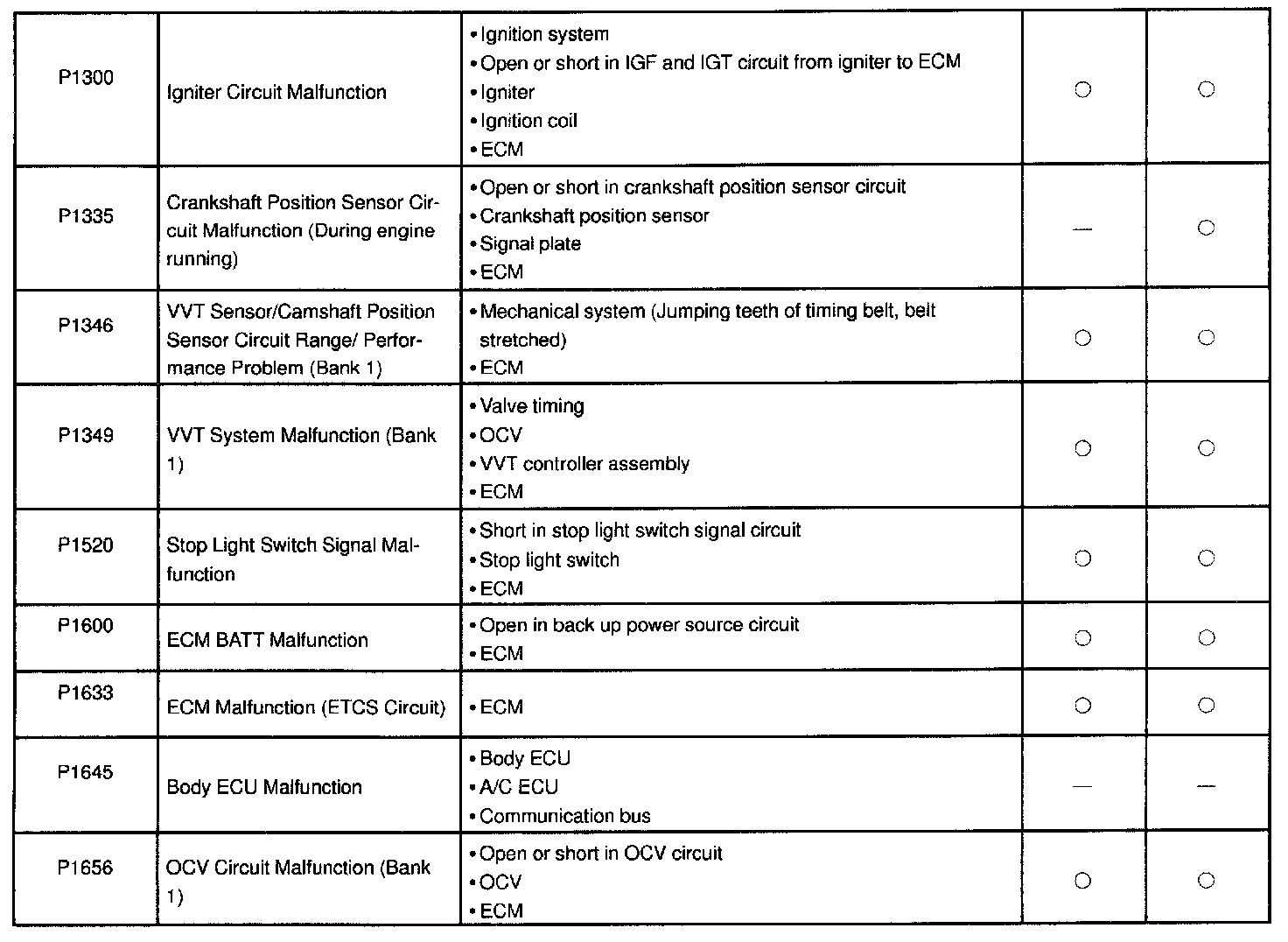

DIAGNOSTIC TROUBLE CODE CHART

HINT:
Parameters listed in the chart may not be exactly the same as your reading due to the type of instrument or other factors
If a malfunction code is displayed during the DTC check in check mode, check the circuit for the codes listed in the table. For details of each code turn to the respective "DTC No." in the DTC chart.
