ABS W/BA & VSC System

C1201/51 - Always ON:

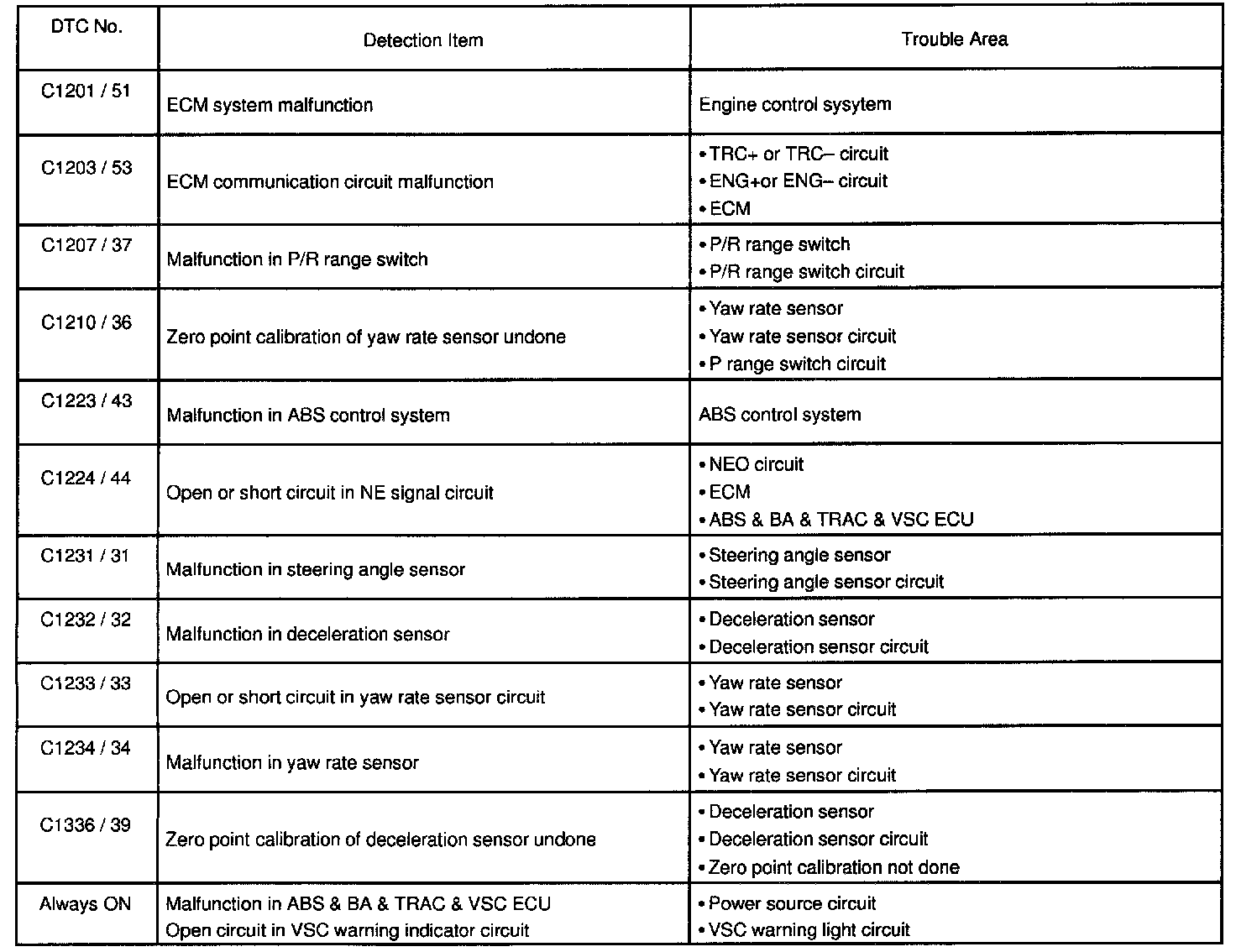

DIAGNOSTIC TROUBLE CODE CHART

NOTE: When removing the part, turn the ignition switch OFF.

HINT:
- Using SST 09843-18020, connect the terminals Tc and E1 of DLC1.
- If any abnormality is not found when inspecting parts, inspect the ECU.
- If a malfunction code is displayed during the DTC check, check the circuit listed for that code. For details of each code, turn to the respective "DTC No." in the DTC chart.

HINT: There is a case that LEXUS hand-held tester cannot be used when VSC warning light is always on.
