C1249 - Stop Light Switch Circuit
DTC Detecting Condition:
CIRCUIT DESCRIPTION

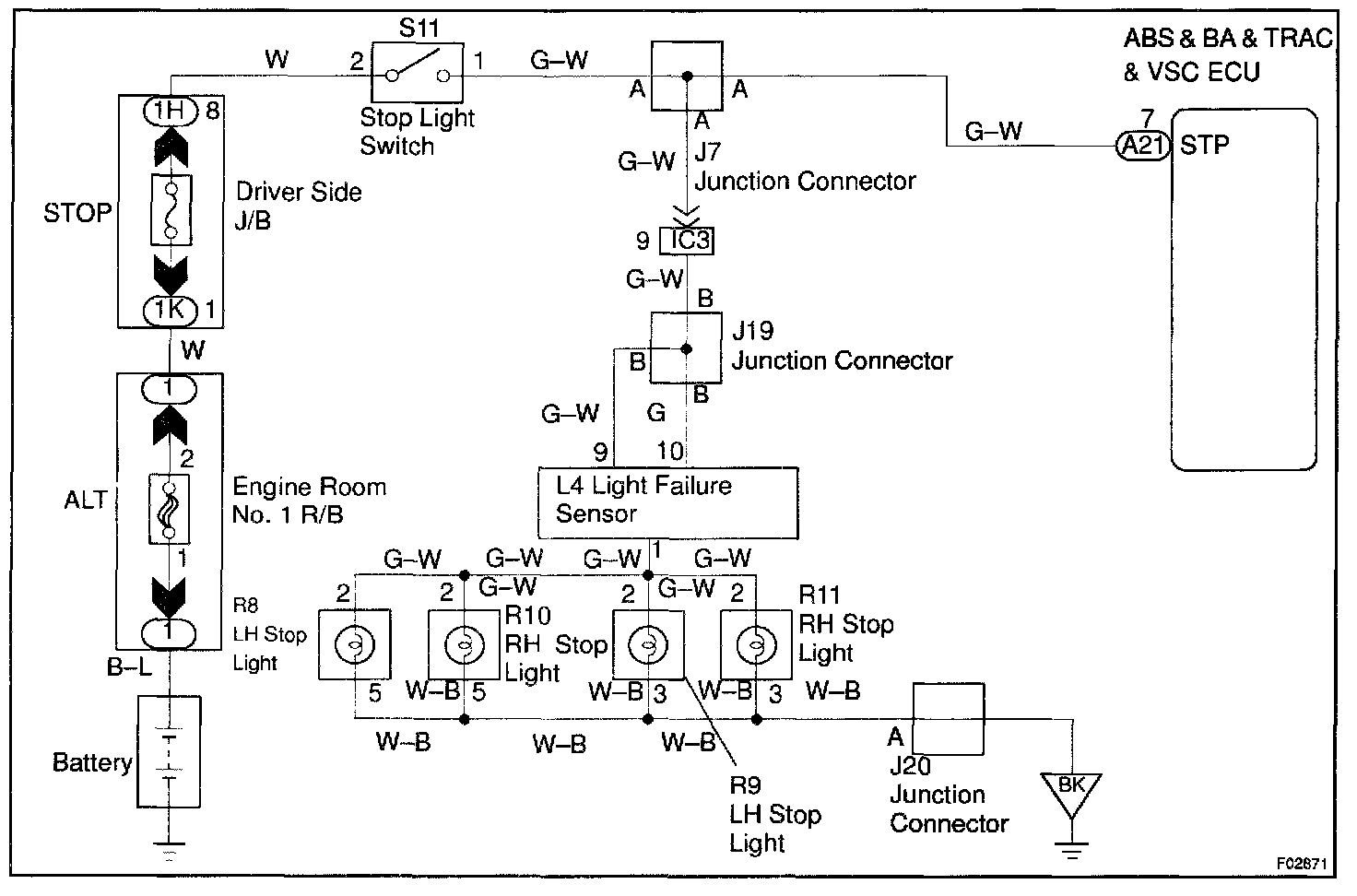

Wiring Diagram:

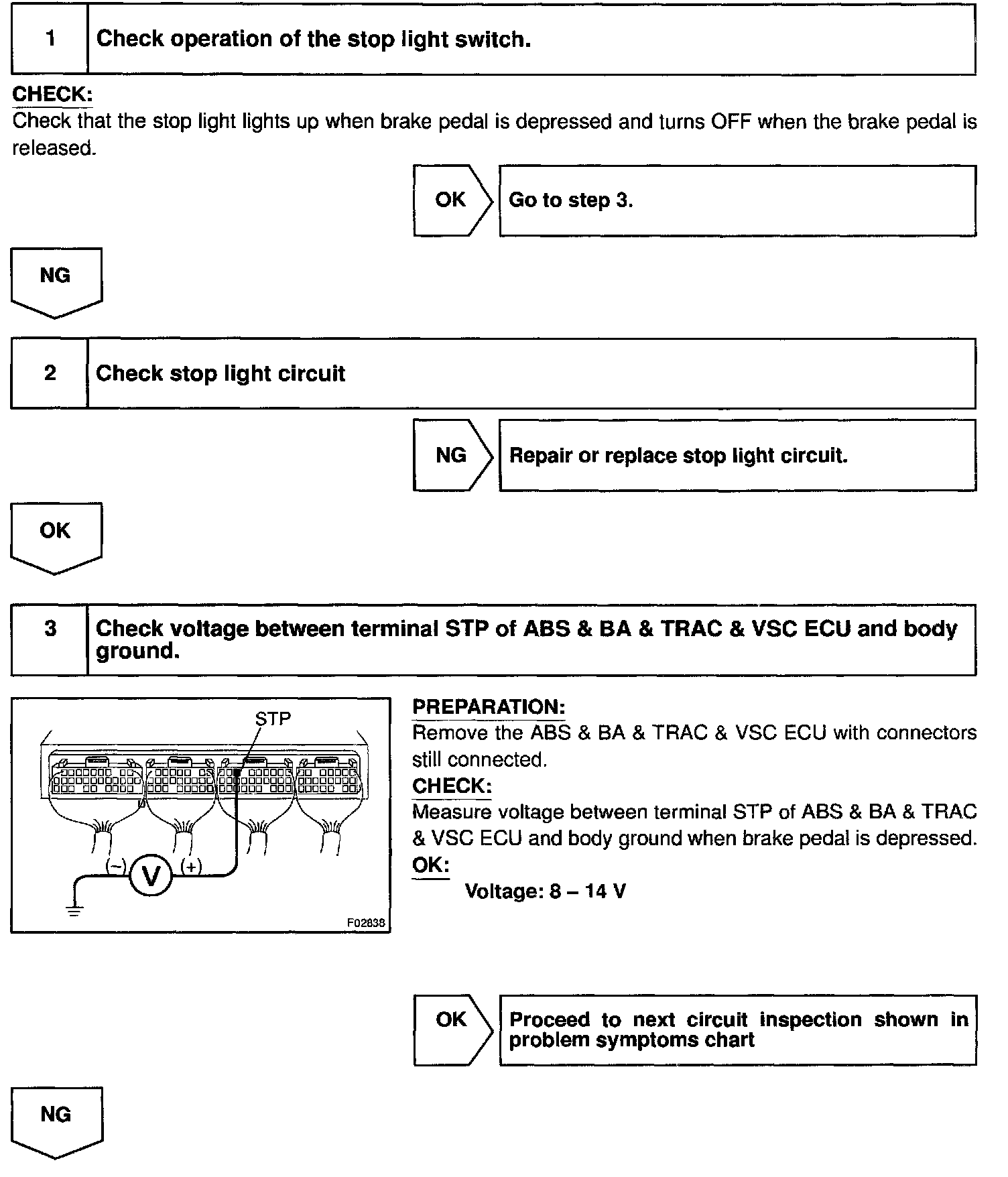

Step 1 - 3:

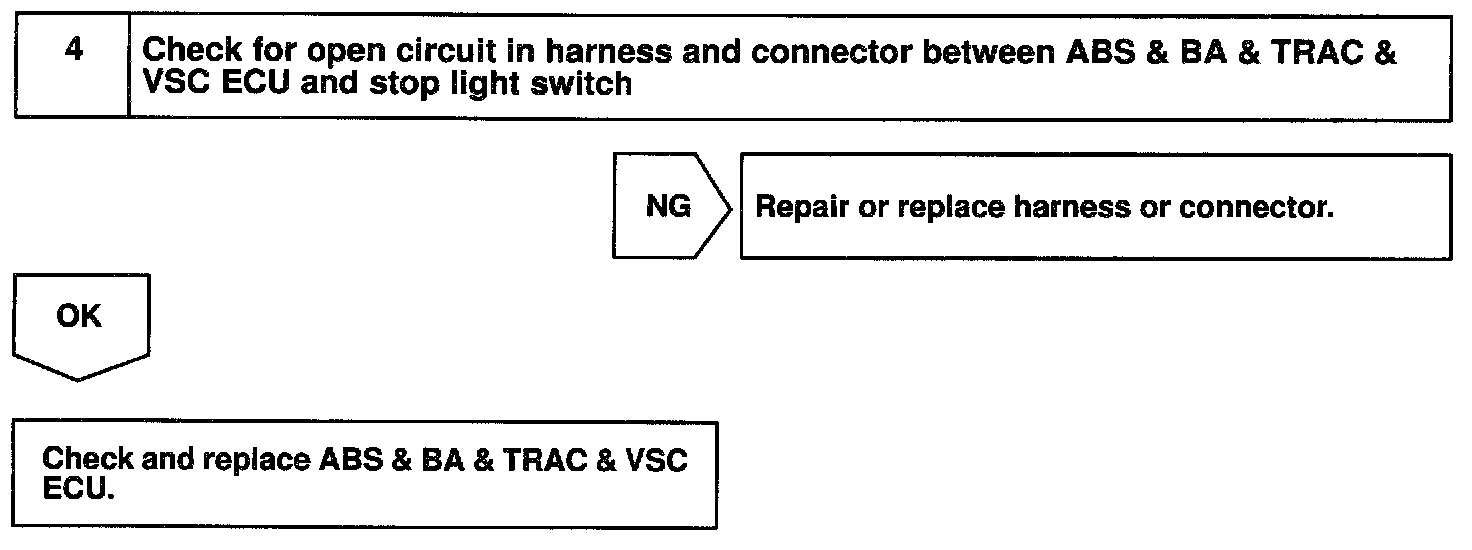

Step 4:
INSPECTION PROCEDURE
