C1227

C1227 - Open or short circuit for SA3 circuit continues for 0.05 sec. or more

CIRCUIT DESCRIPTION




The TRAC & VSC solenoid operates in accordance with signals from the ECU and raises the fluid pressure in and releases it from the brake cylinders.

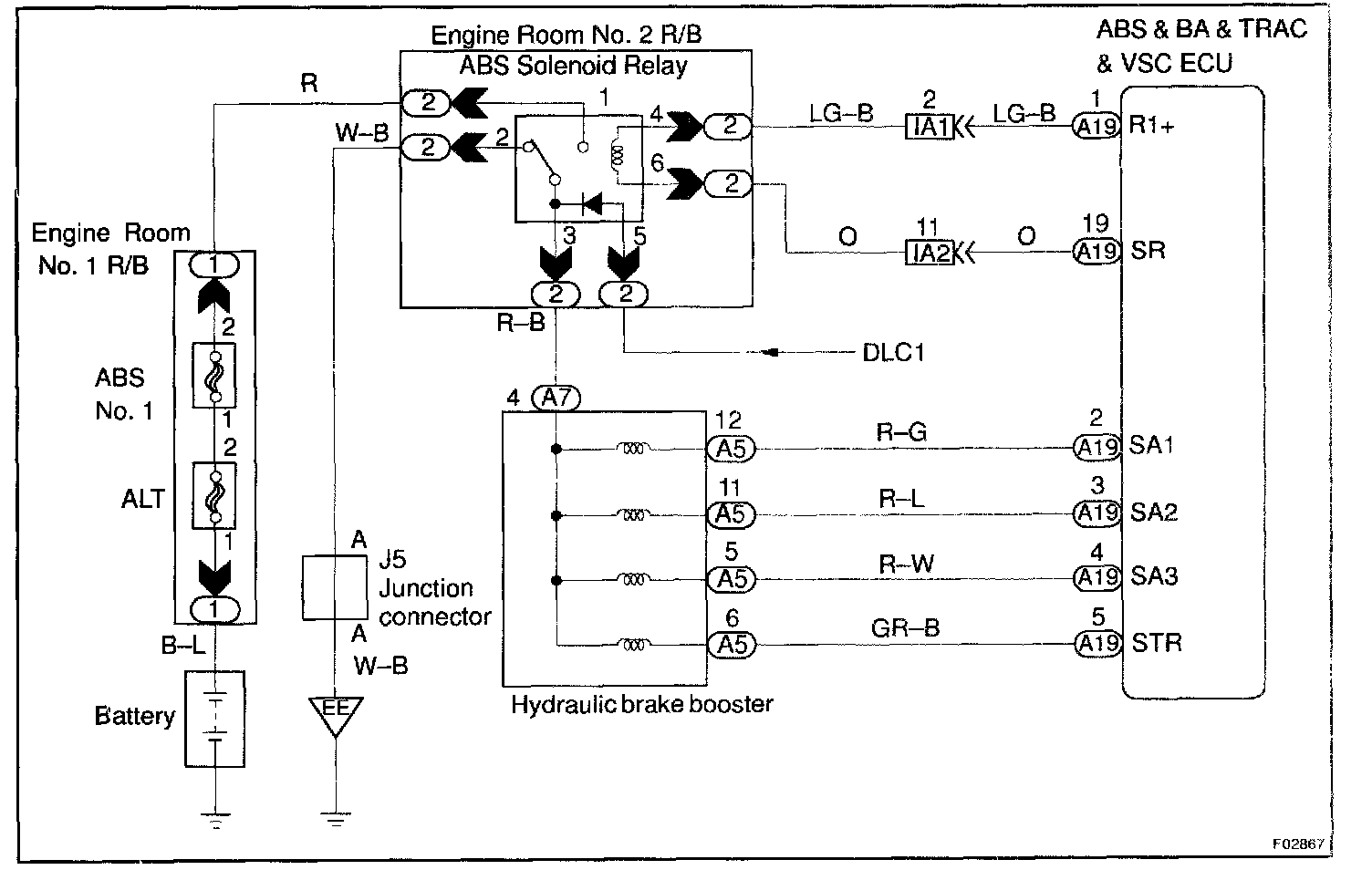

Wiring Diagram:

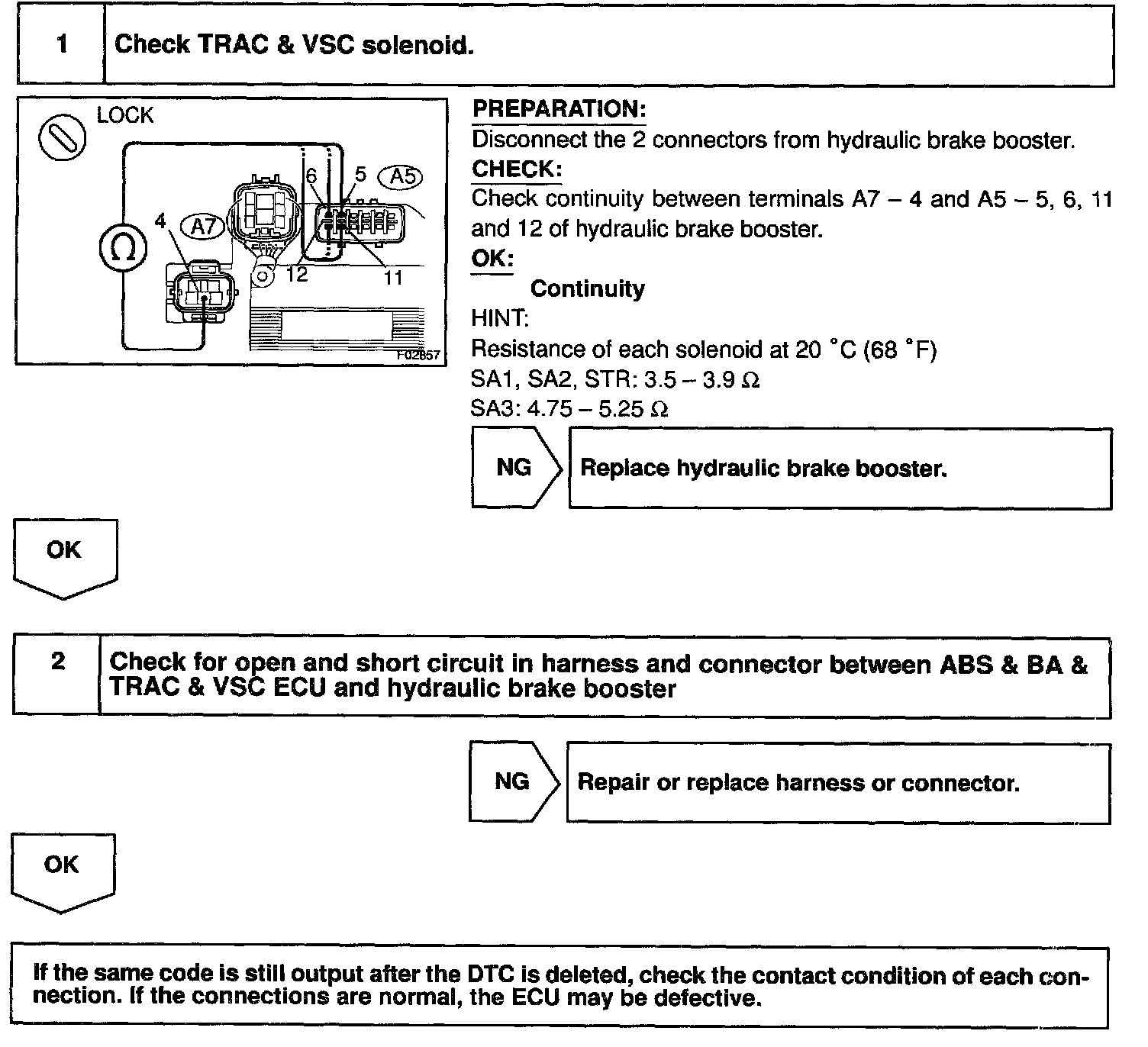

Step 1 - 2:

INSPECTION PROCEDURE
