C0246

C0246 - Open or short in SRRH or SRRR circuit continues for 0.05 sec. or more

CIRCUIT DESCRIPTION

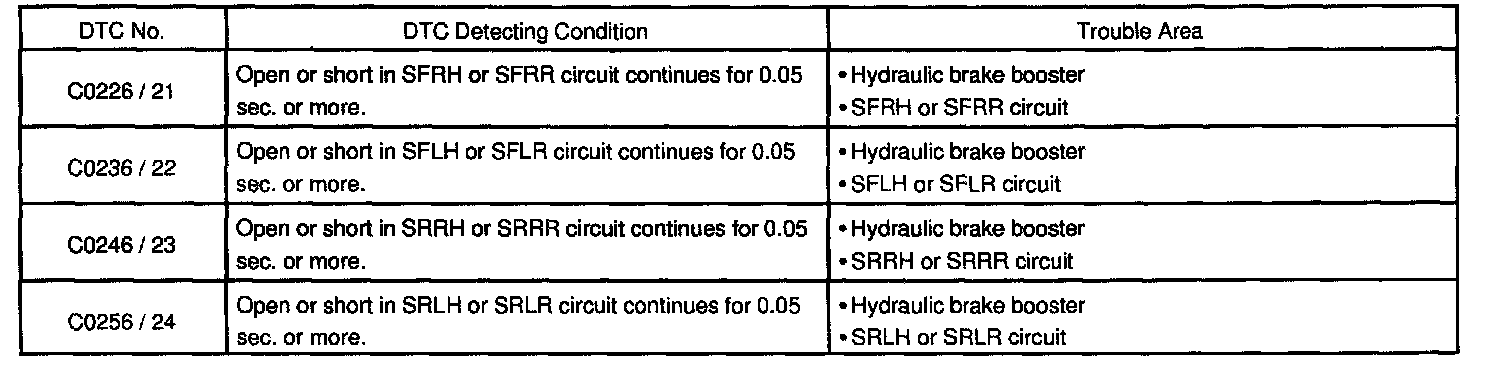

DTC Detecting Condition:

This solenoid goes on when signals are received from the ECU and controls the pressure acting on the wheel cylinders thus controlling the braking force.

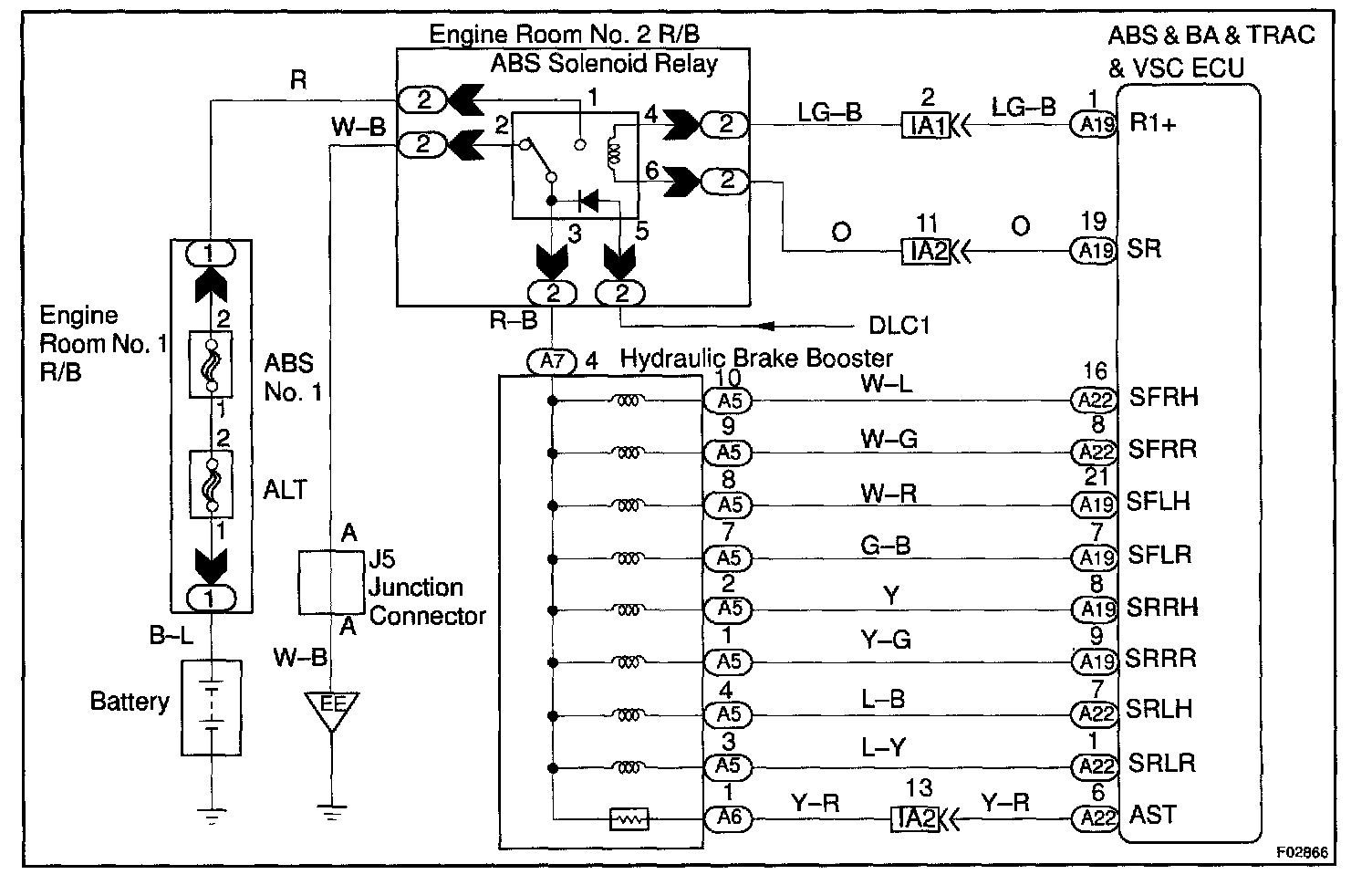

Wiring Diagram:

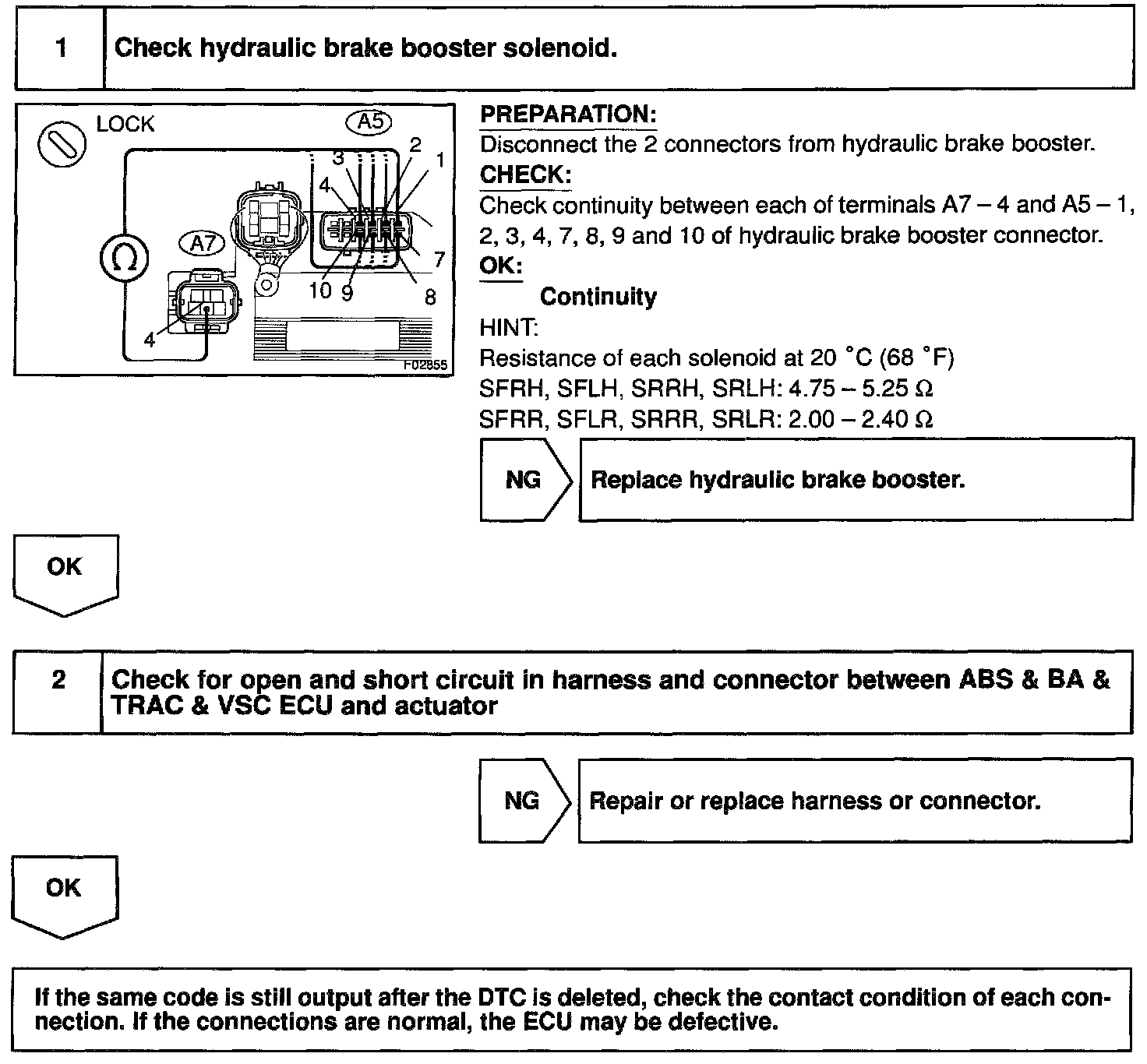

Step 1 - 2:

INSPECTION PROCEDURE
