Air Inlet Damper Control Servomotor Circuit

B1442 - Air Inlet Damper Control Servomotor Circuit

CIRCUIT DESCRIPTION

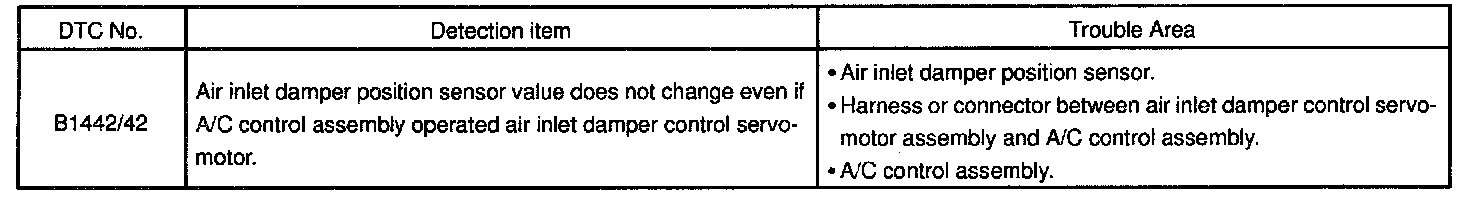

Detection Item:

The air inlet damper control servomotor is controlled by the A/C control assembly and moves the air inlet damper to the desired position.

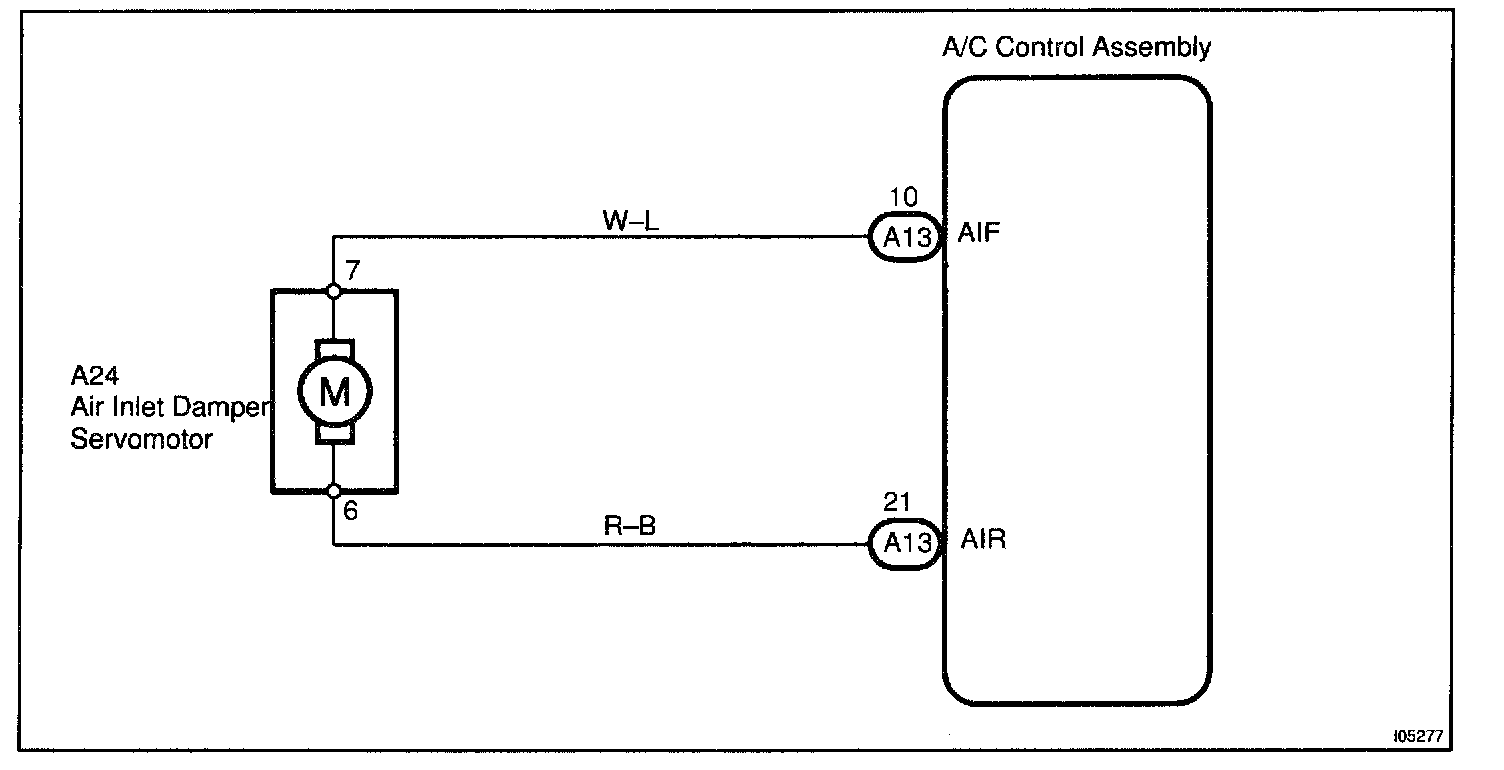

Wiring Diagram:

Step 1:

Step 2 - 3:

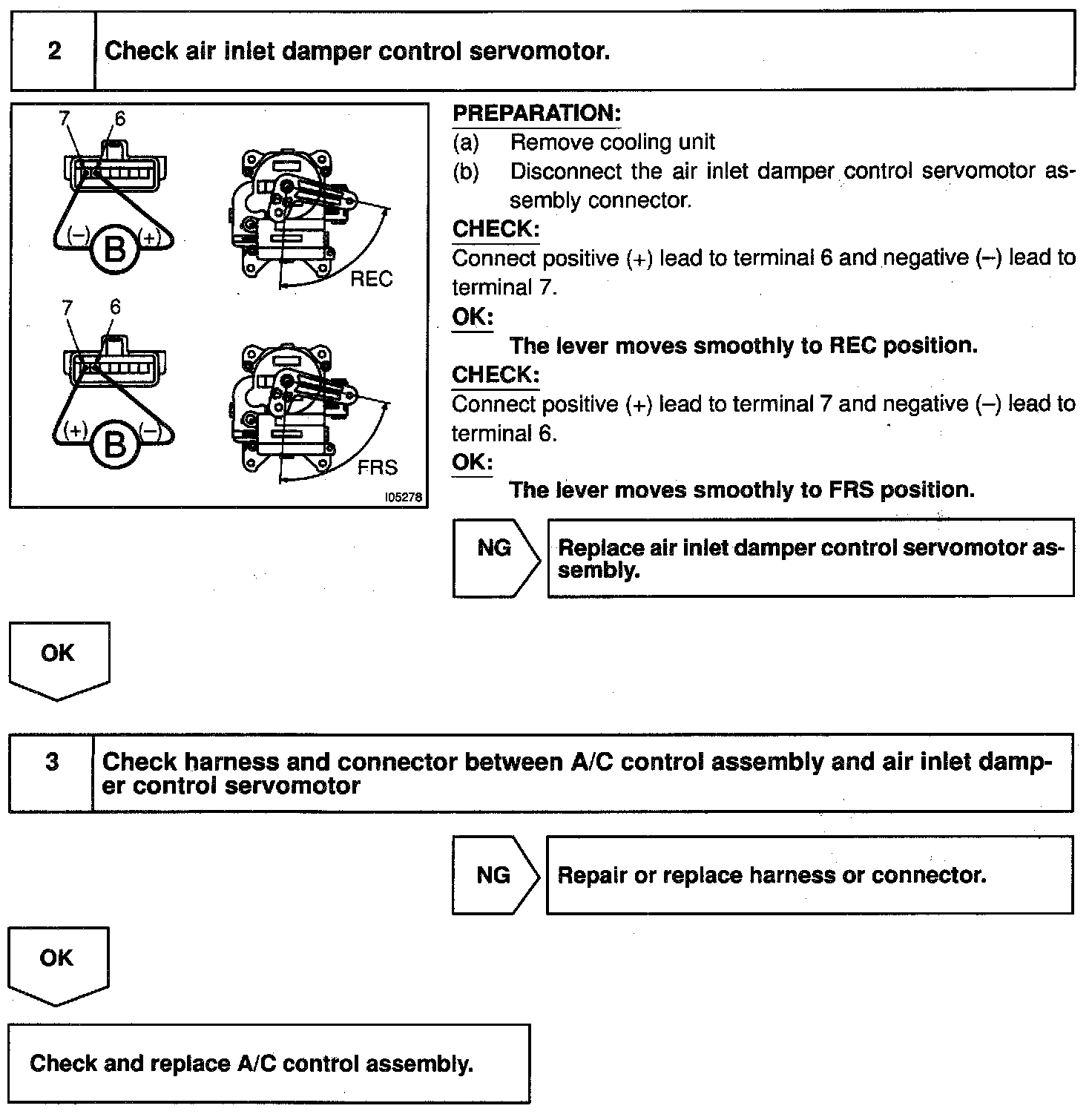

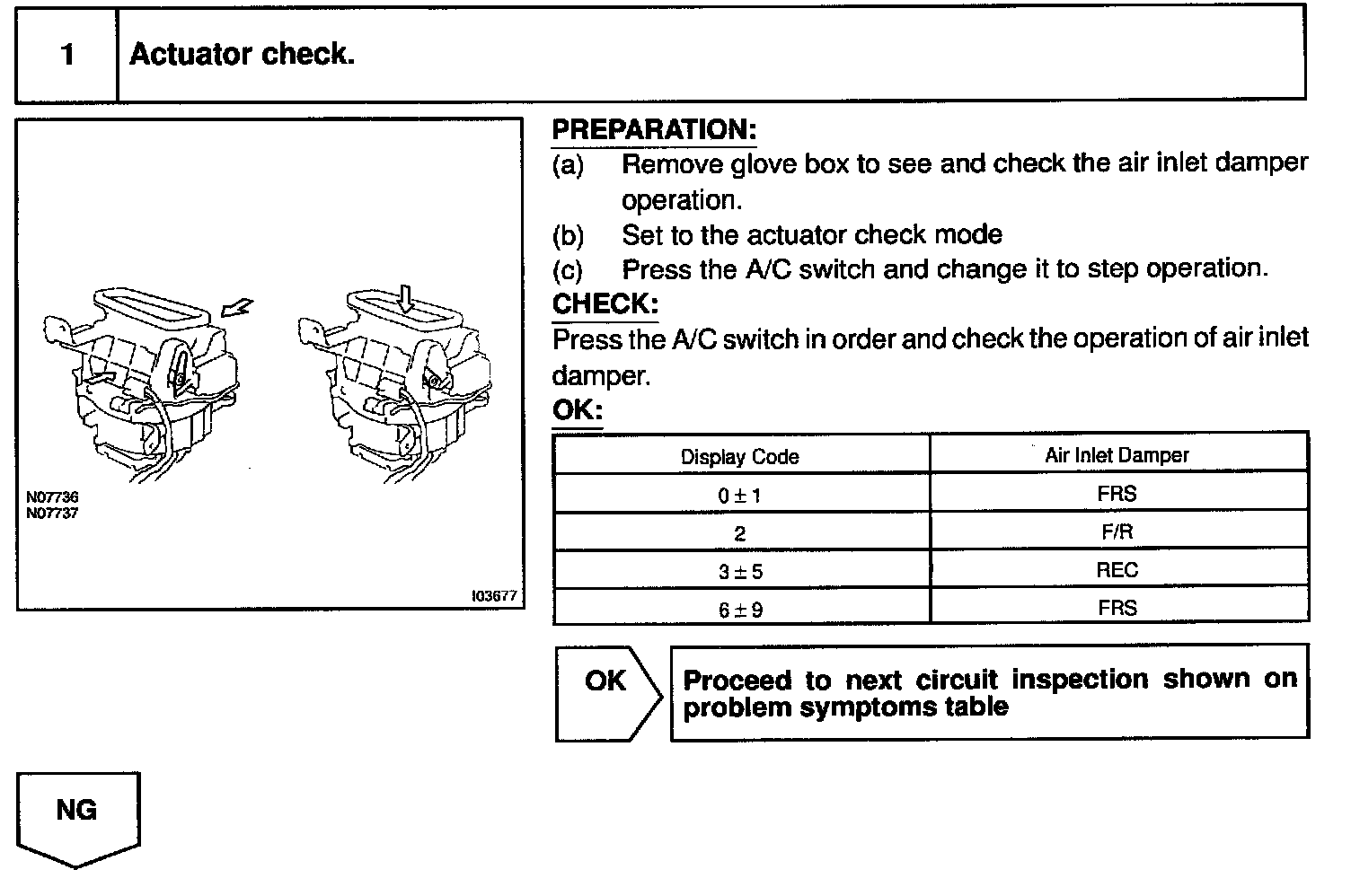

INSPECTION PROCEDURE
