Air Mix Damper Control Servomotor Circuit

B1441 - Air Mix Damper Control Servomotor Circuit (Passenger side)

CIRCUIT DESCRIPTION

Detection Item:

The air mix damper control servomotor is controlled by the A/C control assembly and moves the air mix damper to the desired position

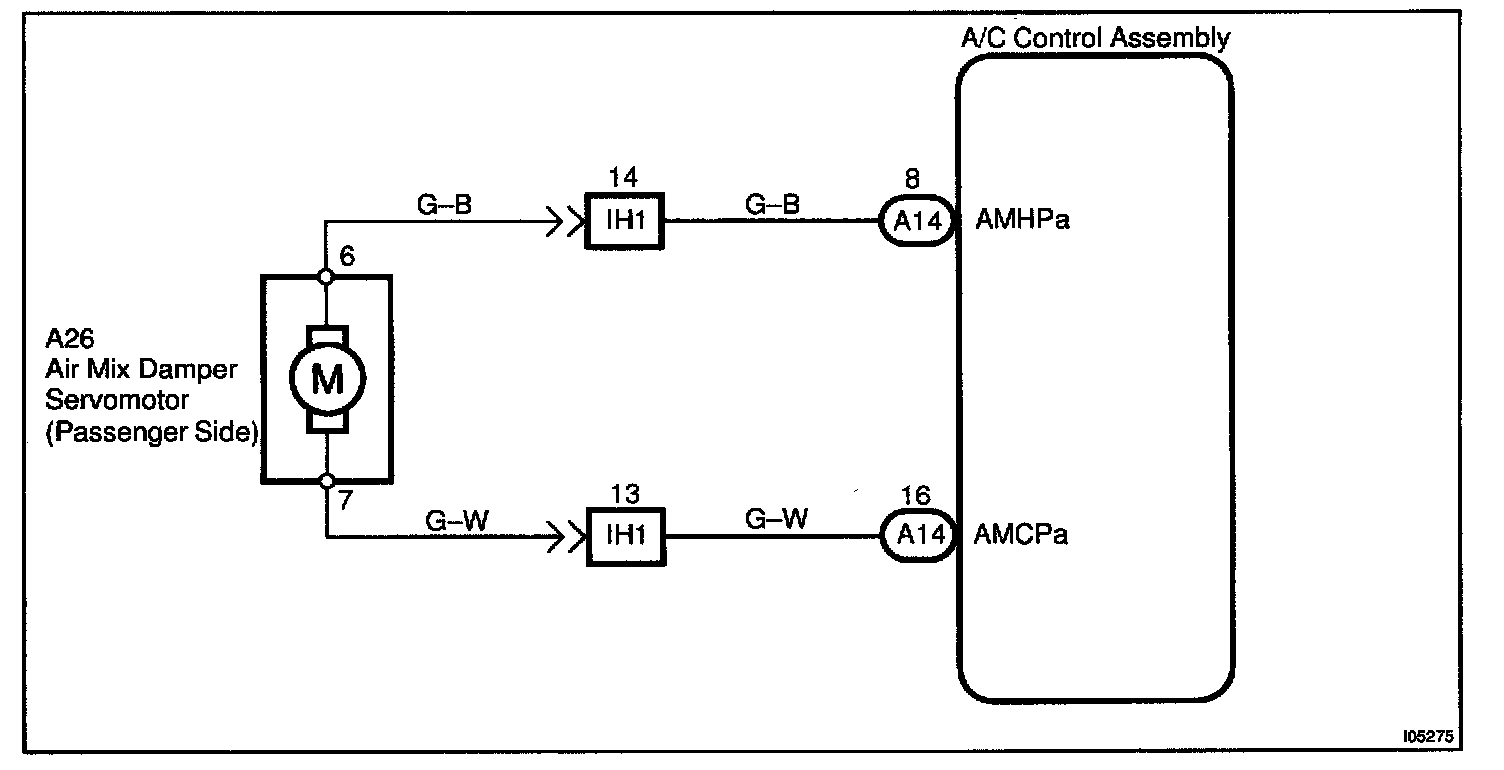

Wiring Diagram:

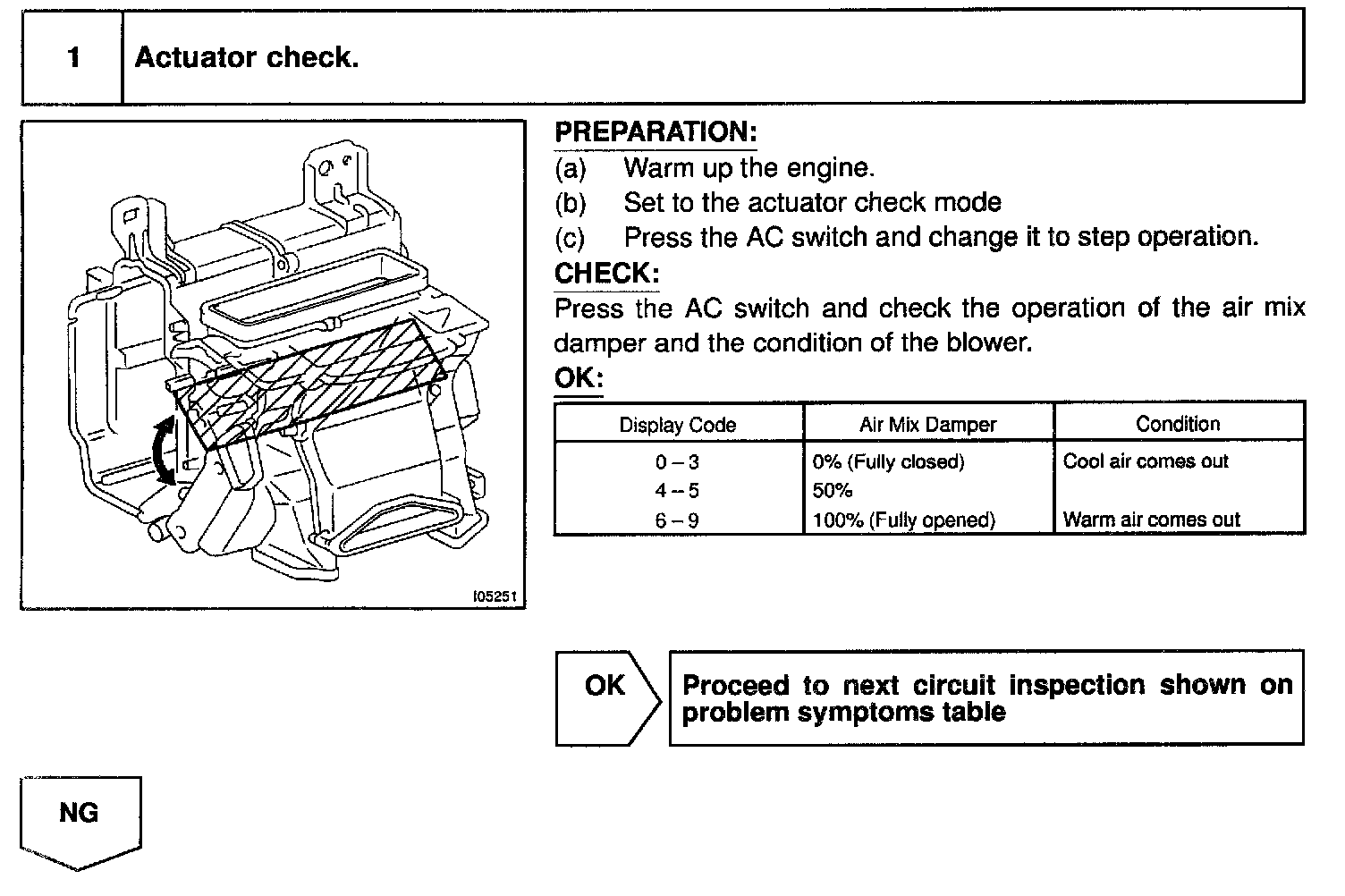

Step 1:

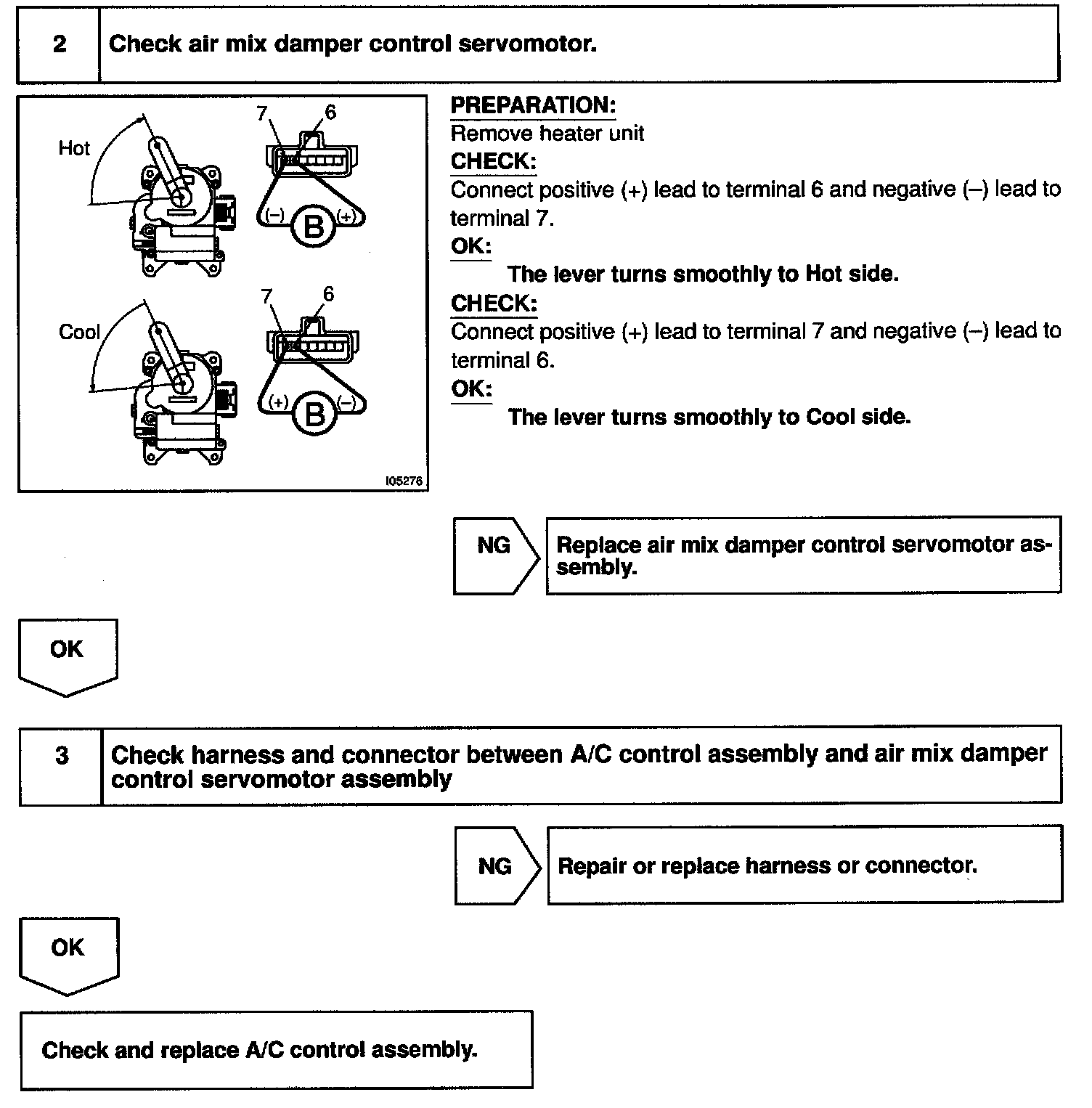

Step 2 - 3:

INSPECTION PROCEDURE
