B1411

B1411 - Room Temperature Sensor Circuit

CIRCUIT DESCRIPTION

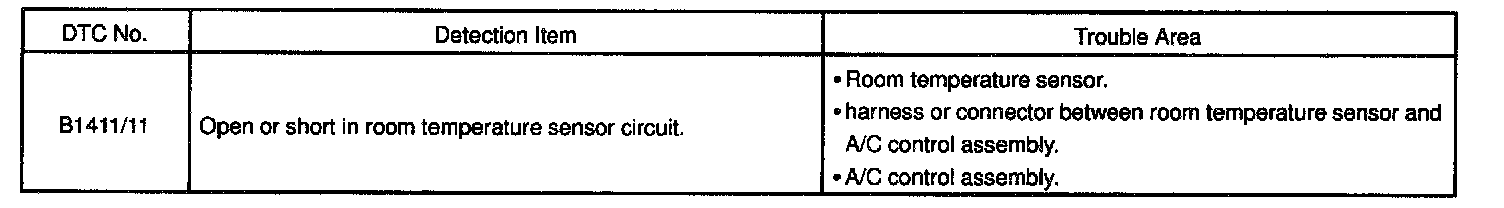

Detection Item:

This sensor detects the temperature inside the cabin and sends the appropriate signals to the A/C control assembly.

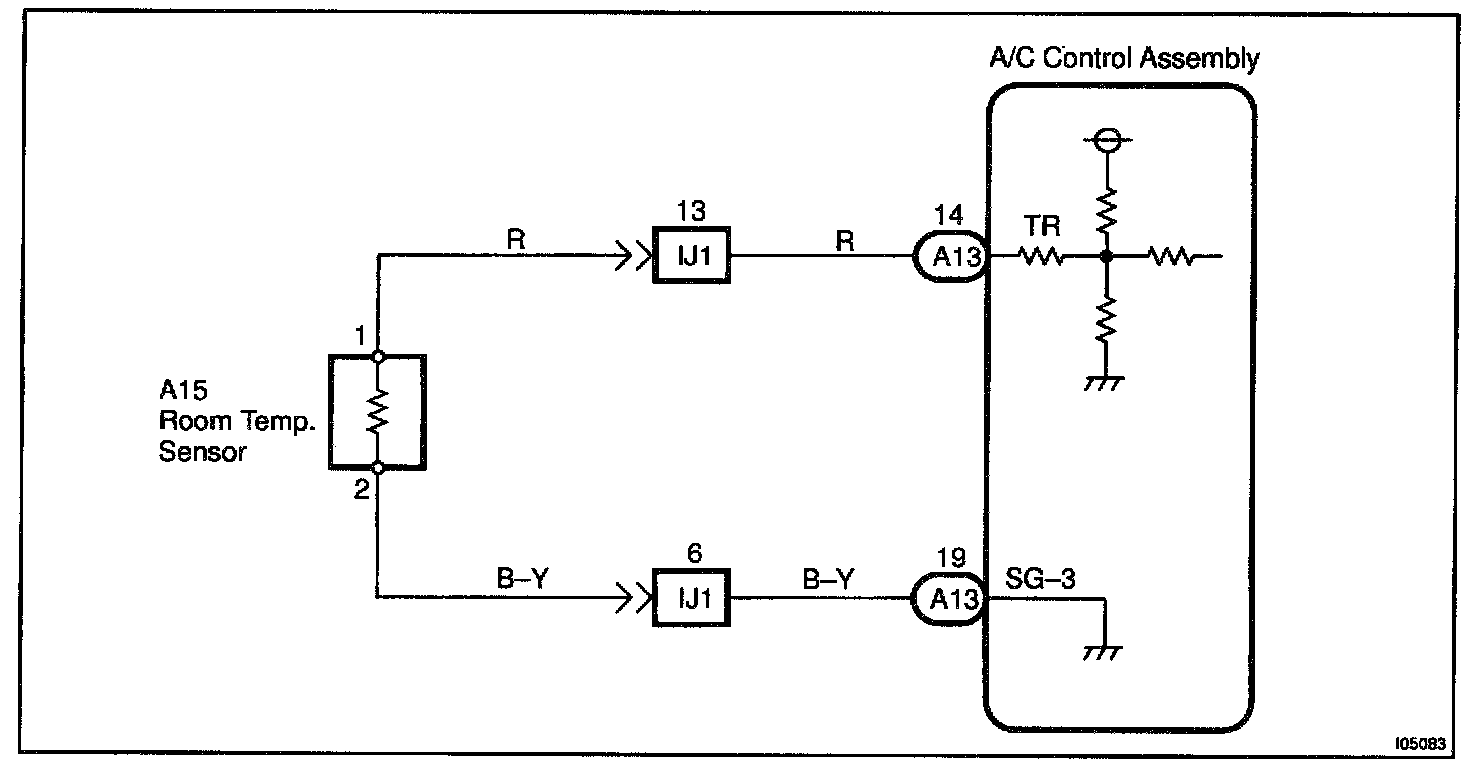

Wiring Diagram:

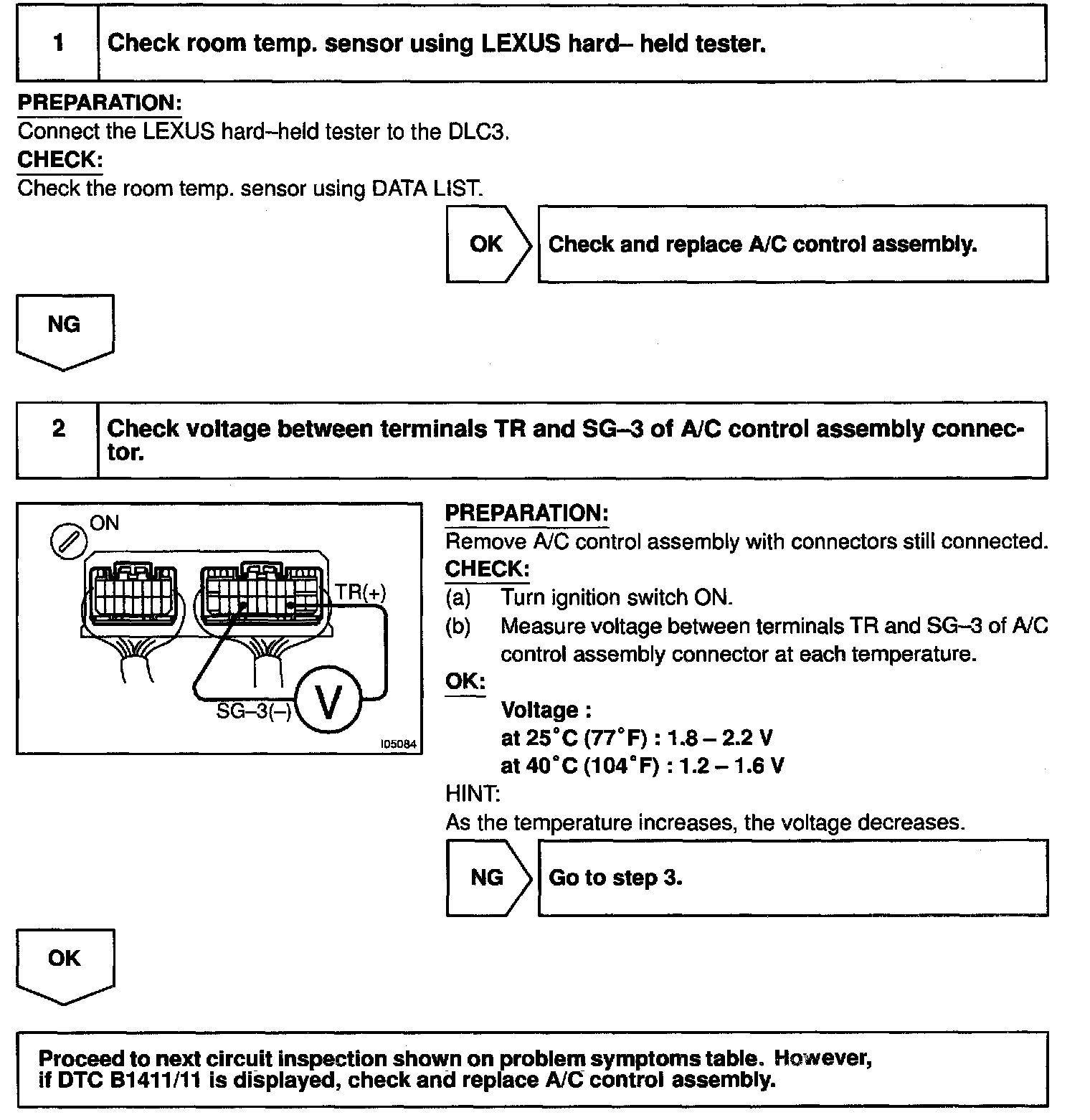

Step 1 - 2:

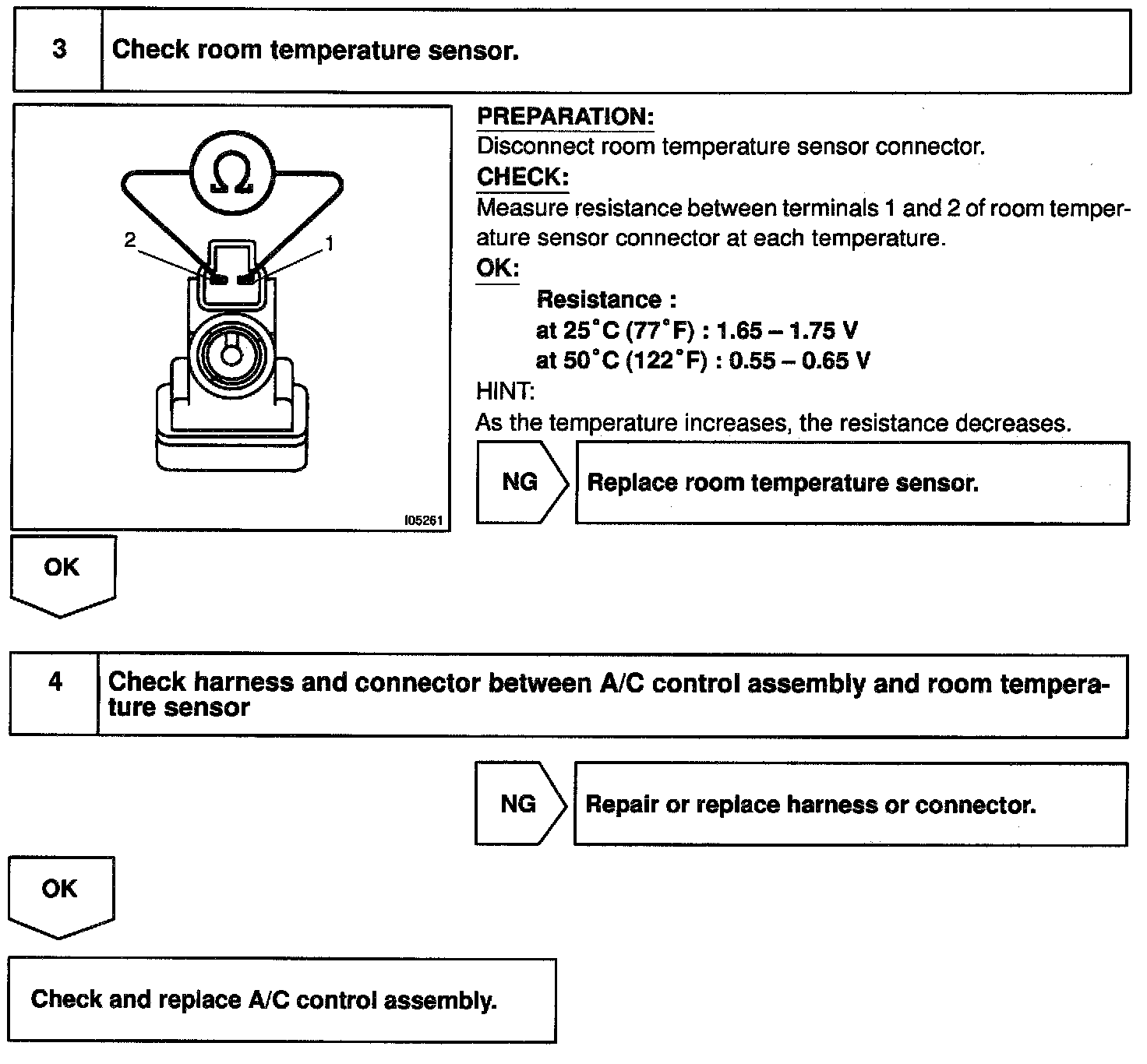

Step 3 - 4:

INSPECTION PROCEDURE

HINT: In case of using the LEXUS hand-held tester, start the inspection step 1 and in case of not using the LEXUS hand-held tester, start from step 2.
