B1273

B1273 - Sliding roof ECU communication stop (w/ Sliding roof vehicle only)

CIRCUIT DESCRIPTION

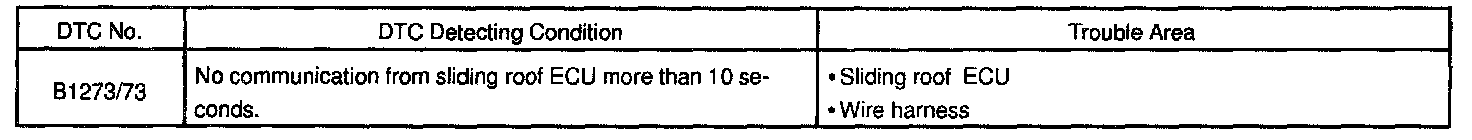

DTC Detecting Condition:

This DTC is output when communication stops between sliding roof ECU and Body ECU No.1.

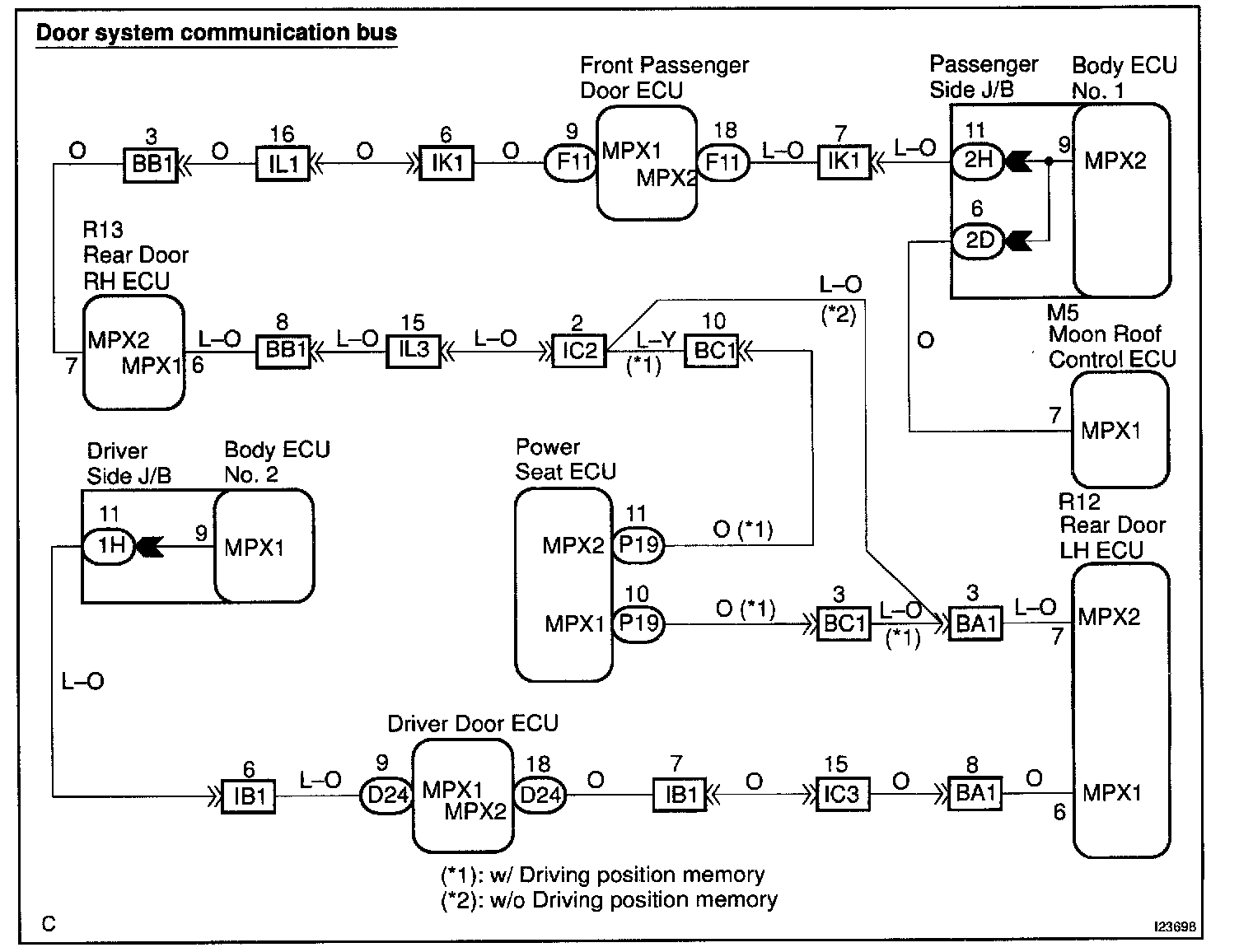

Wiring Diagram:

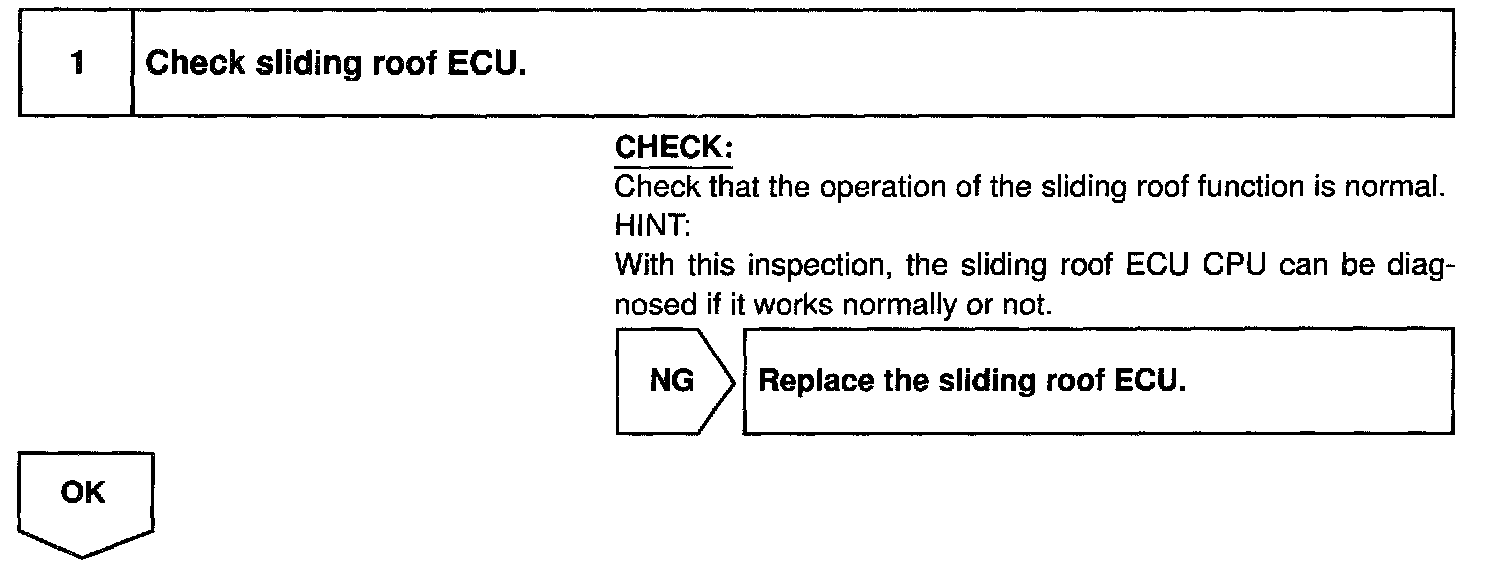

Step 1:

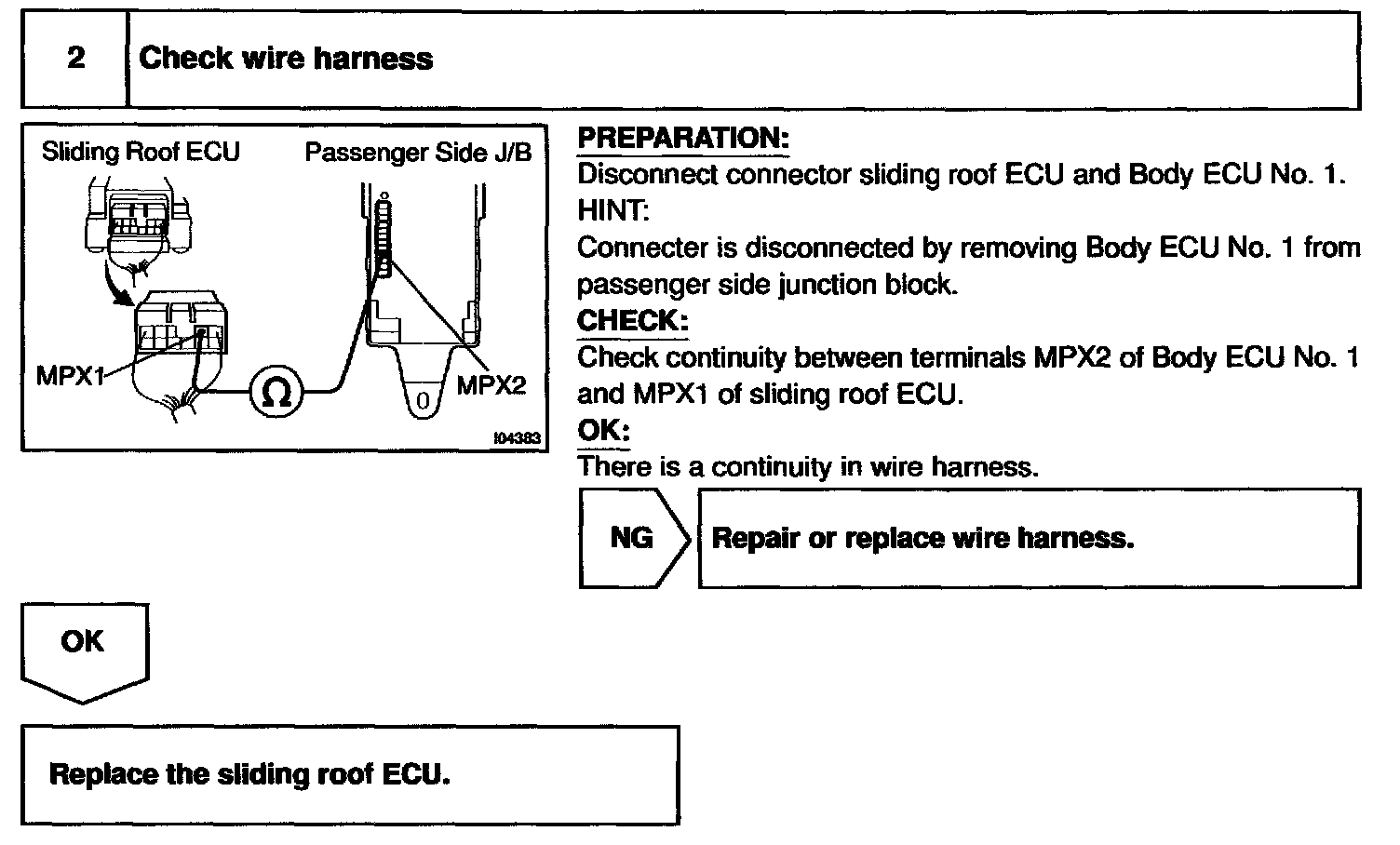

Step 2:

INSPECTION PROCEDURE
