B1272

B1272 - Power Seat ECU Communication Stop (W/ Seat Memory Vehicle Only)

CIRCUIT DESCRIPTION

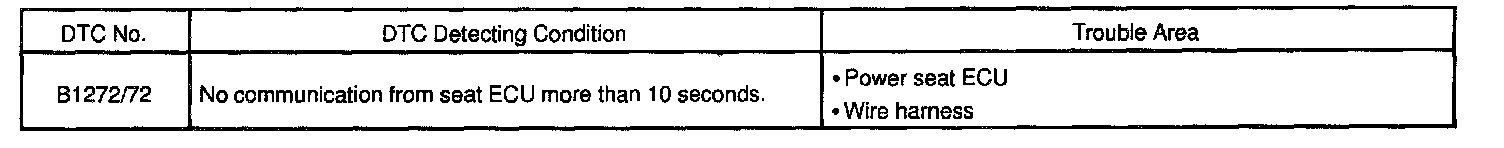

DTC Detecting Condition:

This DTC is output when communication stops between power seat ECU and Body No.1 ECU.

Wiring Diagram:

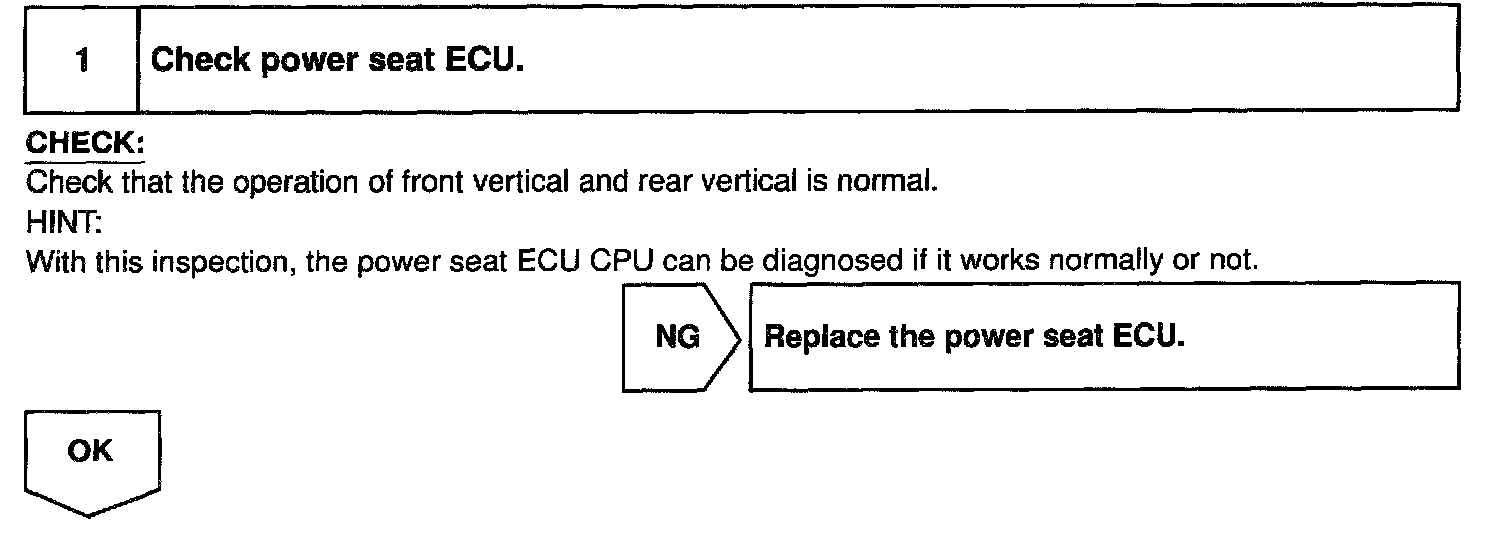

Step 1:

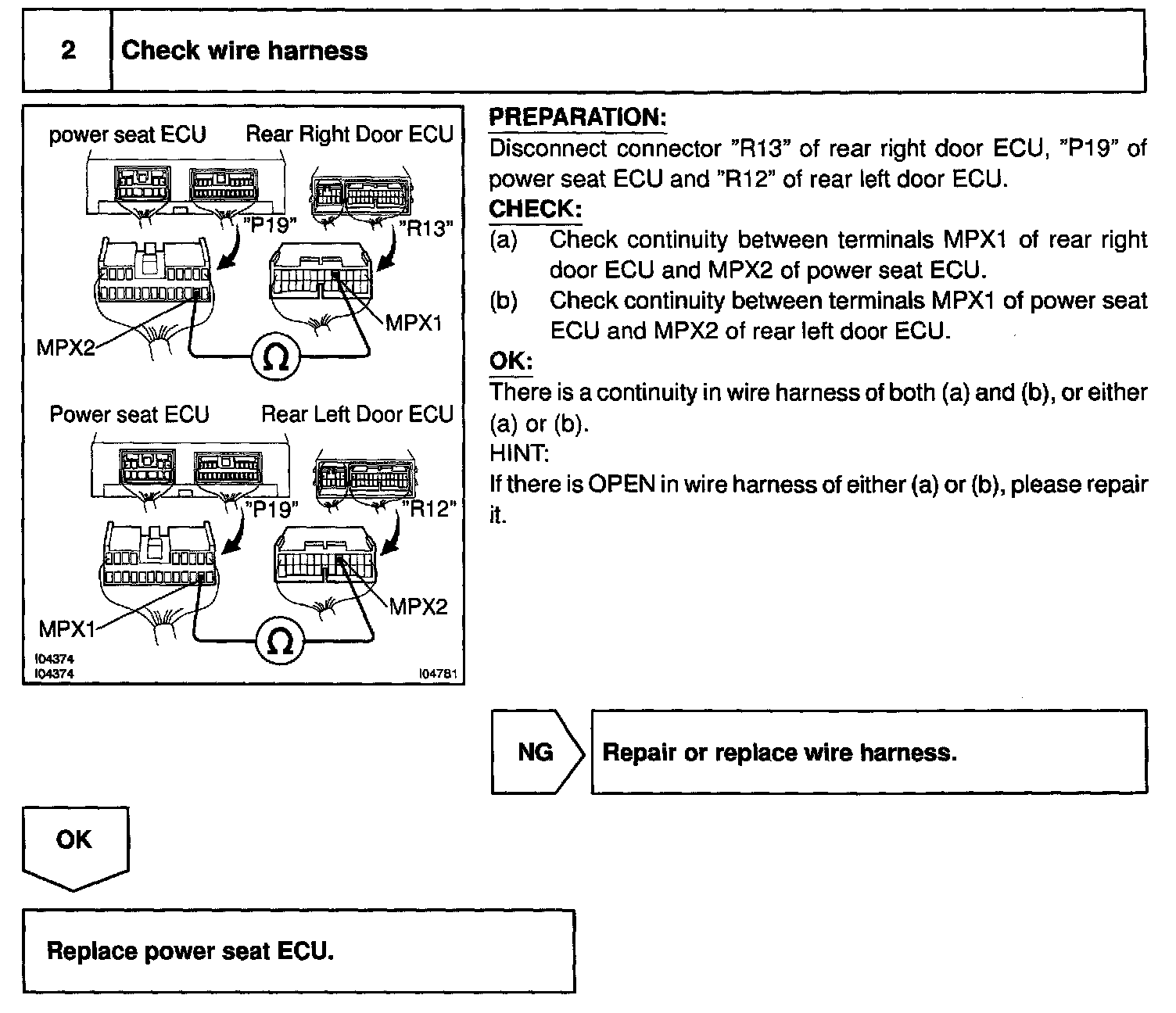

Step 2:

INSPECTION PROCEDURE
