B1244

B1244 - Light Sensor Circuit Malfunction

CIRCUIT DESCRIPTION

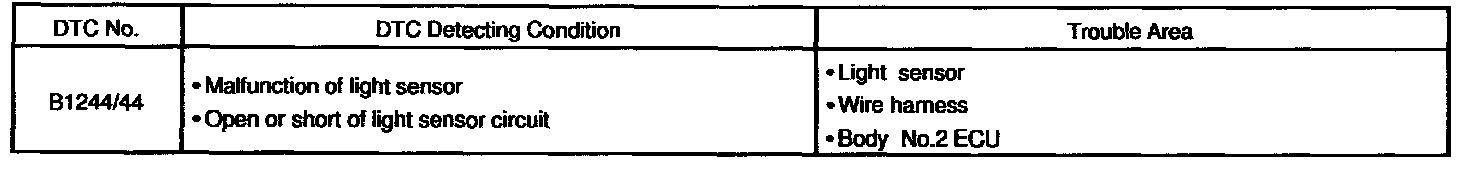

DTC Detecting Condition:

This DTC is output when failure of light sensor circuit is detected.

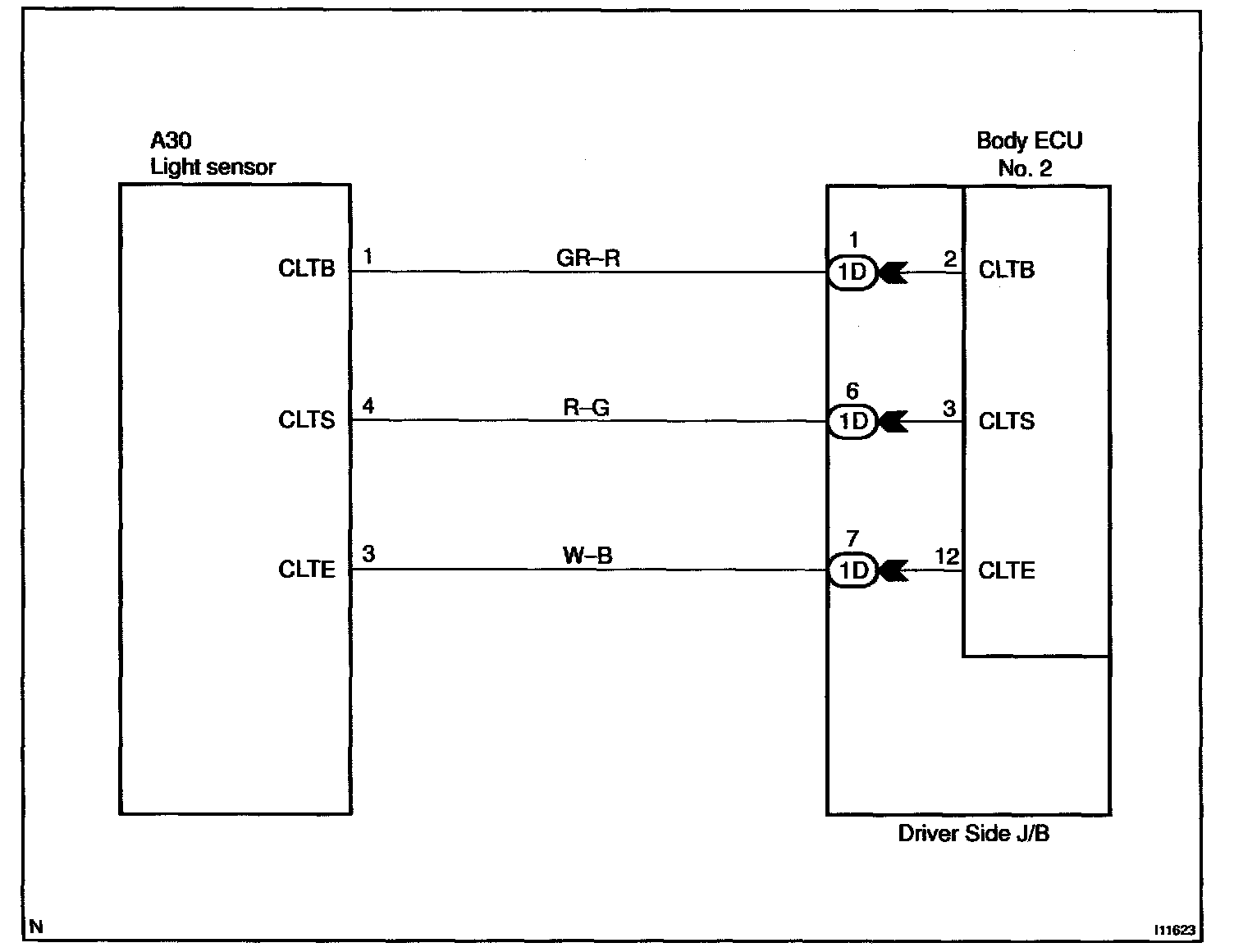

Wiring Diagram:

Step 1 - 2:

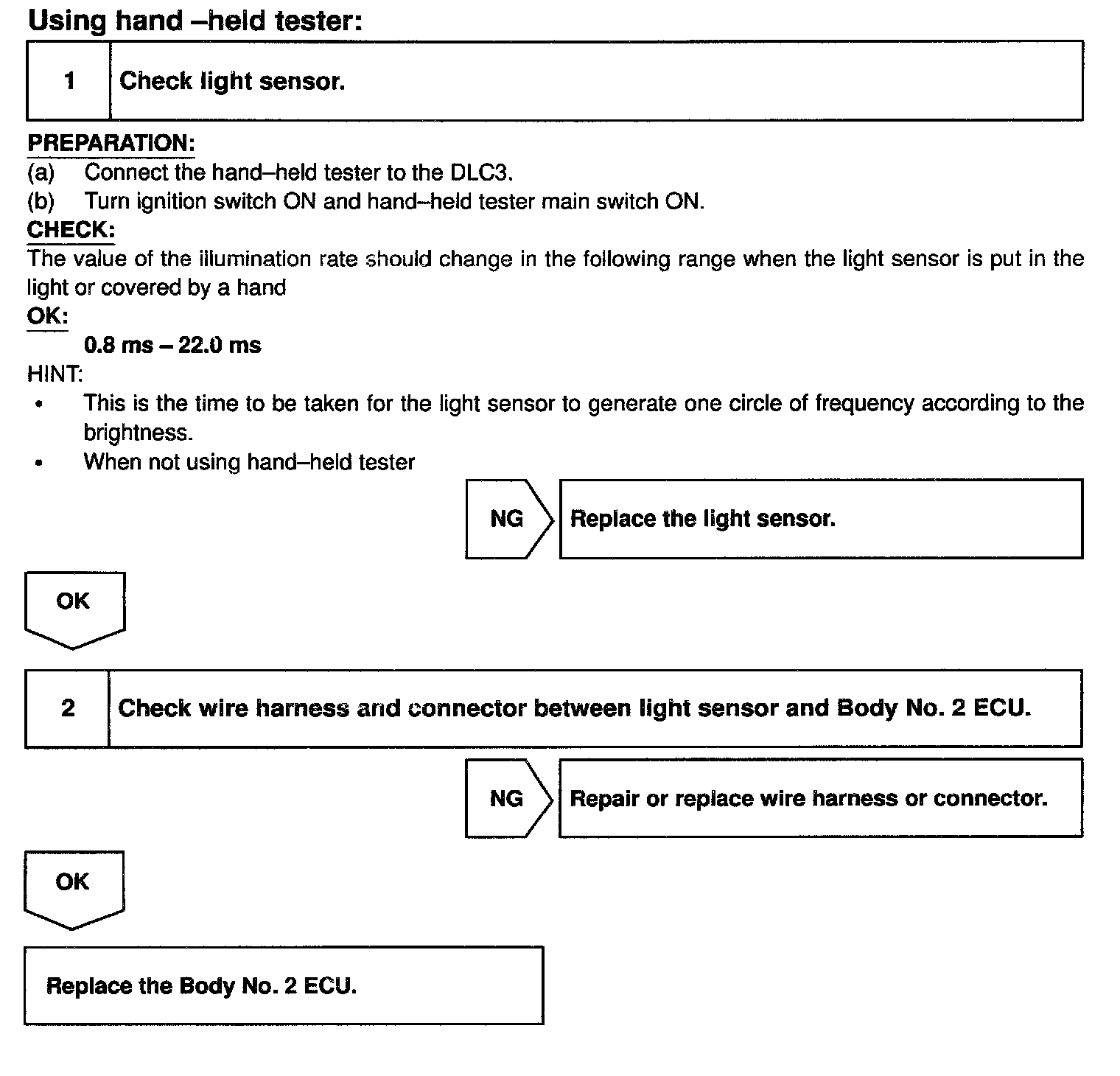

INSPECTION PROCEDURE
