B0122

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The seat belt buckle switch (RH) circuit consists of the airbag sensor assembly and seat belt buckle switch (RH).

For details of the function of each component, see DESCRIPTION AND OPERATION.

DTC B0121/B0122/26 is recorded when a malfunction is detected in the seat belt buckle switch (RH) circuit.

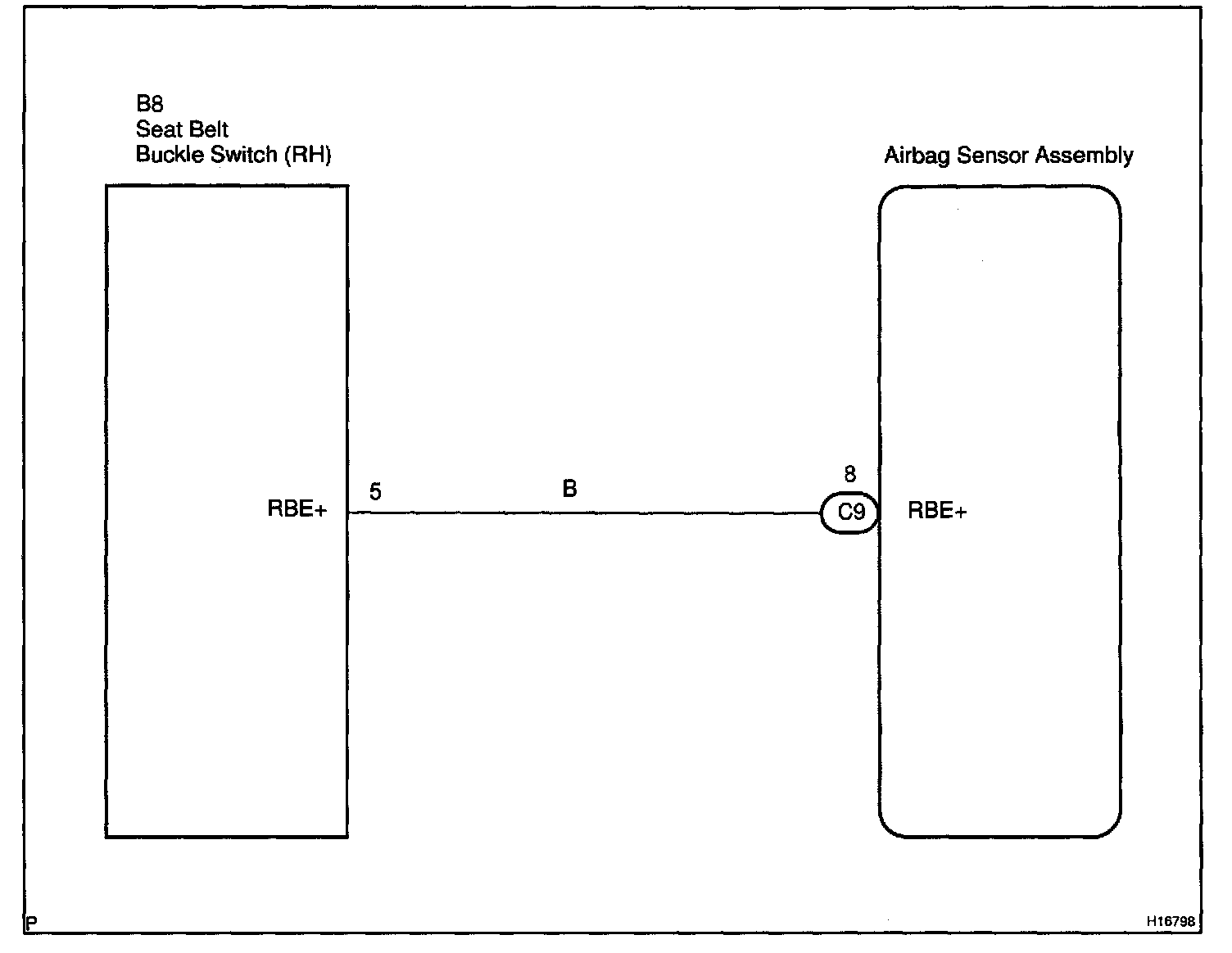

Wiring Diagram:

Step 1 - 3:

Step 4 - 5:

Step 6:

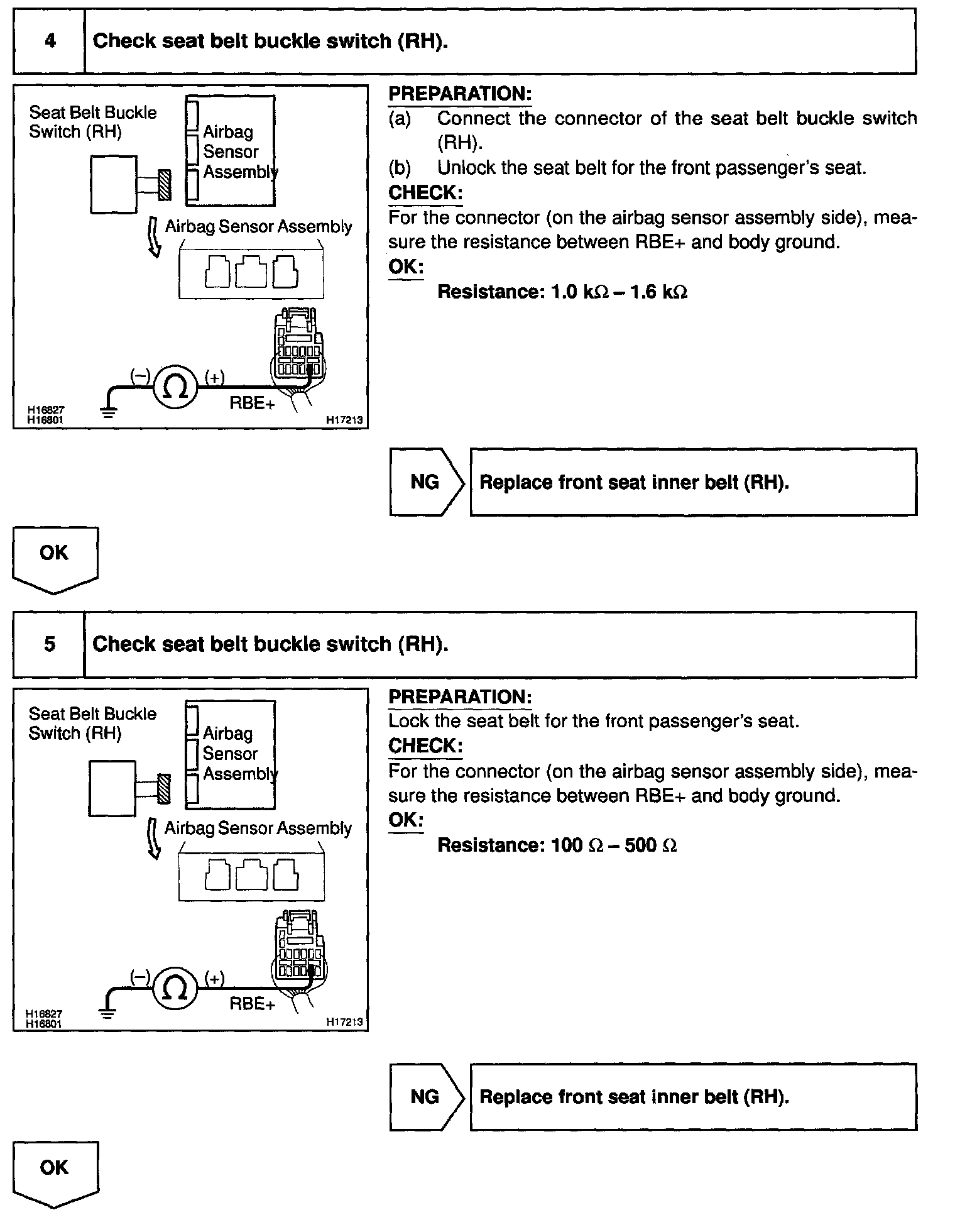

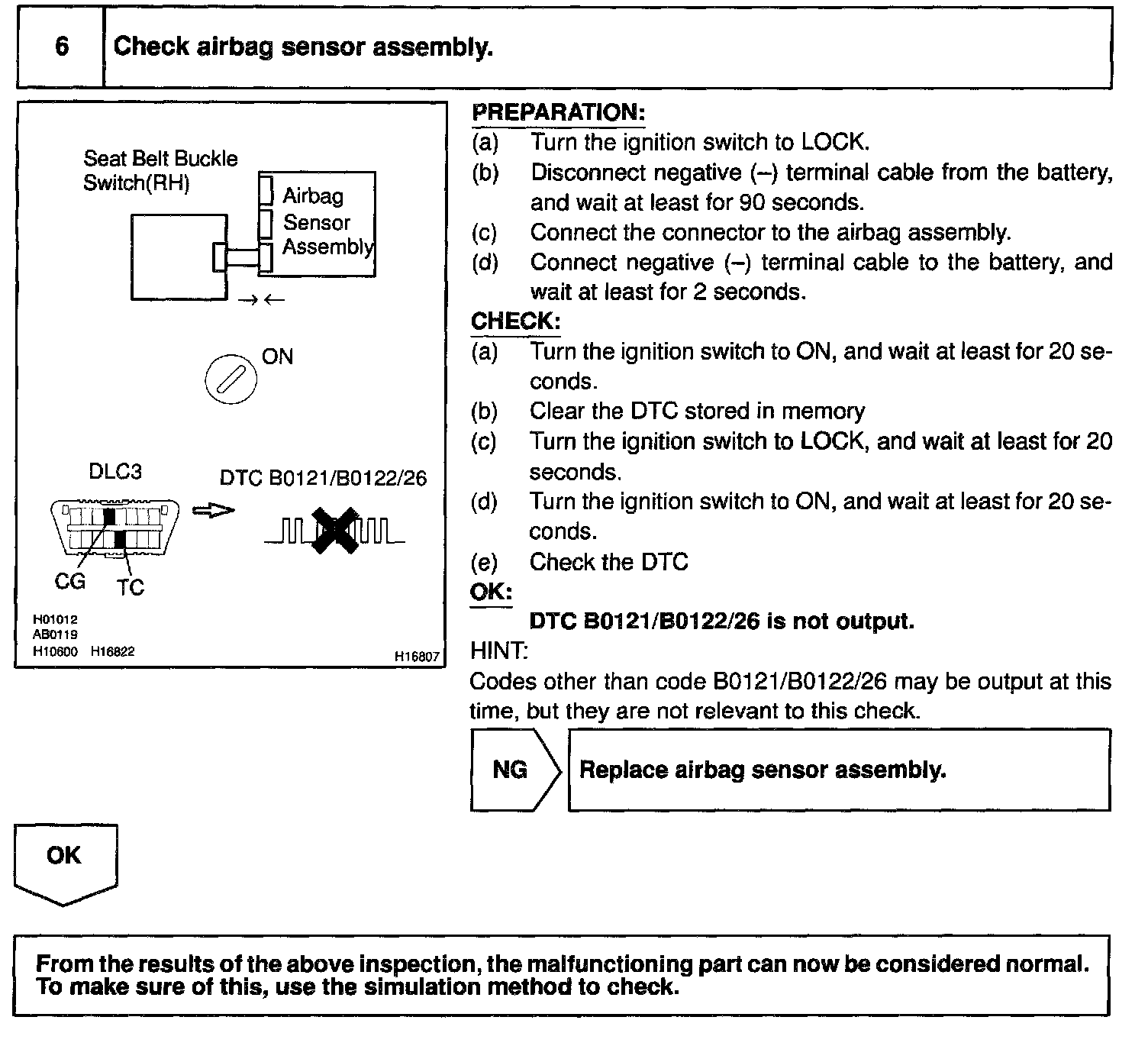

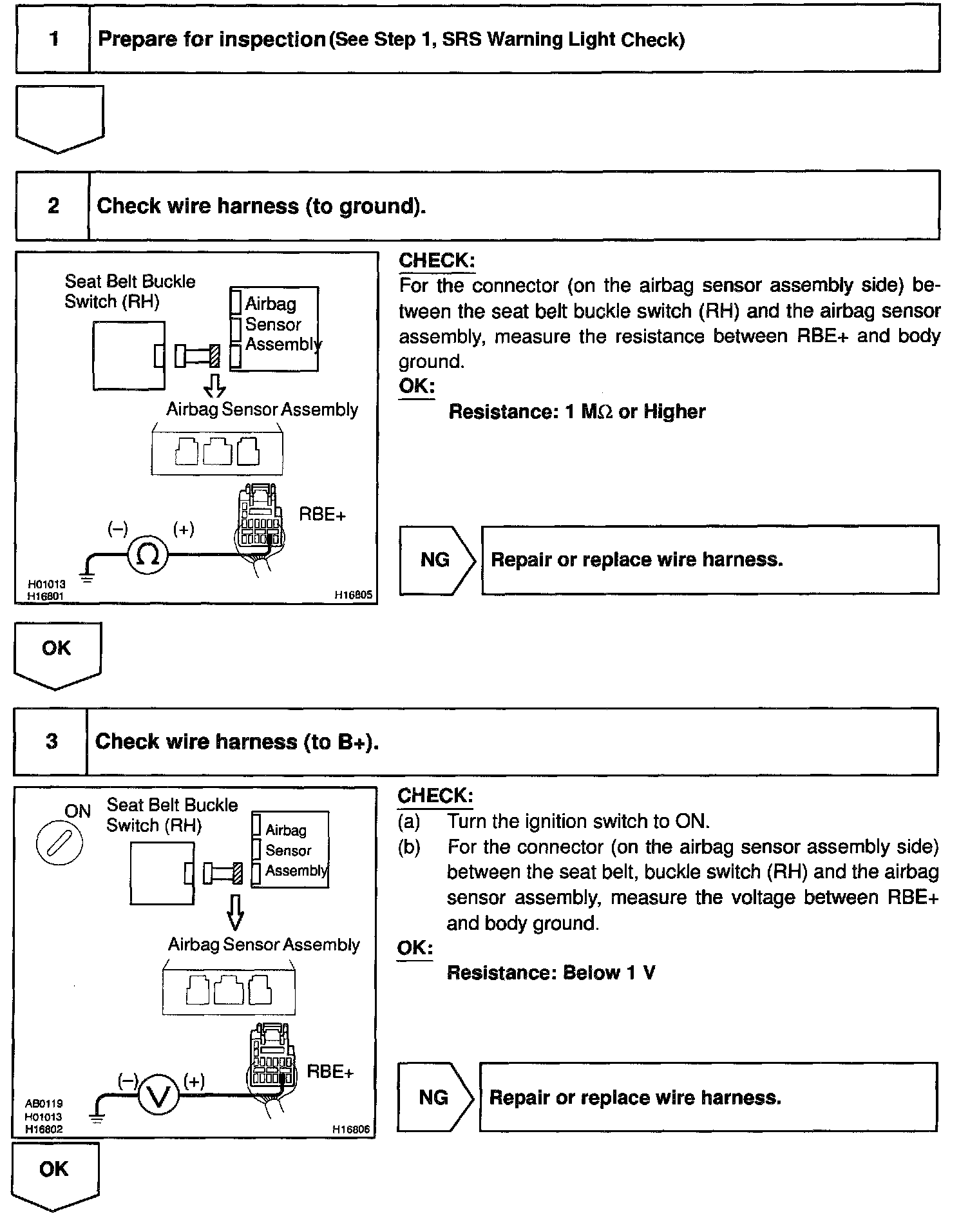

INSPECTION PROCEDURE
