B0101

CIRCUIT DESCRIPTION

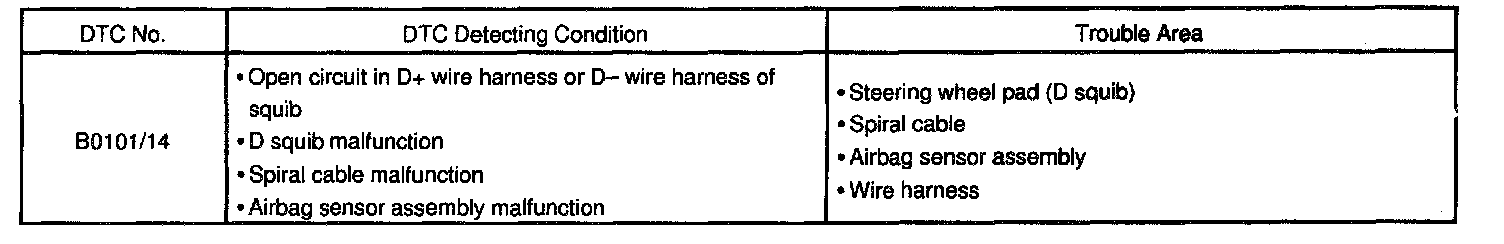

DTC Detecting Condition:

The D squib circuit consists of the airbag sensor assembly, spiral cable and steering wheel pad.

It causes the airbag to deploy when the airbag deployment conditions are satisfied.

For details of the function of each component, see DESCRIPTION AND OPERATION.

DTC B0101/14 is recorded when an open is detected in the D squib circuit.

Wiring Diagram:

Step 1 - 2:

Step 3:

Step 4:

Step 5 - 6:

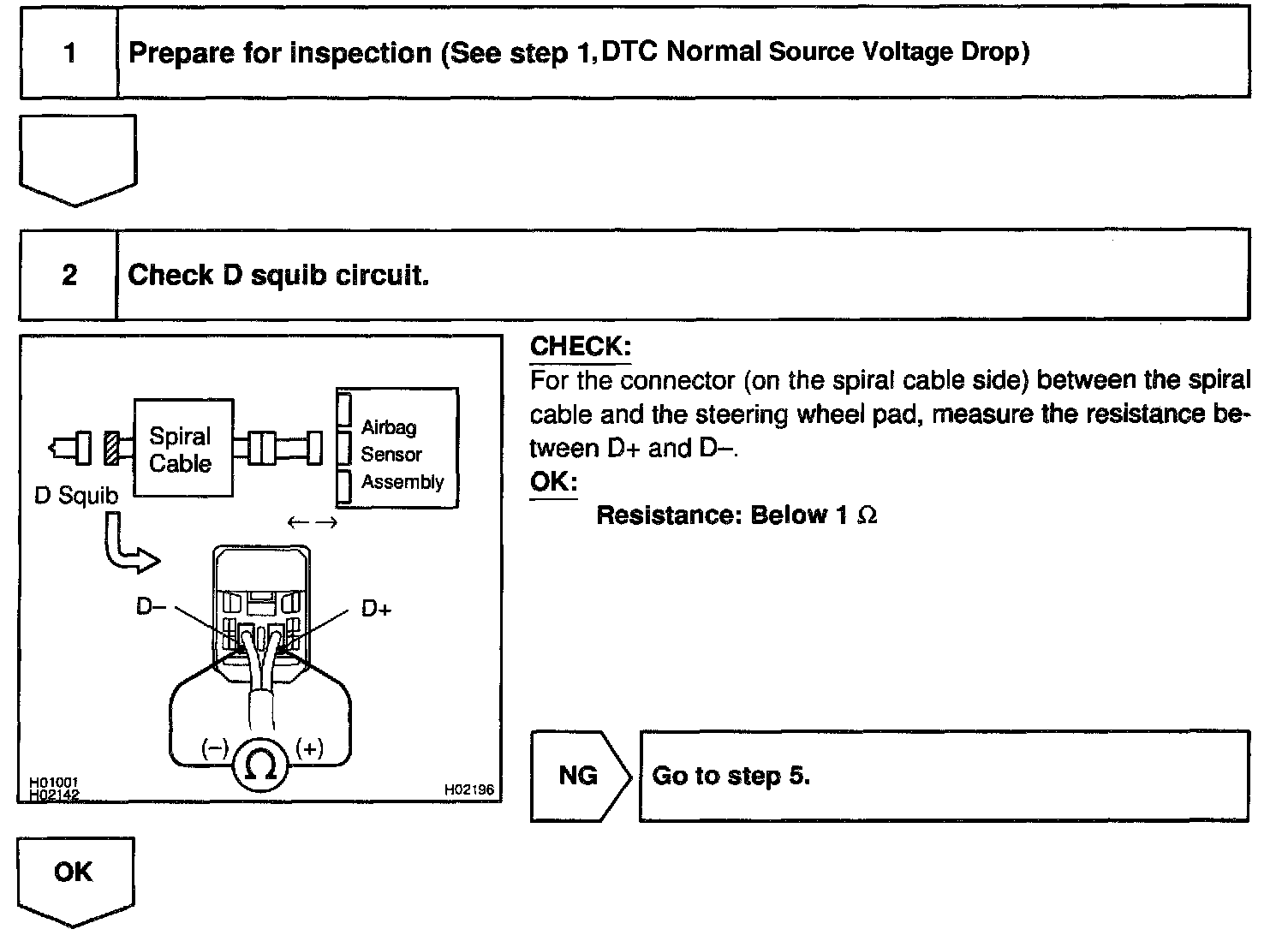

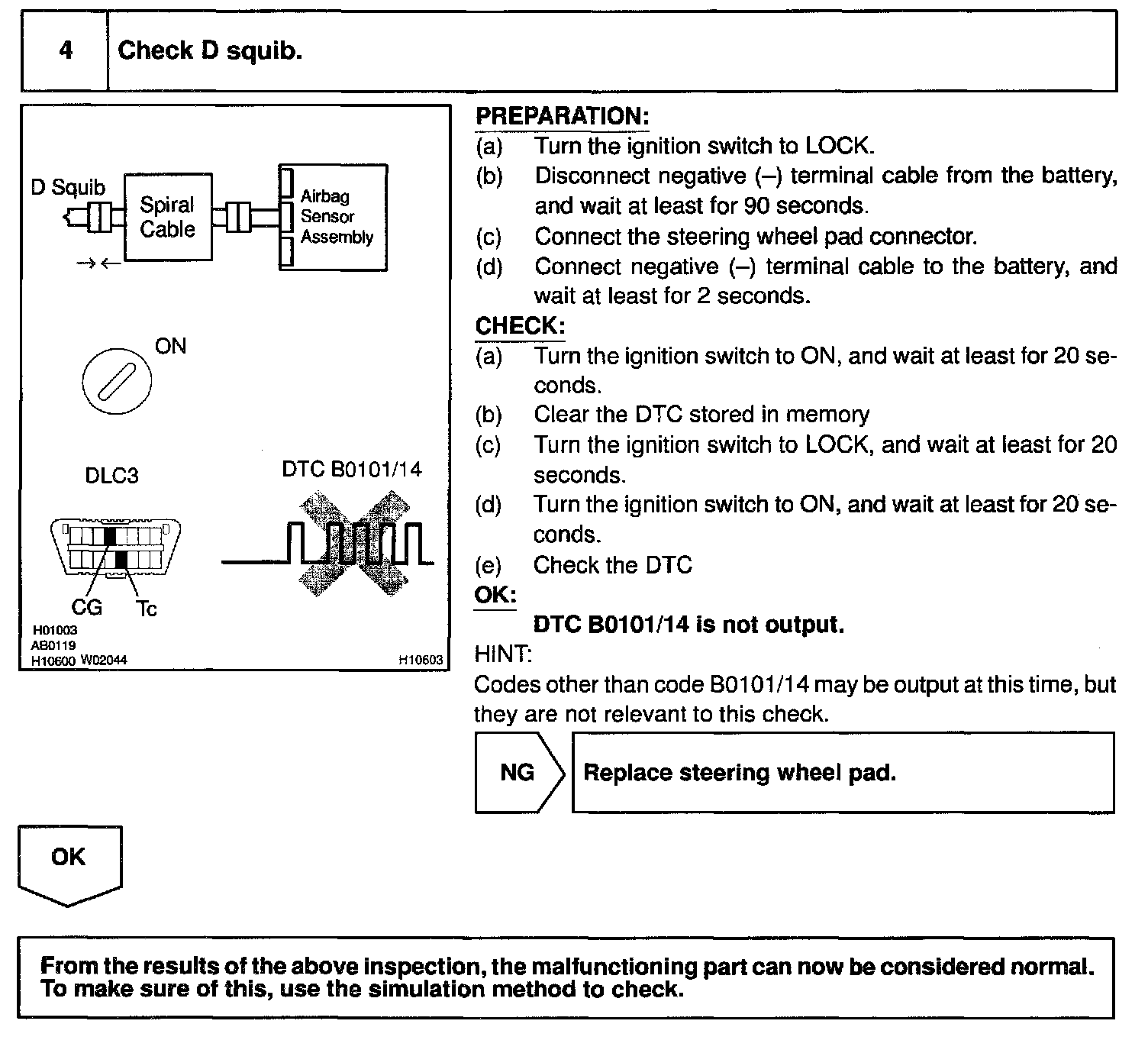

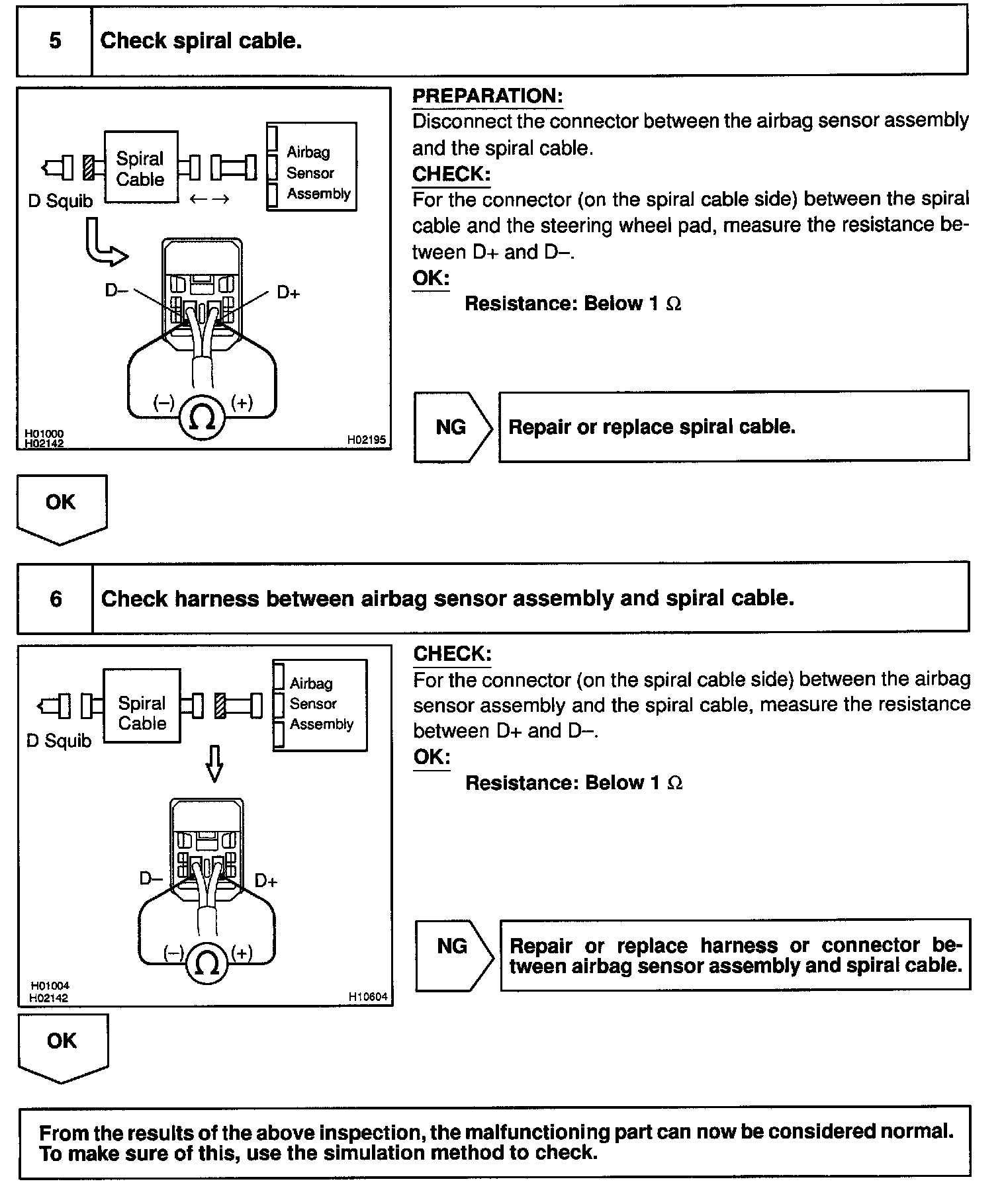

INSPECTION PROCEDURE
