On-Vehicle Inspection

ON-VEHICLE INSPECTION




1. INSPECT REAR SUN SHADE SYSTEM OPERATION




2. INSPECT REAR SUN SHADE RELAY
a. Disconnect the sun shade relay connector.

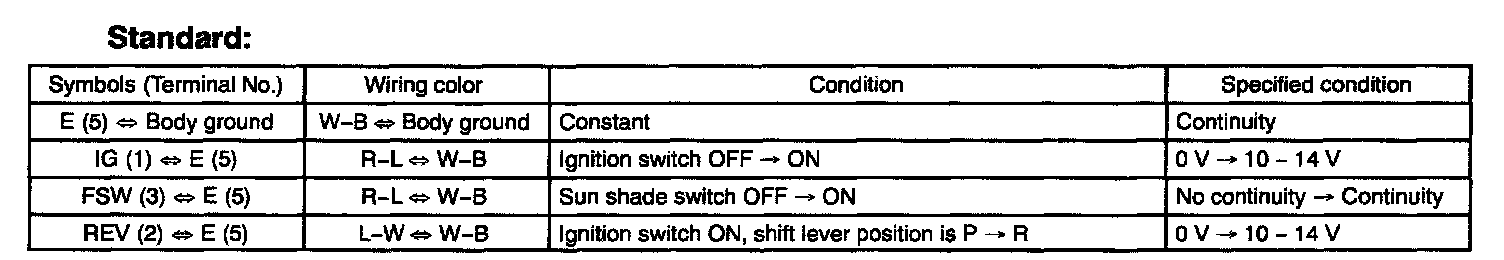

b. Check the voltage and continuity between the connector terminals.




If the value is not as specified, check and replace the wire harness side.
