Drive Shaft - Tool: Nut Chisel

SPECIAL SERVICE TOOLS
SS001-02

March 1, 2002

Title:

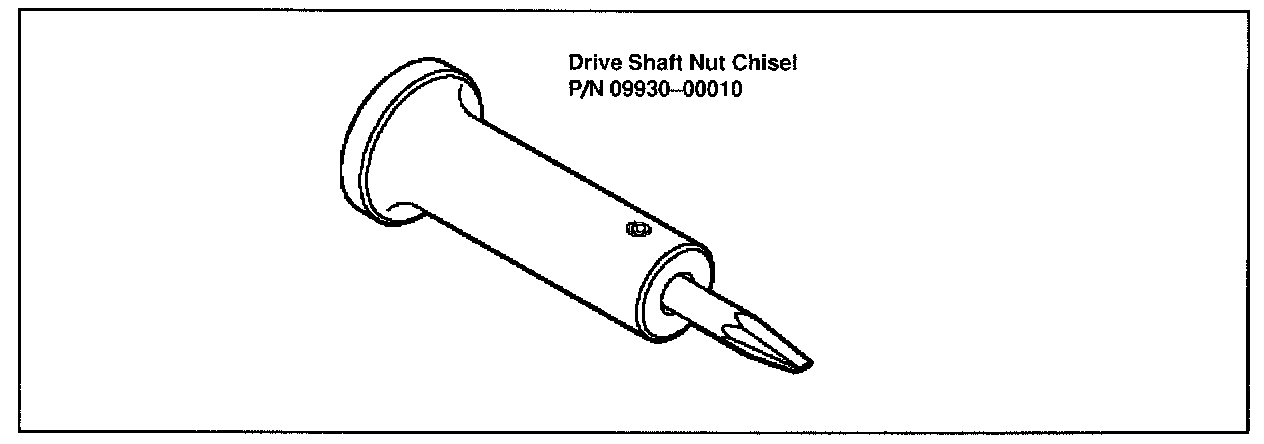

DRIVE SHAFT NUT CHISEL

Models:
'02 ES 300 & SC 430

Introduction





The function of the Drive Shaft Nut Chisel is to properly bend the detented portion of a locking nut out of the way of shaft threads for removal of the nut. This is important to eliminate the possibility of thread damage during nut removal. After nut installation, the tool can also be used to stake the locking nut.

Applicable Vehicles
^ 2002 model year ES 300 and SC 430 vehicles.

Application Procedure

Procedures for this application will be listed in applicable Repair Manual sections.

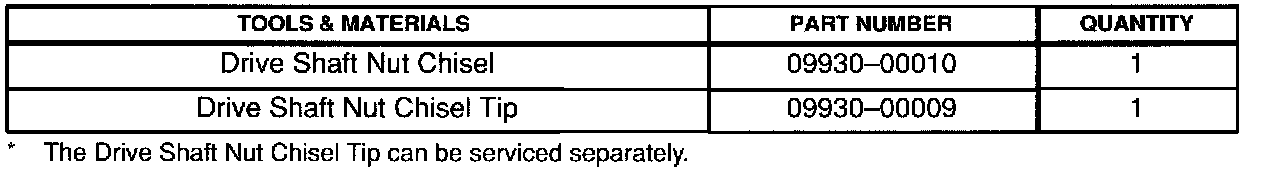

Required Tools & Material





Warranty Information
