On-Vehicle Service
REPLACEMENT1. REMOVE ENGINE UNDER COVER NO. 2
2. DRAIN AUTOMATIC TRANSAXLE FLUID
a. Remove the drain plug and gasket, and drain ATF.
b. Install a new gasket and drain plug.
Torque: 49 Nm (500 kgf-cm, 36 ft. lbs.)
3. REMOVE AUTOMATIC TRANSAXLE OIL PAN SUB-ASSY

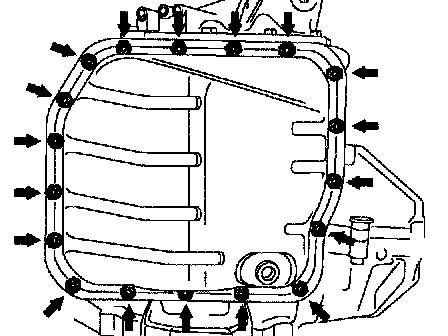

a. Remove the 18 bolts, oil pan and gasket.
NOTICE: Some fluid will remain in the oil pan. Remove all pan bolts, and carefully remove the oil pan assembly.
b. Remove the 3 magnets from the oil pan.
c. Examine particles in pan.
1. Remove the magnets and use them to collect any steel chips. Look carefully at the chips and particles in the pan and the magnet to anticipate the type of wear you will find in the transaxle.
Steel (magnetic) bearing, gear and plate wear
Brass (non-magnetic) bearing wear
4. DISCONNECT TRANSMISSION WIRE
a. Disconnect the 7 shift solenoid valve connectors.
b. Remove the bolt and lock plate, and disconnect the ATF temperature sensor.
5. REMOVE VALVE BODY OIL STRAINER ASSY
a. Remove the 3 bolts and oil strainer.
NOTICE: Be careful that some fluid will come out of the oil strainer.
b. Remove the O-ring from the oil strainer.
6. REMOVE TRANSMISSION VALVE BODY ASSY

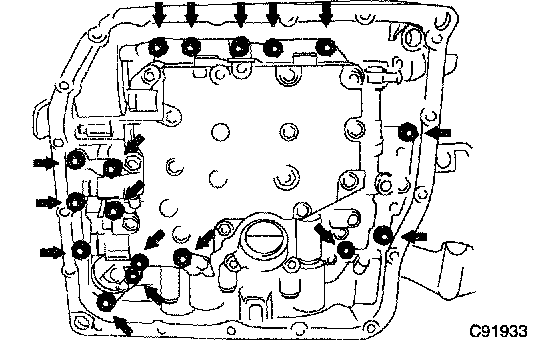

a. Support the valve body assembly and remove the 17 bolts and the valve body assembly.

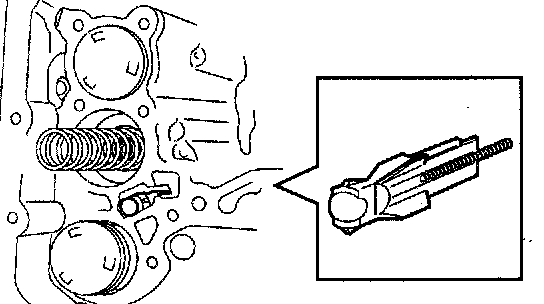

NOTICE: Be careful not to drop the check valve body, spring and accumulator piston.
b. Remove the check ball body and spring.
c. Remove the 6 bolts and 7 shift solenoid valves
7. INSTALL TRANSMISSION VALVE BODY ASSY
a. Install the spring and check ball body.
b. Install the 7 shift solenoid valves with the 6 bolts.
Torque:
Bolt A, B, C: 10.8 Nm (110 kgf-cm, 8 ft. lbs.)
Bolt D: 6.6 Nm (67 kgf-cm, 58 inch lbs.)
Bolt length:
Bolt A: 16 mm (0.63 inch)
Bolt B, C: 57 mm (2.2 inch)
Bolt D: 12 mm (0.47 inch)
c. Align the groove of the manual valve with the pin of lever.
d. Install the 17 bolts.
Torque: 10.8 Nm (110 kgf-cm, 8 ft. lbs.)
NOTICE:
^ Push the valve body against the accumulator piston spring and the check ball body to install it.
^ Tighten those bolts marked by * in the illustration first temporarily because they are positioning bolts.
Bolt length:
Bolt A: 25 mm (0.984 inch)
Bolt B: 57 mm (2.244 inch)
Bolt C: 41 mm (1.614 inch)
8. INSTALL VALVE BODY OIL STRAINER ASSY
a. Coat a new O-ring with ATF.
b. Install the O-ring to the oil strainer
c. Install the oil strainer with the 3 bolts
Torque: 10.8 Nm (110 kgf-cm, 8 ft. lbs.)
9. CONNECT TRANSMISSION WIRE
a. Coat an O-ring with ATF.
b. Install the ATF temperature sensor with the lock plate and bolt.
Torque: 6.6 Nm (67 kgf-cm, 58 inch lbs.)
c. Connect the 7 shift solenoid valve connectors.
10. INSTALL AUTOMATIC TRANSAXLE OIL PAN SUB-ASSY
a. Install the 3 magnets in the oil pan.
b. Apply seal packing or equivalent to 18 bolts.
Seal packing: THREE BOND 2430 or equivalent
c. Install a new gasket, oil pan and 18 bolts to the transaxle case.
Torque: 7.8 Nm (80 kgf-cm, 69 inch lbs.)
NOTICE: Because the bolts should be seal bolts, apply seal packing to bolts and tighten them within 10 minutes after application.
11. ADD AUTOMATIC TRANSAXLE FLUID
12. INSPECT AUTOMATIC TRANSAXLE FLUID
13. INSTALL ENGINE UNDER COVER NO. 2 FRONT DIFFERENTIAL OIL SEAL REPLACEMENT
1. REMOVE FRONT WHEEL
2. REMOVE ENGINE UNDER COVER NO. 1
3. DRAIN AUTOMATIC TRANSAXLE FLUID
a. Remove the drain plug, gasket and drain ATF.
b. Install a new gasket and drain plug.
Torque: 49 Nm (500 kgf-cm, 36 ft. lbs.)
4. REMOVE FRONT DRIVE SHAFT ASSY RH
5. REMOVE FRONT DRIVE SHAFT ASSY LH
6. REMOVE TRANSAXLE HOUSING OIL SEAL
a. Using SST, pull out the oil seal.
SST 09308-00010
7. REMOVE DIFFERENTIAL SIDE BEARING RETAINER OIL SEAL
a. Using SST, pull out the oil seal.
SST 09308-00010
8. INSTALL TRANSAXLE HOUSING OIL SEAL
a. Using SST and a hammer, drive in a new oil seal.
SST 09316-60011 (09316-00011)
Oil seal drive in depth: 0 - 0.5 mm (0 - 0.020 inch)
b. Coat the lip of the oil seal with MP grease.
9. INSTALL DIFFERENTIAL SIDE BEARING RETAINER OIL SEAL
a. Using SST and a hammer, drive in a new oil seal.
SST 09223-15020, 09950-70010 (09951-07150)
Oil seal drive in depth: 0 - 0.5 mm (0 - 0.020 inch)
b. Coat the lip of the oil seal with MP grease.
10. INSTALL FRONT DRIVE SHAFT ASSY LH
11. INSTALL FRONT DRIVE SHAFT ASSY RH
12. INSTALL FRONT WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
13. ADD AUTOMATIC TRANSAXLE FLUID
14. INSPECT AUTOMATIC TRANSAXLE FLUID
15. CHECK ABS SPEED SENSOR SIGNAL
