Manual Shifting Test

MANUAL SHIFTING TEST






HINT: With this test, it can be determined whether the trouble occurs in the electrical circuit or is a mechanical problem in the transaxle.

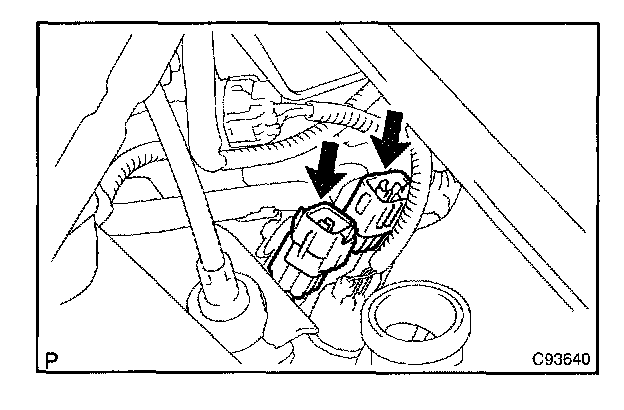

a. Disconnect 2 connectors of transmission wire.

b. Inspect the manual driving operation.




Check that the shift and gear positions correspond with the table.
While driving, shift through the L, 2, 3, 4 and D positions. Check that the gear change corresponds to the shift position.

HINT: If the L, 2, 3, 4 and D position gear positions are difficult to distinguish, do the read test.

If any abnormalities are found in the above test, the problem is in the transaxle itself.

c. Connect 2 connectors of transmission wire.

d. Clear the DTC.
