Floor Shift Transmission Control Cable Replacement
REPLACEMENT1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY
2. REMOVE AIR CONDITIONING RADIATOR ASSY
3. REMOVE AIR BAG SENSOR ASSY CENTER
4. REMOVE BATTERY
5. REMOVE AIR CLEANER ASSY
6. REMOVE AIR CLEANER HOSE NO. 1
7. REMOVE INTAKE AIR RESONATOR SUB-ASSY
8. REMOVE FLOOR SHIFT TRANSMISSION CONTROL CABLE ASSY

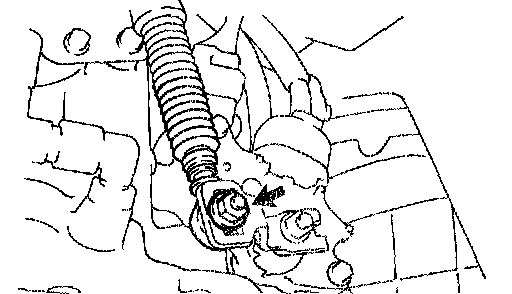

a. Remove the nut from the control shaft lever.
b. Disconnect the control cable from the control shaft lever.

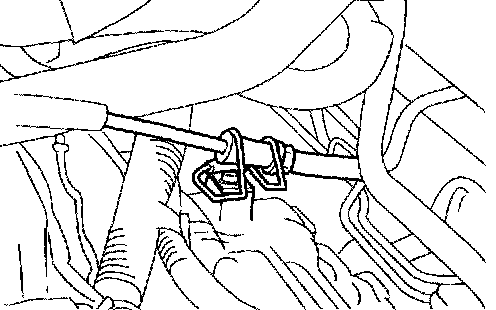

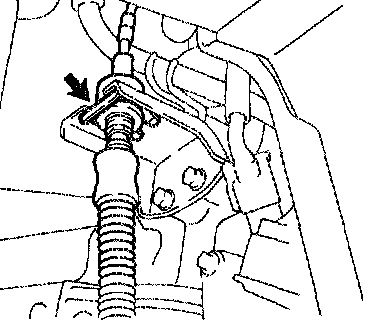

c. Remove the clip and disconnect the control cable from the control cable bracket.
d. Disconnect the control cable from the control cable clamp.

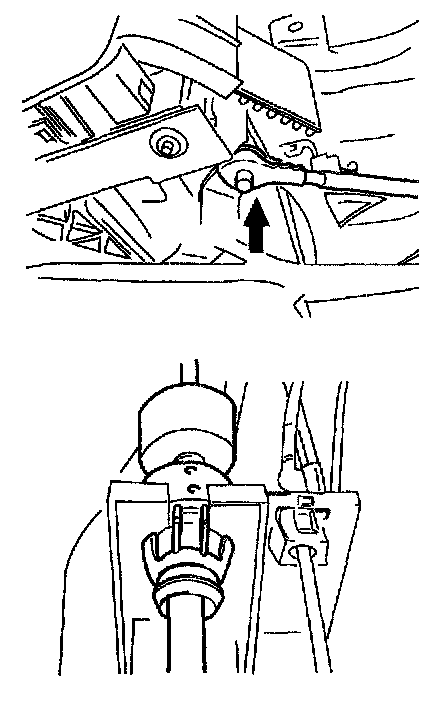

e. Disconnect the floor shift cable from the rod of the floor shift assembly.
f. Remove the 2 bolts and shift cable grommet retainer No. 2.
g. Pull out the control cable from the body.
9. INSTALL FLOOR SHIFT TRANSMISSION CONTROL CABLE ASSY
a. put in the control cable to the body.
b. Install the shift cable grommet retainer No. 2 to the floor shift cable.
c. Install the floor shift cable, as shown in the illustration.
HINT: Install it with the uneven surface facing up.
d. Install the shift cable grommet retainer No. 2 with the 2 bolts.
Torque: 4.9 Nm (50 kgf-cm, 43 inch lbs.)
e. Connect the control cable to the control cable clamp.
f. Temporarily install the control cable to the control shaft lever with nuts.

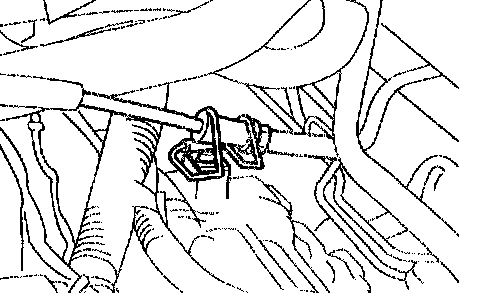

g. Install the control cable and a new clip to the bracket.
10. INSTALL INTAKE AIR RESONATOR SUB-ASSY
11. INSTALL AIR CLEANER HOSE NO. 1
12. INSTALL AIR CLEANER ASSY
13. INSTALL AIR BAG SENSOR ASSY CENTER
14. INSTALL AIR CONDITIONING RADIATOR ASSY
15. INSTALL INSTRUMENT PANEL SAFETY PAD SU-ASSY
16. INSTALL BATTERY
17. ADJUST SHIFT LEVER POSITION
18. INSPECT SHIFT LEVER POSITION
