Floor Shift Parking Lock Cable Replacement
REPLACEMENT1. REMOVE FRONT DOOR SCUFF PLATE LH
2. REMOVE FRONT DOOR SCUFF PLATE RH
3. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO. 1
4. REMOVE INSTRUMENT PANEL SUB-ASSY LOWER
5. REMOVE INSTRUMENT PANEL SUB-ASSY UPPER
6. REMOVE INSTRUMENT PANEL INSERT SUB-ASSY LOWER LH
7. REMOVE CONSOLE PANEL UPPER REAR
8. REMOVE CONSOLE BOX CARPET
9. REMOVE CONSOLE BOX ASSY
10. REMOVE INSTRUMENT PANEL FINISH PANEL END LH
11. REMOVE INSTRUMENT PANEL FINISH PANEL END RH
12. REMOVE AIR DUCT REAR NO. 1
13. REMOVE AIR DUCT REAR NO. 2
14. REMOVE CONSOLE BOX DUCT NO. 1
15. REMOVE FLOOR SHIFT PARKING LOCK CABLE ASSY

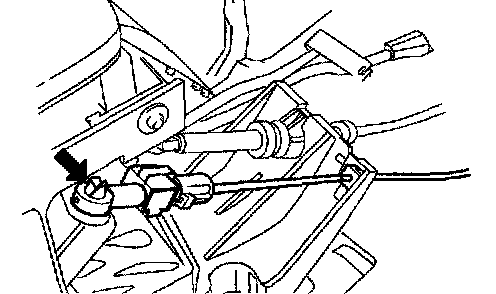

a. Disconnect the parking lock cable end from the lever pin of the floor shift assembly.
b. Using a screwdriver, disconnect the parking lock cable from the floor shift assembly and clamp.
c. Disconnect the cable clamp.
d. Turn the ignition switch to ACC or ON.

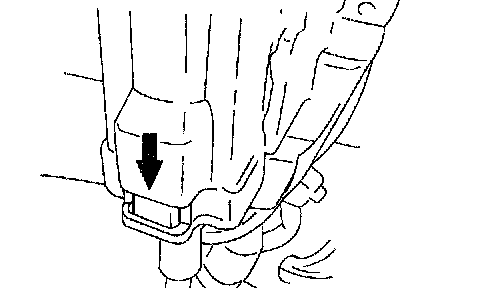

e. Using a screwdriver, remove the cable from the upper bracket.
16. INSTALL FLOOR SHIFT PARKING LOCK CABLE ASSY
a. Turn the ignition switch to ACC or ON.
b. Connect the cable to the upper bracket.
c. Connect the cable clamp.
d. Shift the shift lever to P range and turn the ignition switch to LOCK.

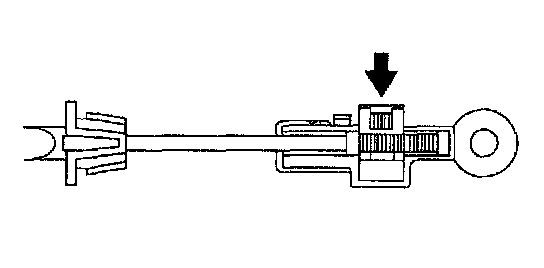

e. Using a screwdriver, unlock the claw of the lock key of automatic adjustment part.
f. Insert the slide cap into the through hole and install.
g. Insert the lever pin into the hole of the parking lock cable.
h. Lock the lock key.
17. INSPECT CHECK KEY INTERLOCK OPERATION
18. INSTALL CONSOLE BOX DUCT NO. 1
19. INSTALL AIR DUCT REAR NO. 2
20. INSTALL AIR DUCT REAR NO. 1
21. INSTALL INSTRUMENT PANEL FINISH PANEL END RH
22. INSTALL INSTRUMENT PANEL FINISH PANEL END LH
23. INSTALL CONSOLE BOX ASSY
24. INSTALL CONSOLE BOX CARPET
25. INSTALL CONSOLE PANEL UPPER REAR
26. INSTALL INSTRUMENT PANEL INSERT SUB-ASSY LOWER LH
27. INSTALL INSTRUMENT PANEL SUB-ASSY UPPER
28. INSTALL INSTRUMENT PANEL SUB-ASSY LOWER
29. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSY NO. 1
30. INSTALL FRONT DOOR SCUFF PLATE RH
31. INSTALL FRONT DOOR SCUFF PLATE LH
