Transmission Valve Body

OVERHAUL

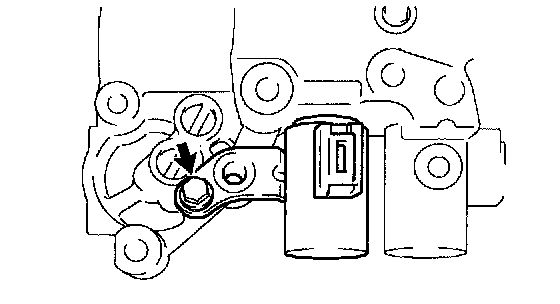

1. REMOVE SHIFT SOLENOID VALVE SL3
a. Remove the bolt and shift solenoid valve SL3 from the valve body assy.

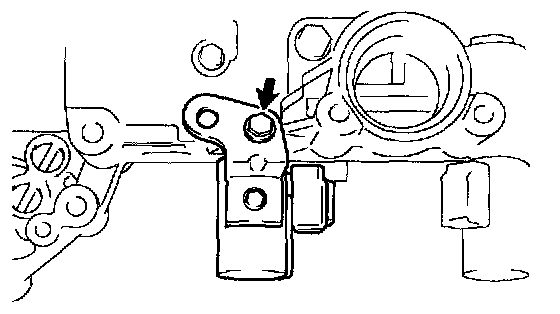

2. REMOVE SHIFT SOLENOID VALVE S4
a. Remove the bolt and shift solenoid valve S4 from the valve body assy.

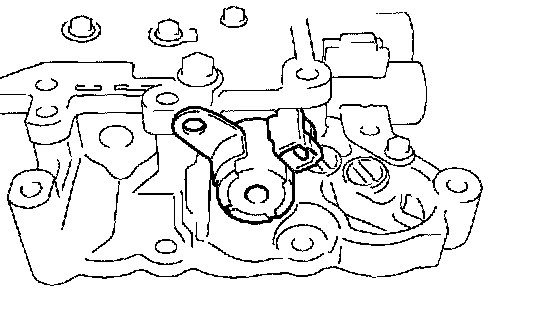

3. REMOVE SHIFT SOLENOID VALVE SR
a. Remove the shift solenoid valve SR from the valve body assy.

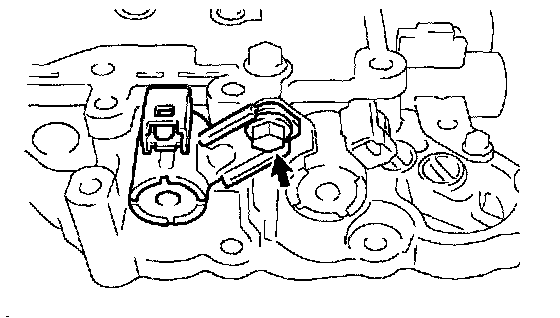

4. REMOVE SHIFT SOLENOID VALVE DSL
a. Remove the bolt and shift solenoid valve DSL from the valve body assy.

5. REMOVE SHIFT SOLENOID VALVE SL2
a. Remove the bolt and shift solenoid valve SL2 from the valve body assy.

6. REMOVE LINE PRESSURE CONTROL SOLENOID ASSY
a. Remove the bolt and shift solenoid valve SLT from the valve body assy.

7. REMOVE SHIFT SOLENOID VALVE SL1
a. Remove the bolt and shift solenoid valve SL1 from the valve body assy.
8. REMOVE MANUAL VALVE
a. Remove the manual valve from the valve body assy.
9. INSTALL MANUAL VALVE
a. Install the manual valve to the valve body assy.

10. INSTALL SHIFT SOLENOID VALVE SL1
a. Install the shift solenoid valve SL1 to the valve body assy with the bolt.
Torque: 6.6 Nm (67 kgf-cm, 58 inch lbs.)

11. INSTALL LINE PRESSURE CONTROL SOLENOID ASSY
a. Install the shift solenoid valve SLT to the valve body assy with the bolt.
Torque: 6.6 Nm (67 kgf-cm, 58 inch lbs.)

12. INSTALL SHIFT SOLENOID VALVE SL2
a. Install the shift solenoid valve SL2 to the valve body assy with the bolt.
Torque: 10.8 Nm (110 kgf-cm, 8 ft. lbs.)

13. INSTALL SHIFT SOLENOID VALVE DSL
a. Install the shift solenoid valve DSL to the valve body assy with the bolt.
Torque: 10.8 Nm (110 kgf-cm, 8 ft. lbs.)

14. INSTALL SHIFT SOLENOID VALVE SR
a. Install the shift solenoid valve SR to the valve body assy.

15. INSTALL SHIFT SOLENOID VALVE S4
a. Install the shift solenoid valve S4 to the valve body assy with the bolt.
Torque: 10.8 Nm (110 kgf-cm, 8 ft. lbs.)

16. INSTALL SHIFT SOLENOID VALVE SL3
a. Install the shift solenoid valve SL3 to the valve body assy with the bolt.
Torque: 6.6 Nm (67 kgf-cm, 58 inch lbs.)
