Part 7

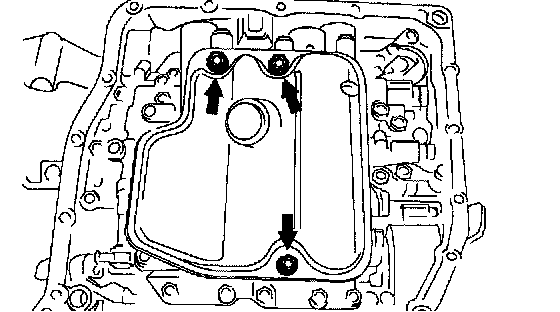

OVERHAUL151. INSTALL VALVE BODY OIL STRAINER ASSY

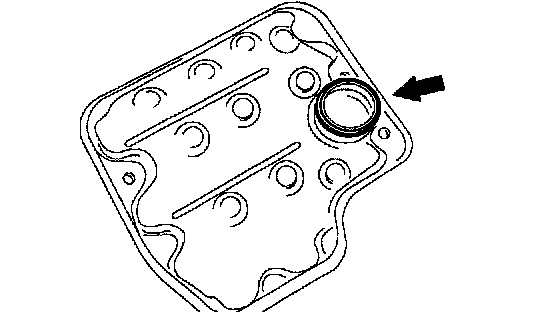

a. Coat a new O-ring with ATF, install it to the oil strainer.
b. Install the oil strainer and 3 bolts to the valve body.
Torque: 10.8 Nm (110 kgf-cm, 8 ft. lbs.)
152. INSTALL AUTOMATIC TRANSAXLE OIL PAN SUB-ASSY

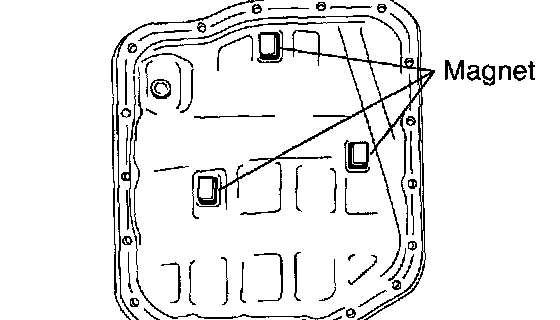

a. Install the 3 magnets in the oil pan.
b. Apply seal packing or equivalent to new 18 bolts.
Seal packing: THREE BOND 2430 or equivalent

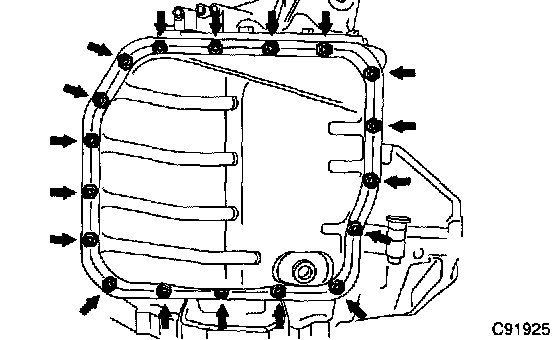

c. Install the oil with the 18 bolts to the transaxle case.
Torque: 7.8 Nm (80 kgf-cm, 69 inch lbs.)
NOTICE: Because the bolts should be seal bolts, apply seal packing to new bolts and tighten them within 10 minutes after application.
153. INSTALL TRANSAXLE CASE NO.1 PLUG
a. Coat the 4 new O-rings with ATF, install them to the 4 transaxle case No. 1 plugs.
b. Install the 4 transaxle case No. 1 plugs to the transaxle case.
Torque: 7.4 Nm (75 kgf-cm, 65 inch lbs.)

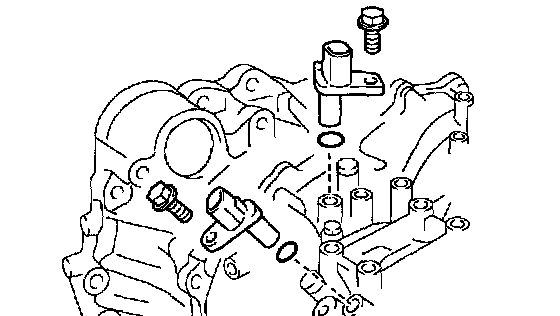

154. INSTALL SPEED SENSOR (AISIN-MADE)
a. Coat the 2 new O-rings with ATF, install them to the 2 sensors.
b. Install the 2 sensors to the transaxle case with the 2 bolts.
Torque: 11.3 Nm (115 kgf-cm, 8 ft. lbs.)
155. INSTALL SPEED SENSOR (TMC-MADE)
a. Coat the 2 new O-rings with ATF, install them to the 2 sensors.
b. Install the 2 sensors to the transaxle case with the 2 bolts.
Torque: 11.3 Nm (115 kgf-cm, 8 ft. lbs.)

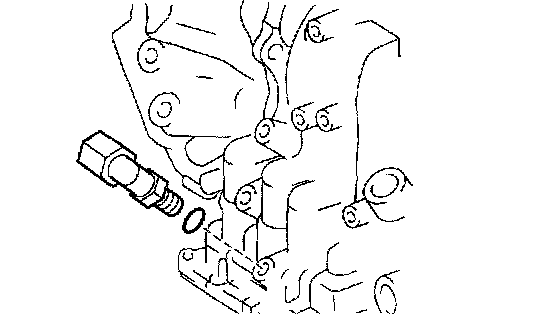

156. INSTALL OIL COOLER TUBE UNION (OUTLET OIL COOLER UNION)
a. Coat a new O-ring with ATF, install it to the elbow.
b. Install the elbow to the transaxle case.
Torque: 27 Nm (276 kgf-cm, 20 ft. lbs.)
157. INSTALL OIL COOLER TUBE UNION (INLET OIL COOLER UNION)
a. Coat a new O-ring with ATF, install it to the union.
b. Install the union to the transaxle case.
Torque: 27 Nm (276 kgf-cm, 20 ft. lbs.)
158. INSTALL BREATHER PLUG HOSE
159. INSTALL PARK/NEUTRAL POSITION SWITCH ASSY
a. Install the park/neutral position switch onto the manual valve lever shaft and temporarily install the 2 adjusting bolts.
b. Install a new nut stopper and nut.
Torque: 6.9 Nm (70 kgf-cm, 61 inch lbs.)

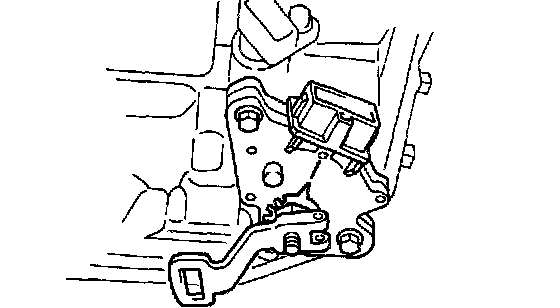

c. Temporarily install control shaft lever.
d. Turn the lever counterclockwise until it stops, and then turn it clockwise 2 notches.
e. Remove the control shaft lever.
f. Align the groove with neutral basic line.
g. Tighten the 2 bolts.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)

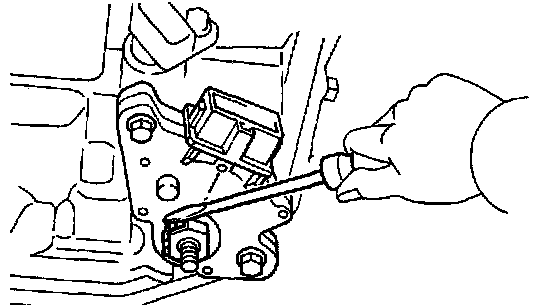

h. Using a screwdriver, stake the nut with the nut stopper.

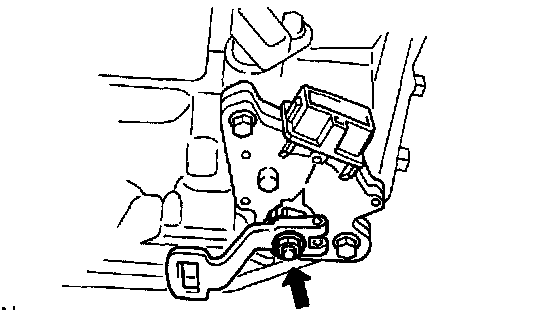

i. Install the control shaft lever, washer and nut.
Torque: 12.7 Nm (130 kgf-cm, 9 ft. lbs.)
160. INSTALL SPEEDOMETER DRIVEN HOLE (ATM) COVER SUB-ASSY
a. Coat a new O-ring with ATF and install it to the speedometer driven hole cover.
b. Install the bolt and speedometer driven hole cover sub-assy to the transaxle assy.
Torque: 6.9 Nm (70 kgf-cm, 61 ft. lbs.)
