Wheel Stud / Lug Nut: Service and Repair
REPLACEMENTHINT:
^ COMPONENTS: See Diagrams; Exploded Views.
^ Replace the RH side by the same procedures with the LH side.
1. REMOVE REAR WHEEL
2. DISCONNECT REAR DISC BRAKE CALIPER ASSY LH
3. REMOVE REAR DISC
4. REMOVE REAR AXLE LH HUB BOLT

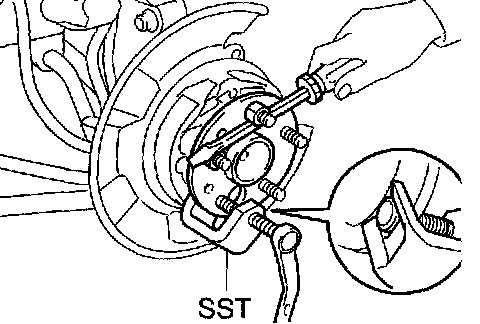

a. Using SST and a screwdriver or an equivalent to hold, remove the rear axle LH hub bolt.
SST 09628-10011
5. INSTALL REAR AXLE LH HUB BOLT

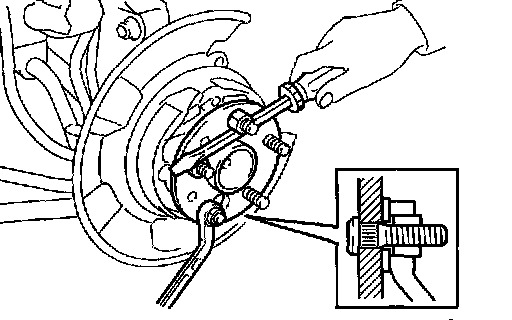

a. Install a washer and nut to a new rear axle LH hub bolt as shown in the illustration.
b. Using a screwdriver to hold, install the rear axle LH hub bolt by torquing the nut.
6. INSTALL REAR DISC
7. INSTALL REAR DISC BRAKE CALIPER ASSY LH
8. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
