Clearing Trouble Codes

NOTE: This is the only information provided by the manufacturer for Clearing Diagnostic Trouble Codes for this system.

Without using hand-held tester
Clear the DTC.




1. Using SST, it connects the terminal Tc and CG of the DLC3.
SST 09843-18040
2. Turn the ignition switch to ON.

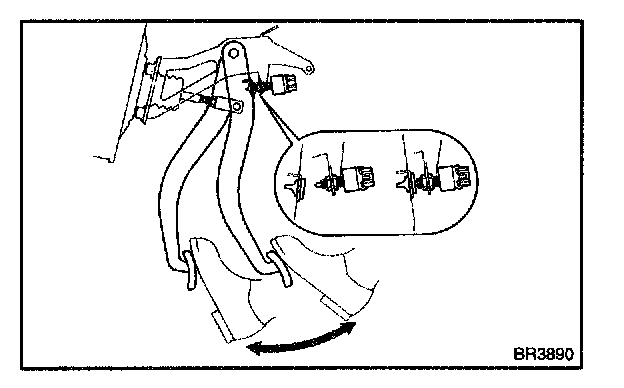

3. Clear DTC stored in ECU by depressing the brake pedal 8 or more times within 5 sec.
4. Check that DTC output the normal code.
5. Remove the SST from the DLC3.
SST 09843-18040

HINT: Disconnecting the battery cable during repairs will not erase the DTC in the ECU.

With hand-held tester
Clear the DTC.

1. Hook up the hand-held tester to the DLC3.
2. Turn the ignition switch to ON.
3. Operate the hand-held tester to erase the codes.

HINT: Please refer to the hand-held tester operator's manual for further details.
