Rear Suspension Arm No.2 LH

REPLACEMENT

HINT:
COMPONENTS: See Diagrams; Exploded Views.

1. REMOVE REAR WHEEL
2. REMOVE EXHAUST PIPE ASSY CENTER
3. REMOVE STABILIZER BAR REAR
4. SEPARATE STRUT ROD ASSY REAR
5. SEPARATE HEIGHT CONTROL SENSOR SUB-ASSY REAR RH
6. SEPARATE REAR SUSPENSION ARM ASSY NO. 2 LH
7. SEPARATE REAR SUSPENSION ARM ASSY NO. 2 RH

HINT: Separate the RH side by the procedures with the LH side.

8. SEPARATE REAR SUSPENSION ARM ASSY NO. 1 LH
9. SEPARATE REAR SUSPENSION ARM ASSY NO. 1 RH

HINT: Separate the RH side by the procedures with the LH side.

10. REMOVE REAR SUSPENSION MEMBER SUB-ASSY
11. REMOVE REAR SUSPENSION ARM ASSY NO. 2 LH

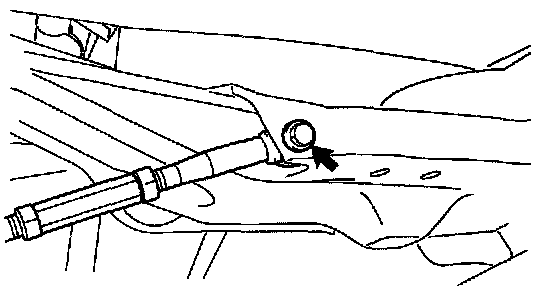

a. Remove the bolt and rear suspension arm No. 2 (inner side).

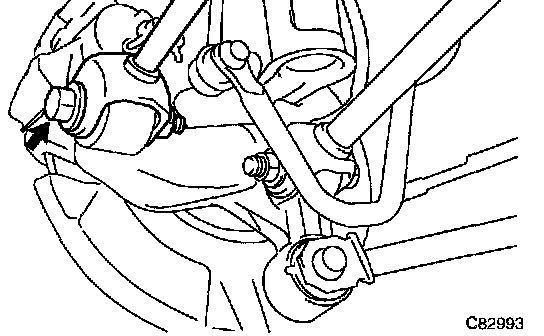

b. Remove the bolt, nut and disconnect the rear suspension arm No. 2 (outer side) from rear axle carrier.

HINT: Keep the nut fixed while loosening and removing the bolt.

12. TEMPORARY TIGHTEN REAR SUSPENSION ARM ASSY NO. 2 LH

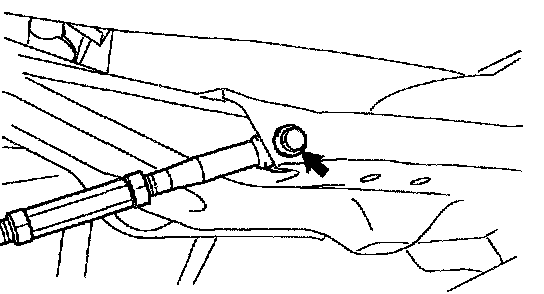

a. Install the rear suspension arm No. 2 (inner side) with the bolt and temporarily tighten the bolt.

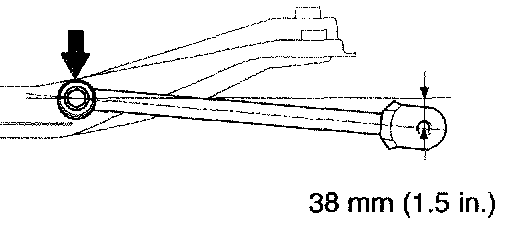

b. Set the suspension arm in the position in the illustration and fully tighten the bolt.
Torque: 100 Nm (1,020 kgf-cm, 74 ft. lbs.)
13. INSTALL REAR SUSPENSION MEMBER SUB-ASSY
14. TEMPORARY TIGHTEN REAR SUSPENSION ARM ASSY NO. 1 LH
15. TEMPORARY TIGHTEN REAR SUSPENSION ARM ASSY NO. 1 RH

HINT: Temporarily tighten the RH side by the procedures with the LH side.

16. TEMPORARY TIGHTEN REAR SUSPENSION ARM ASSY NO. 2 LH
17. TEMPORARY TIGHTEN REAR SUSPENSION ARM ASSY NO. 2 RH

HINT: Temporarily tighten the RH side by the procedures with the LH side.

18. TEMPORARY TIGHTEN STRUT ROD ASSY REAR
19. CONNECT HEIGHT CONTROL SENSOR SUB-ASSY REAR RH
20. STABILIZE SUSPENSION
21. FULLY TIGHTEN REAR SUSPENSION ARM ASSY NO. 1 LH
22. FULLY TIGHTEN REAR SUSPENSION ARM ASSY NO. 1 RH

HINT: Fully tighten the RH side by the procedures with the LH side

23. FULLY TIGHTEN REAR SUSPENSION ARM ASSY NO. 2 LH
24. FULLY TIGHTEN REAR SUSPENSION ARM ASSY NO. 2 RH

HINT: Fully tighten the RH side by the procedures with the LH side.

25. FULLY TIGHTEN STRUT ROD ASSY REAR
26. INSTALL STABILIZER BAR REAR
27. INSTALL EXHAUST PIPE ASSY CENTER
28. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
29. INSPECT REAR WHEEL ALIGNMENT
30. HEADLIGHT AIM ONLY
